cTUVus Level 1 Level 2 Type 1 Portable EV Charger

Release time:2022-12-08Popularity:23

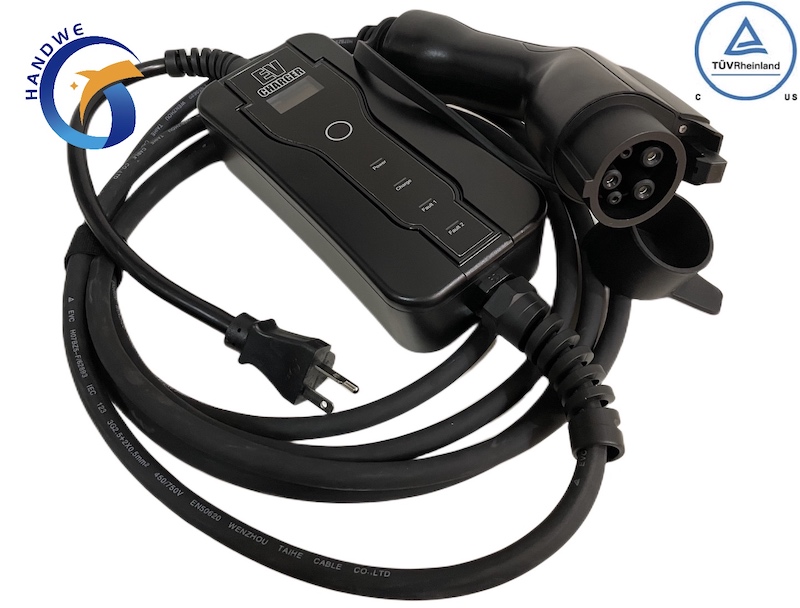

cTUVus Level 1 Level 2 Type 1 Portable EV Charger.jpg

Level 1 Level 2 Type 1 Portable EV Charger Attension:

  • This product is only used for charging electric vehicles.

  • Make sure there is no damage, rust and other abnormal situation before using.

  • Check if there is any foreign matter or rainwater in the connector before use. If there is any, please clean it up before charging.

  • Do not use the charging device when it is damaged.

  • When charging, ensure the ventilation of charging equipment.


Level 1 Level 2 Type 1 Portable EV Charger Warranty:

  • The cable is protected by a manufacturer for 36 months from the date of purchase or delivery, whichever is later.

  • If the cable cannot be used normally due to improper use, installation, illegal operation or natural disaster, it is not covered by the warranty.


Level 1 Level 2 Type 1 Portable EV Charger Safety Precautions:

  • Do not use it outdoors in stormy weather.

  • Do not immerse it in water.

  • Do not roll the cable violently, pull the cable or tie it in knots.

  • Do not place the product next to an object that will generate high temperature while charging.

  • Do not insert your finger into the charging plug

  • Do not attempt to open, repair or modify the cable in any way.


Level 1 Level 2 Type 1 Portable EV Charger Technical Parameters:

Standard IEC 62196-I -2014/UL 2251

Rated voltage 110~250V(1-Phase)

Rated current 16A/32A/40A

Rated power 3.5KW/7KW/9.8KW

Voltage withstand 2500V AC 1min No breakdown

Insulance 1000MΩ

Service life ≥10000 times

Insertion force ≤100N

Lock retention force ≥200N

Vehicle rolling 2 tons of vehicle rolled back and forth more than 3 times

Operation temprature -30℃~+50℃

Ingress Protection IP54/IP55

Temperature rise ≤50K

Shell Engineering plastics

Contacts Copper alloy, silver plated

Seals Green silicone rubber

Cable Specification

1-Phase 16A 3X2.5㎡+2X0.5㎡/3X14AWG+1X18AWG

1-Phase 32A 3X6.0㎡+2X0.5㎡/3X18AWG+1X18AWG

1-Phase 40A 3X9AWG+1X18AWG

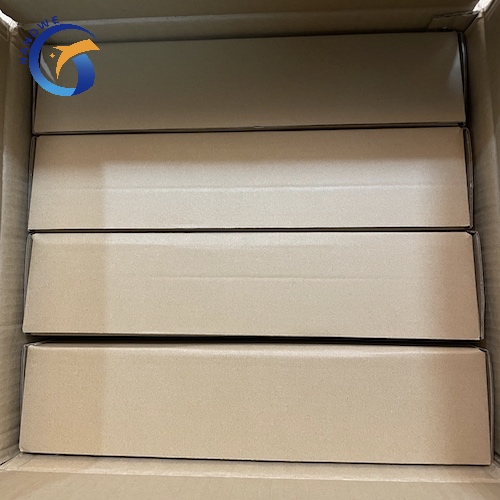

Level 1 Level 2 Type 1 Portable EV Charger Package:

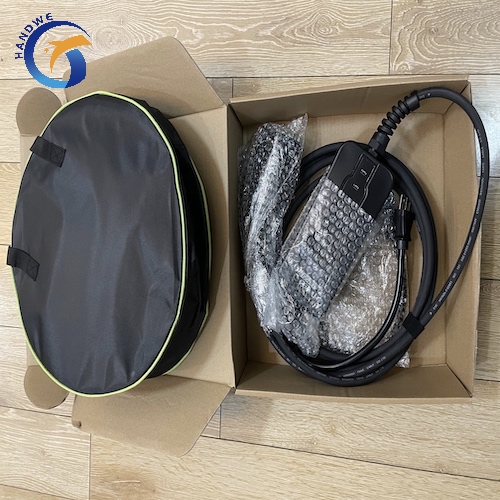

Level 1 Level 2 Type 1 Portable EV Charger package.jpegLevel 1 Level 2 Type 1 Portable EV Charger portable bag.jpeg
