Portable EV Charger 32A 1 Phase 24A 3 Phase with IEC 62196-2 Cable Type 2 Plug item HWPC0224 HWPC0232

Release time:2022-04-15Popularity:668

Three-phase Portable EV charger is mainly used in the European market.

The maximum charging current of the device is 32A (single phase) and 24A (three phase), and the maximum power is 16kW.

Its working voltage ranges from 110V to 400V (±10%).

It's equipped with a touch-sensitive display where the charging parameters can be directly set.

It's equipped with a dedicated multi-function adapter, which is convenient for customers to use in any charging environments.

An electric car with a battery capacity of 80kWh takes about 5-6 hours to be fully charged.

Portable EV Charger 32A 1 Phase 24A 3 Phase with  IEC 62196-2 Cable Type 2 Plug.jpeg

Portable EV Charger 32A 1 Phase 24A 3 Phase with  IEC 62196-2 Cable Type 2 Plug

Products Model: HWPC0224 HWPC0232

  • Plug for 32A :CEE16A/32A/Schuko 16A、UK 13A

  • Plug for 24A :  CEE16A 3 phase/ 32A 3 phase

protection and compatibility.jpg

CORE ADVANTAGE

High compatibility

High speed charging

Equipped Type A+6ma DC filter

Automatically Intelligent Repair

Automatically restart function

Over-temperature protection

Full link temperature control system


EV PLUG

Integrated design

Long working Life

Good conductivity

Self filter the surface impurities

Silver plating design of terminals

Real-time temperature monitoring

Heat Sensor guarantee the charging safety

portable charging box.jpg

BOX BODY

LCD display

IK10 Rugged enclosure

Higher waterproof performance

IP67, rolling-resistance system


TPU CABLE

Comfortable to touch

Durable and preservative

EU standard ,Halogen-free

High and cold temperature resistance

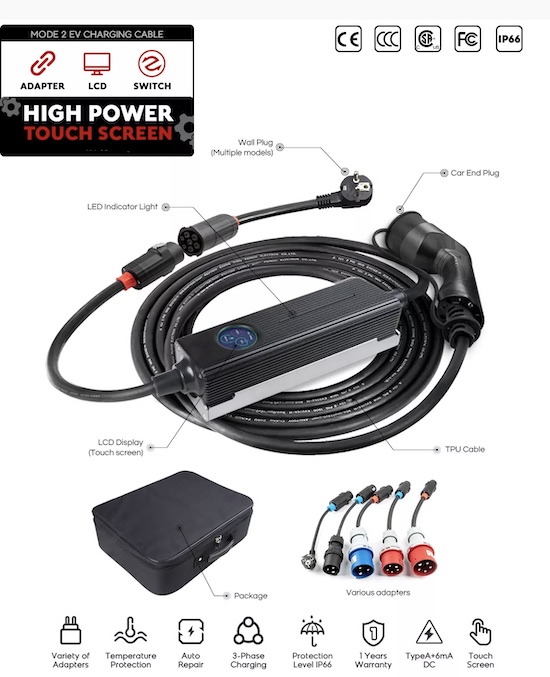

portable charging package.jpg

The product will automatically identify the adapter, limit the maximum charging current, and can automatically select three-phase and single-phase charging modes according to the adapter

  • In the case of single-phase, the maximum charging current is 32A, and the maximum power is 7.2kW

  • In the case of three-phase, the maximum charging current is 24A, and the maximum power is 16kW

  • Equipped with typeA+6mA leakage protector, Automatic temperature monitoring

  • Smart chip to auto-repair faults, Equipped with a full set of adapters

  • convenient for use in various environments, Automatically identify different adapters

  • Touch screen to set charging parameters, Maximum power 16kW

ev charging adapters.jpeg

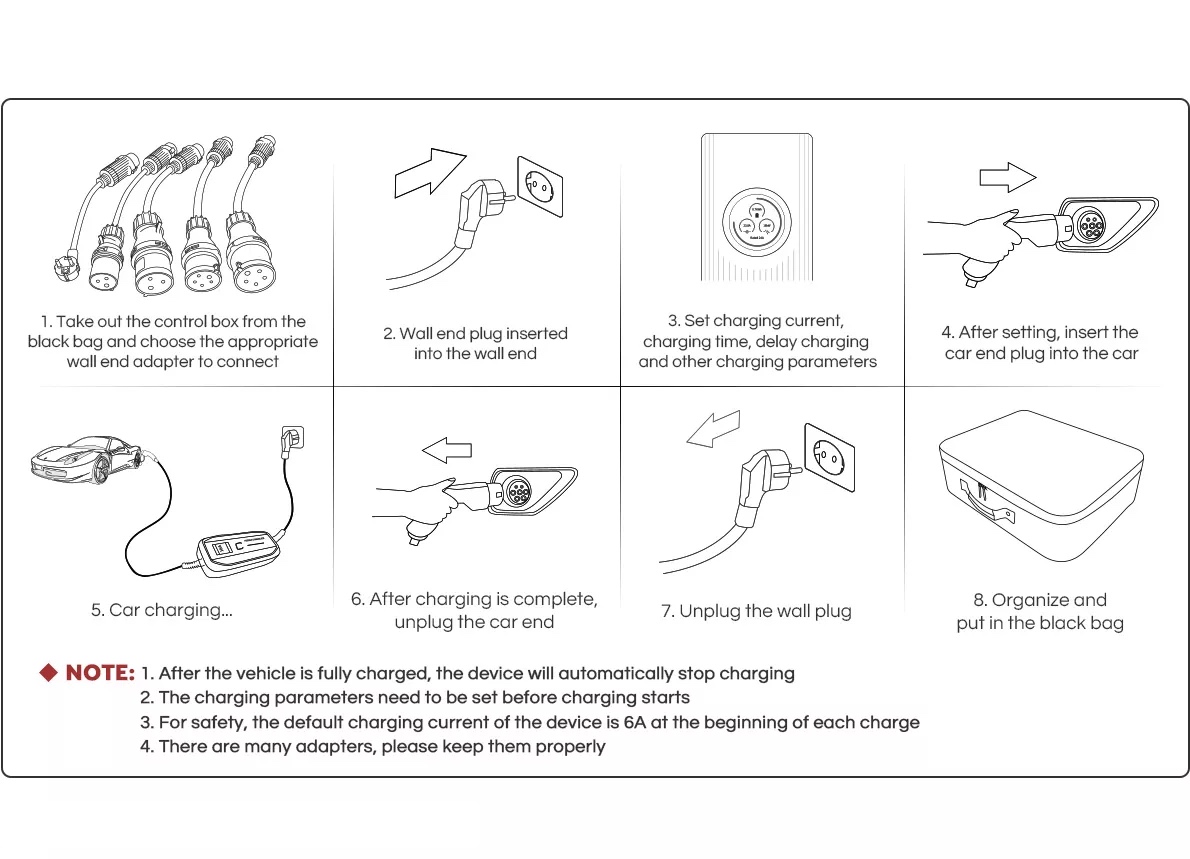

portable ev charging usage.jpg

Electrical Specification

Input/ Output voltage AC 230V/400V

Input/Output Current 1*13A,1*16A,1*32A,3*16A, 3*24A according to socket power

Max. output Power16.5kW

Input Frequency 50Hz

Charging interface type IEC 62196-2


Working Environment

Waterproof Protection Degree IP67

Maximum Altitude <2000m

Environment Temperature -40℃ ~ +70℃

Relative Humidity 5-95% non-condensing

Standby Power Consumption <8W

CoolingNatural air cooling


Function and Accessory

Ethernet/WIFI/4G/Bluetooth No

LCD 1.8-inch color display

RCDType A

LED Indicator lightRolling

Intelligent power adjustment Yes


Certificate

CE,FCC,CCC,CSA,IK10,IP67

portable charging application.jpg

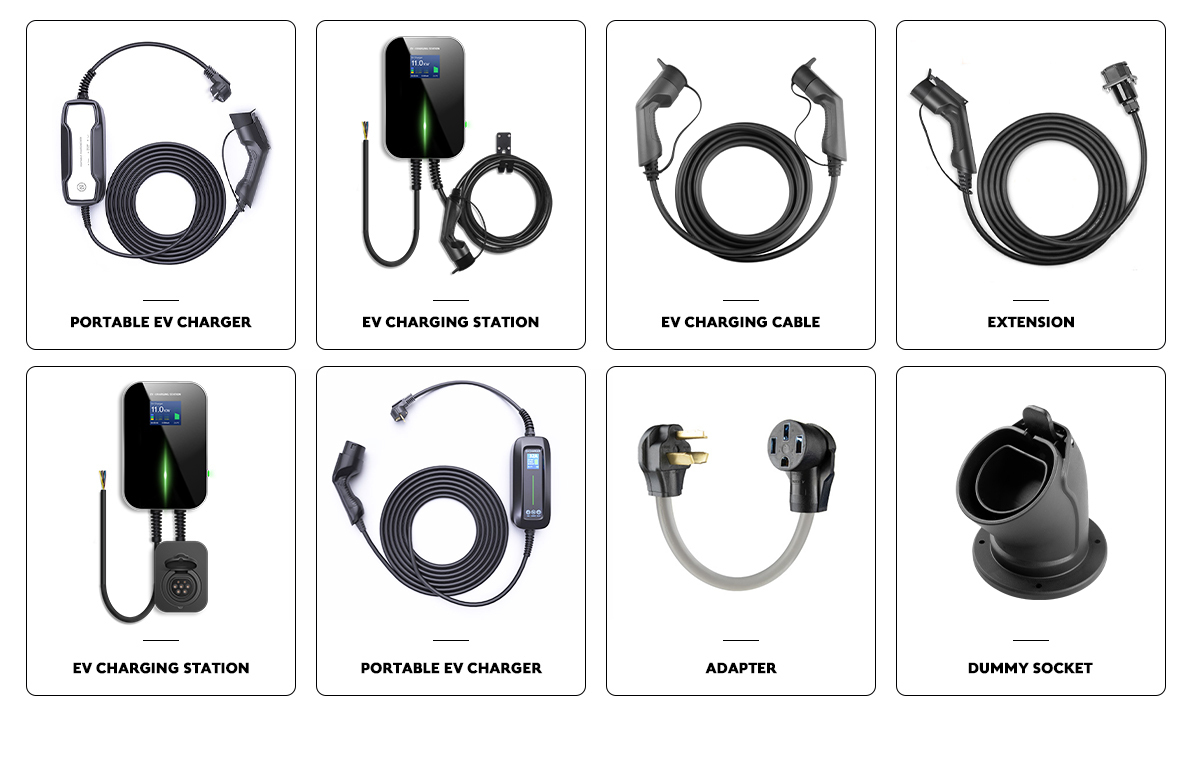

related products.jpeg
