16A 32A 20ft SAE J1772 & IEC 62196-2 charging box

Release time:2022-03-25Popularity:170

Basic charging wallbox

You can start or stop charging simply by pressing the button.

There is an LCD display on the front where you can see the charging data in real time.

It's small, easy to transport and equipped with complete safety protection system.

It has two connection modes: Mode A and Mode C.

Its working voltage ranges from 110V to 440V (±10%).

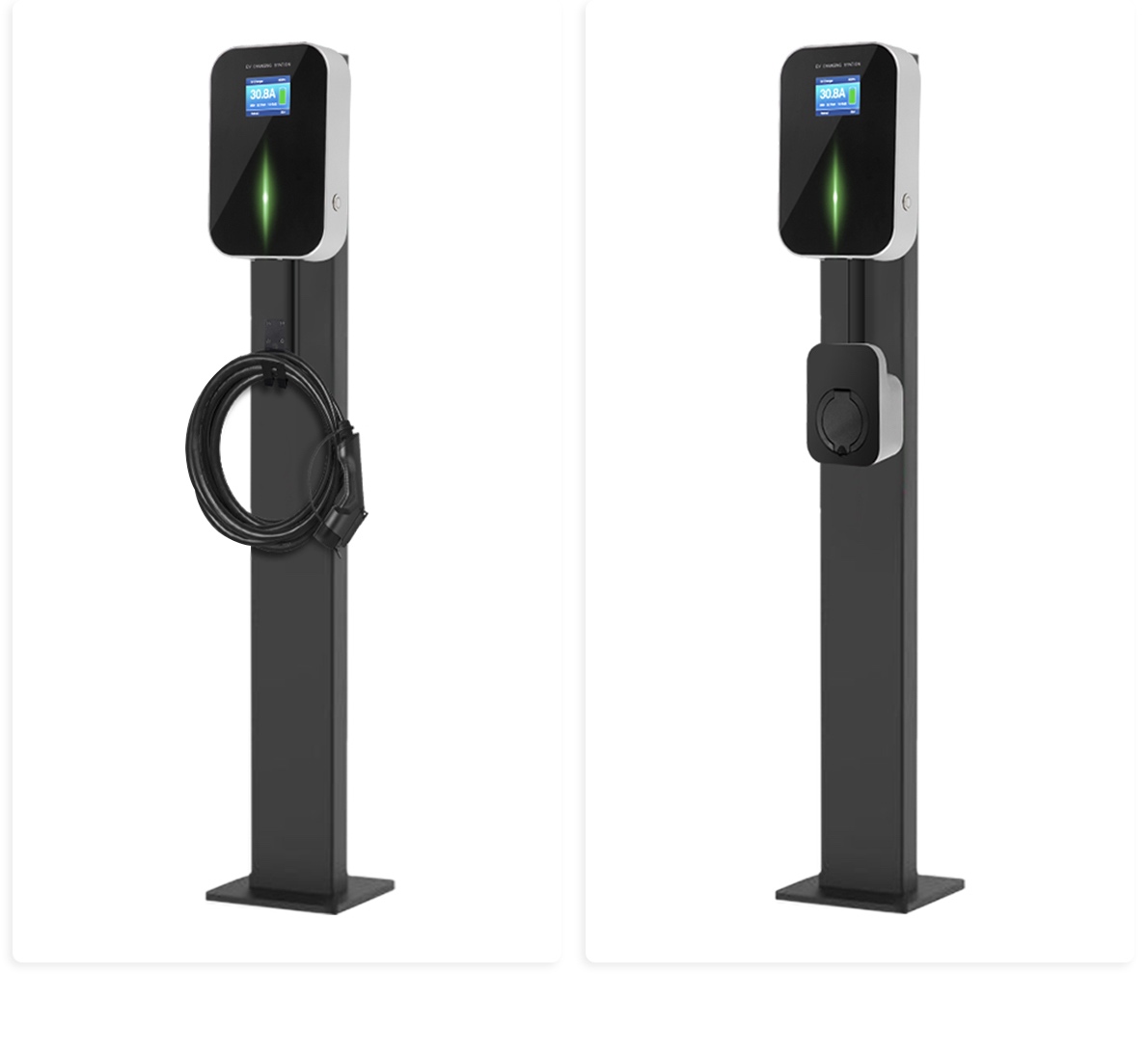

It can be installed on the wall or used with a pillar.The installation is easy and convenient.

It's equipped with complete protection mechanism and can be used in any outdoor environment.

It's suitable for home use.

16A 32A 3.6kW 7.2kW 11kW 22kW with 20ft SAE J1772 & IEC 62196-2 charging box.jpg

IP66 EV Charger(16A 32A 3.6kW 7.2kW 11kW 22kW)with 20ft SAE J1772 & IEC 62196-2 Plug

This is a basic wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The LCD display can show the detailed charging status. The charger can be used with stand.

Lead_Time:15 Days

shipping:Express delivery

Current:16A , 32A

Power:3.6kW, 7.2kW,11kW, 22kW

Customization: Color,Logo

Cable Length: 6.1m

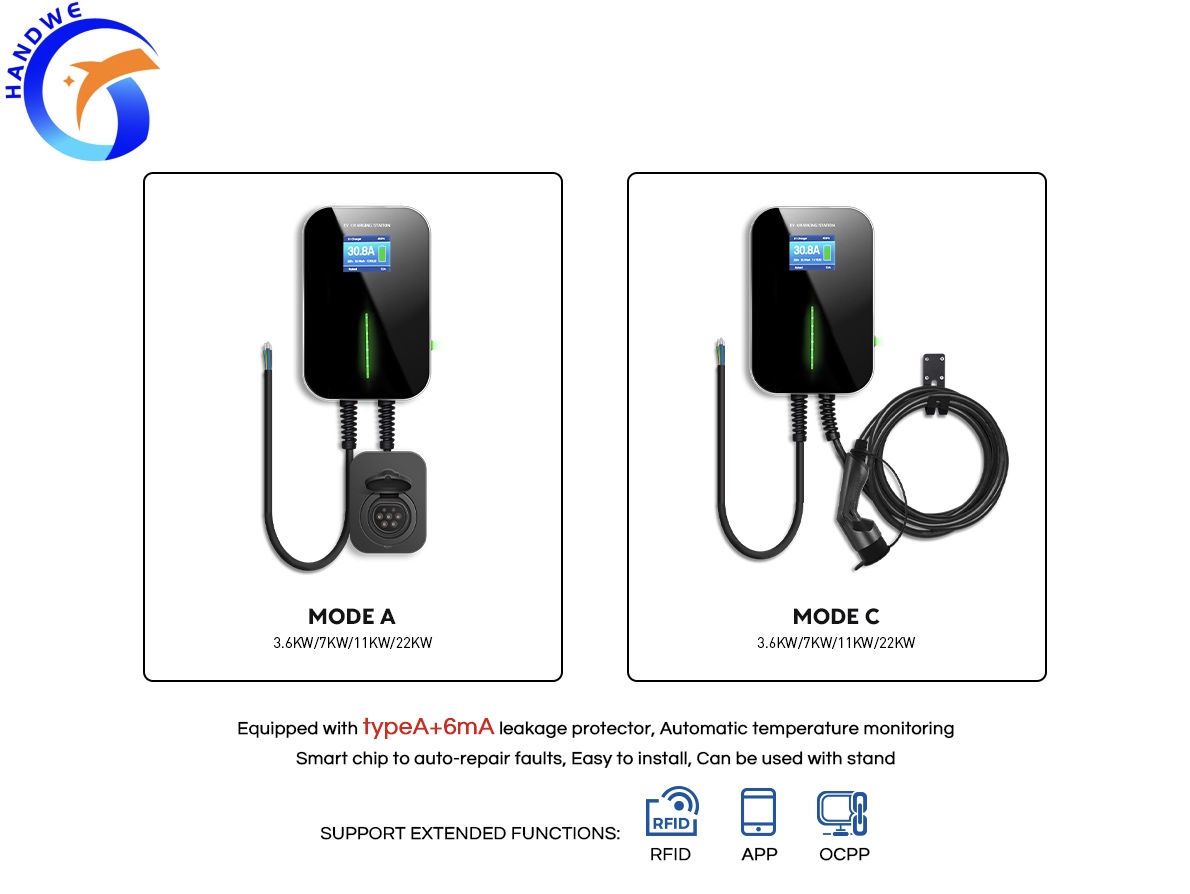

MODE A AND MODE C.jpg

CHARGING BOX

LCD screen Easy installation

High compatibility

Waterproof grade:IP67

Structural strength:IK 10

Small size,Easy to transport

Over- voltage protection/lightning protection

Certified by authorities (CSA, CE, FCC, NTC, CCC)

Real-time monitor on charging temperature

Automatic error correction & reboot system


EV CONNECTOR

Silver-plated design

Built in temperature monitoring chip

Automatic remove impurities

Good conductivity



TPU CABLE

Durable and anticorrosion

Easy to bend,Long service life

High resistance to cold /high temperature


CORE ADVANTAGE

TypeA+DC 6mA

Directional current regulation

Repair the disorder of capacitor units

Full-link temperature monitoring system

Strong Expansibility(Blue tooth,WiFi, RFID,APP, OCPP)

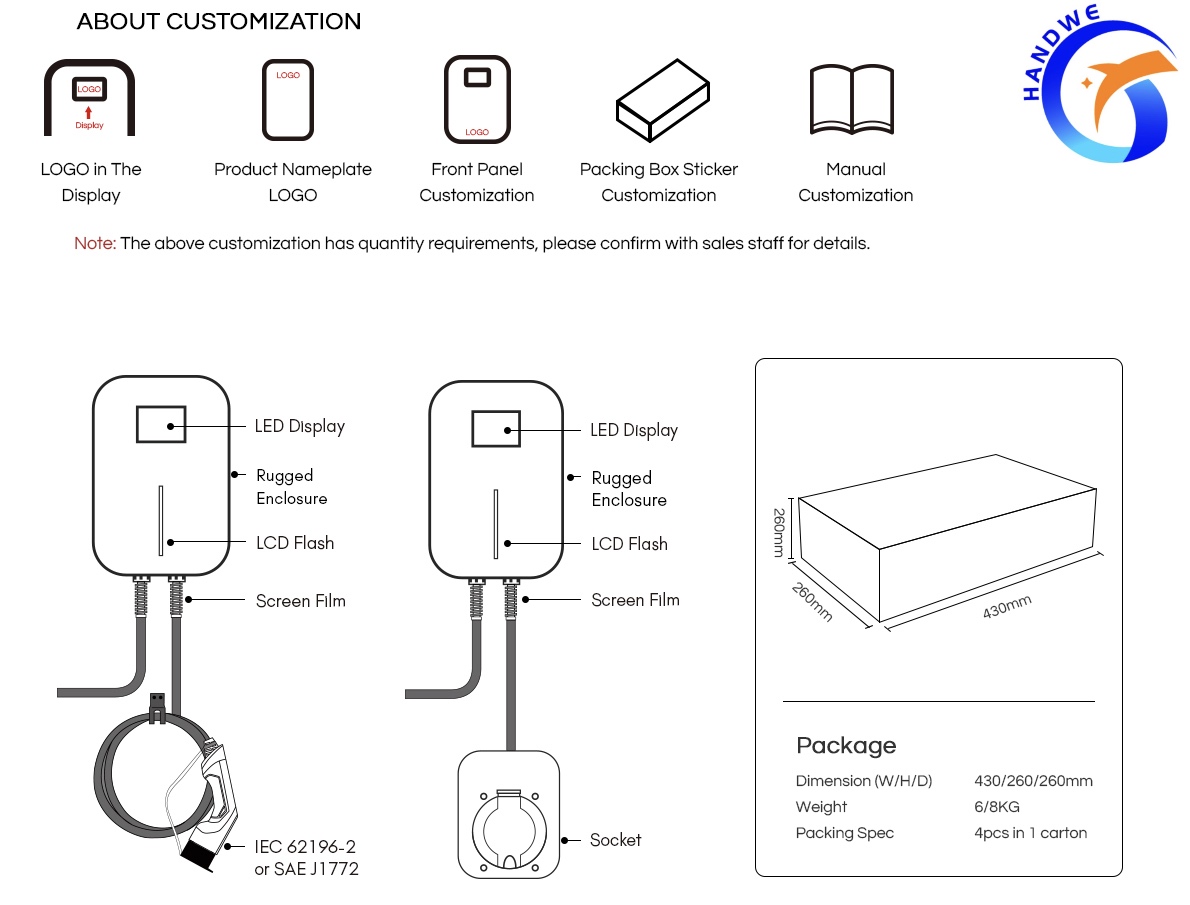

 16A 32A 3.6kW 7.2kW 11kW 22kW with 20ft SAE J1772 & IEC 62196-2 Plug package.jpg

Technical Data

Input Voltage/Output voltage100V /250V /440V (Three Phase)

Input frequency47~63Hz

Max. output power7.6kW/22kW(three phase)

Max. output current32A

Charging interface typeIEC 62196-2, SAE J1772

Working Environment

Protection degreeIP67

Environment temperature-40℃ ~ +80℃

Relative humidity0-95% non-condensing

Maximum altitude<2000m

CoolingNatural air cooling

Standby power consumption<8W

Function and Accessory

Ethernet/WIFI/4G/BluetoothNo

LCD3.5-inch color display

RCDType A / Type A+ 6mA

LED Indicator lightYes

Intelligent power adjustmentYes

RFIDOpt

APP    Opt

Certificate

CE, FCC, ROHS, CCC, CSA, IK10, IP67

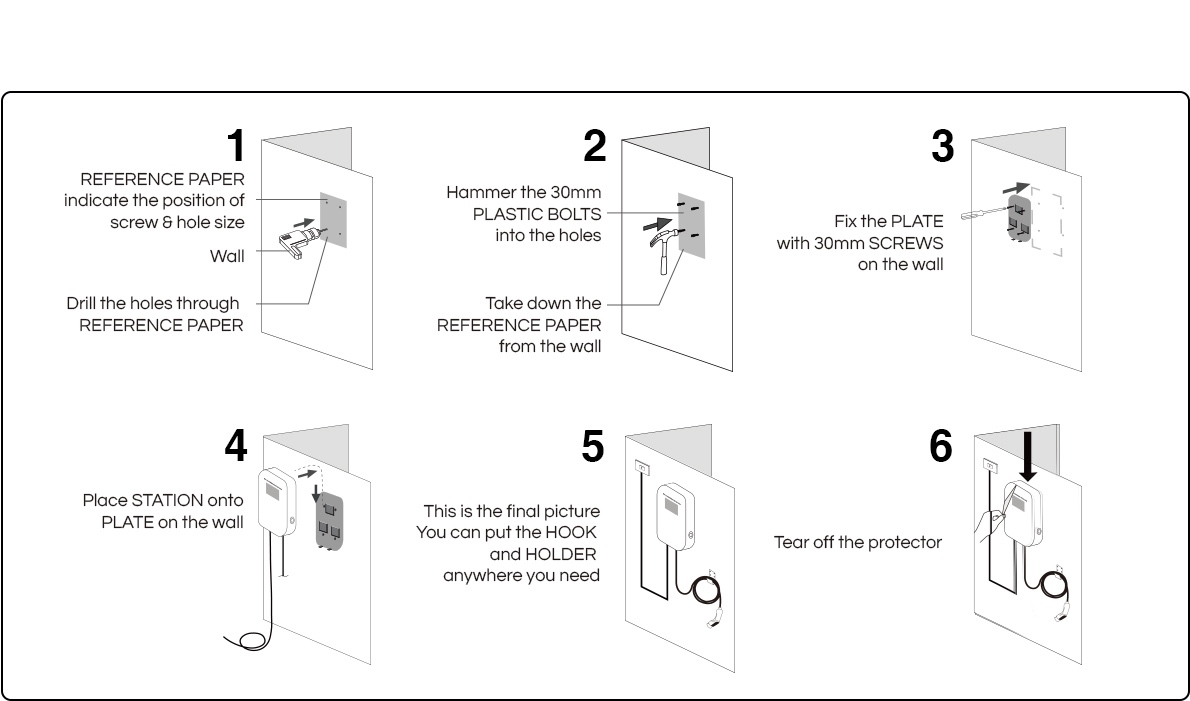

Installation

16A 32A 3.6kW 7.2kW 11kW 22kW with 20ft SAE J1772 & IEC 62196-2 Plug installation.jpg

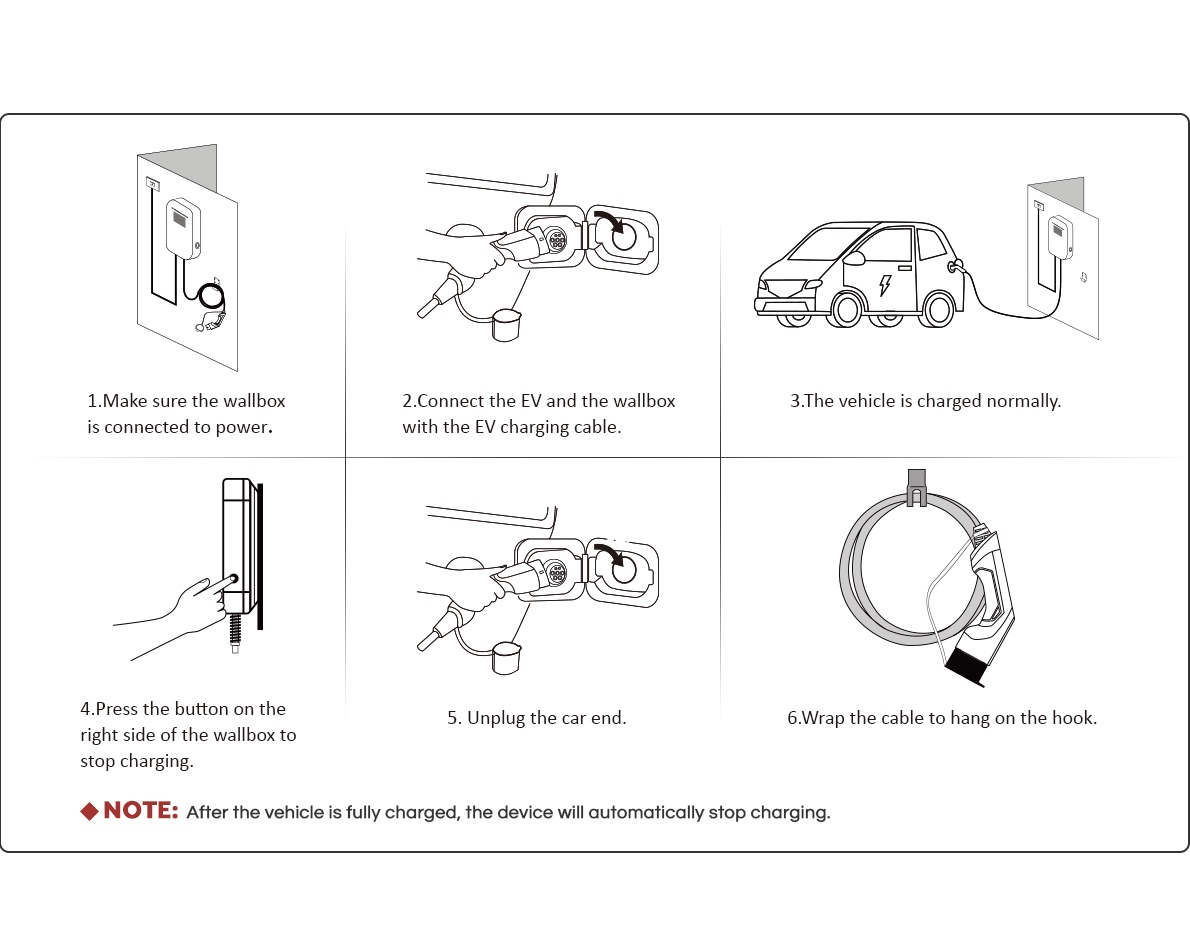

Usage

16A 32A 3.6kW 7.2kW 11kW 22kW with 20ft SAE J1772 & IEC 62196-2 Plug usage.jpg
