Basic charging wallbox

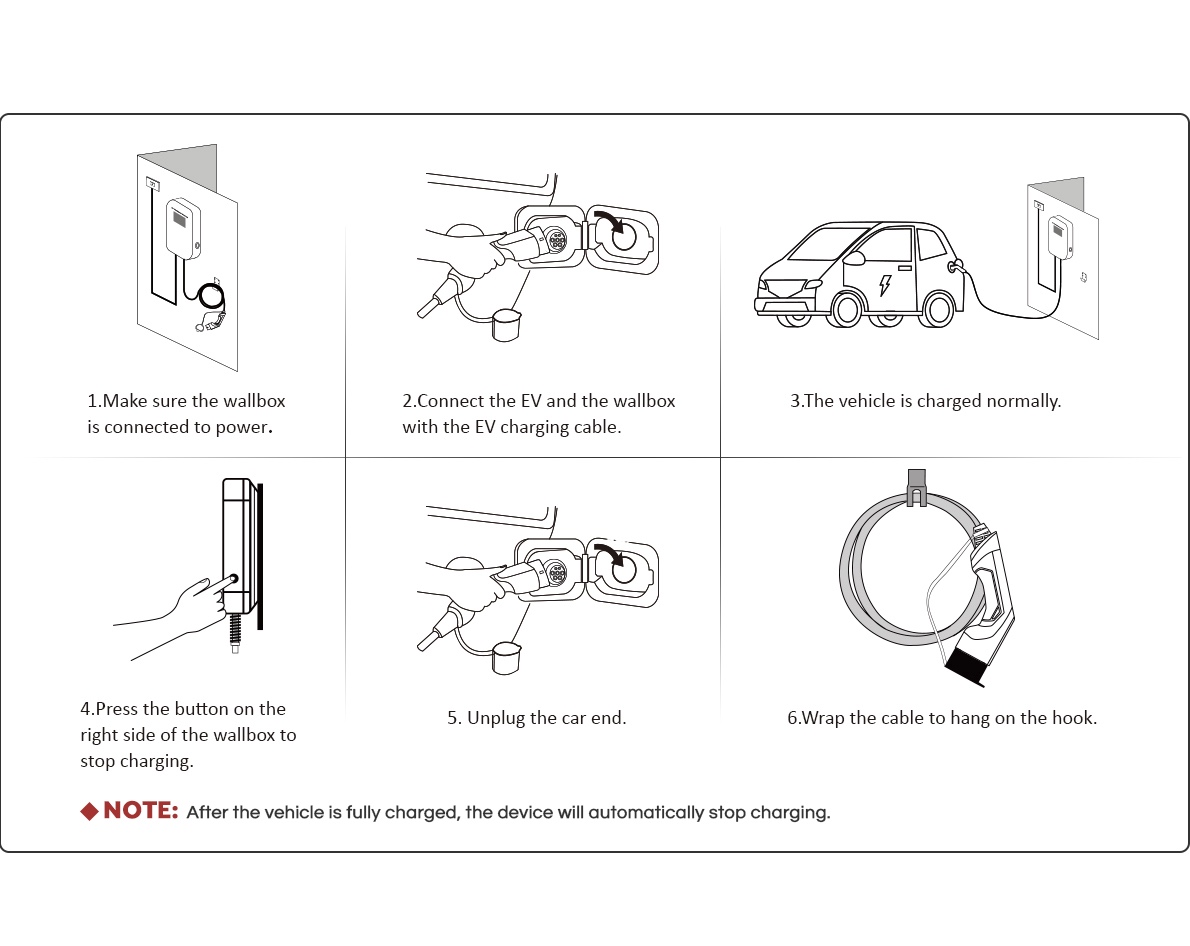

You can start or stop charging simply by pressing the button.
There is an LCD display on the front where you can see the charging data in real time.
It's small, easy to transport and equipped with complete safety protection system.

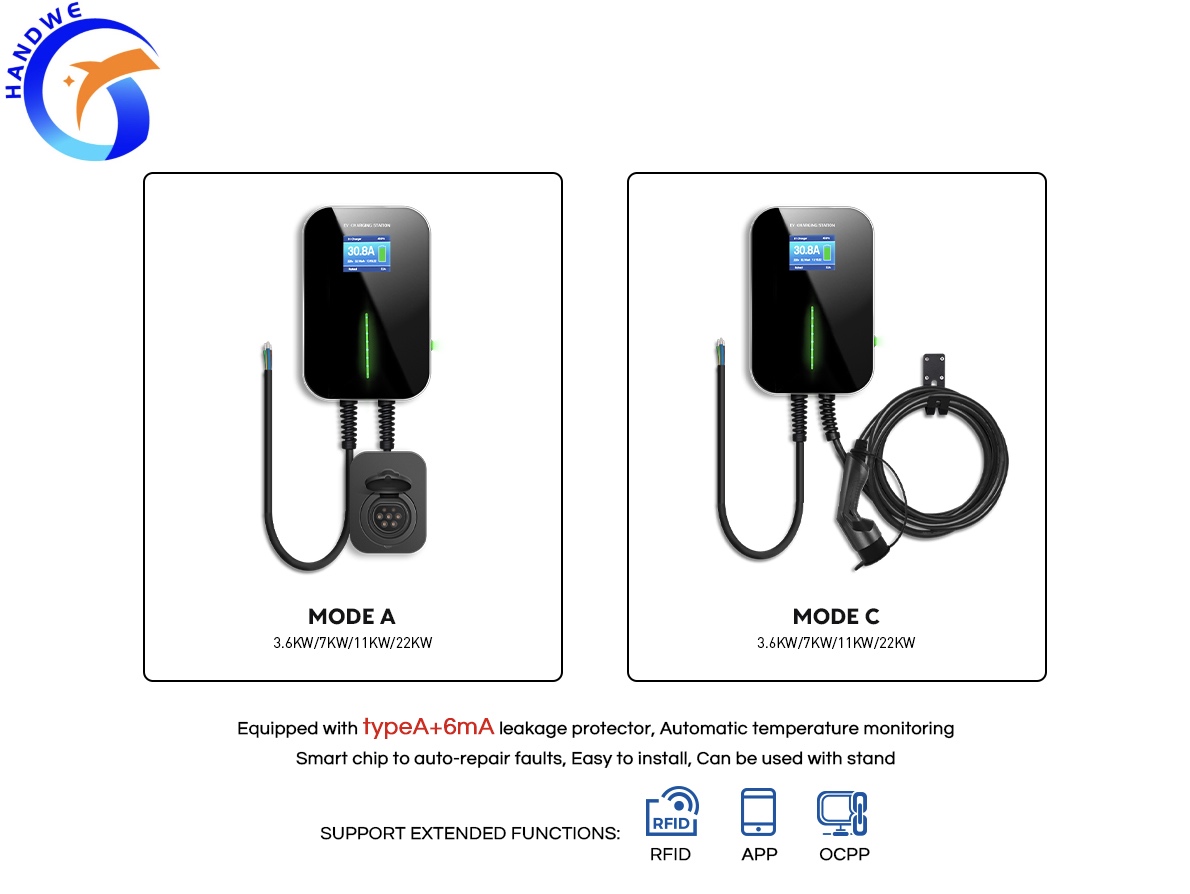

It has two connection modes: Mode A and Mode C.
Its working voltage ranges from 110V to 440V (±10%).

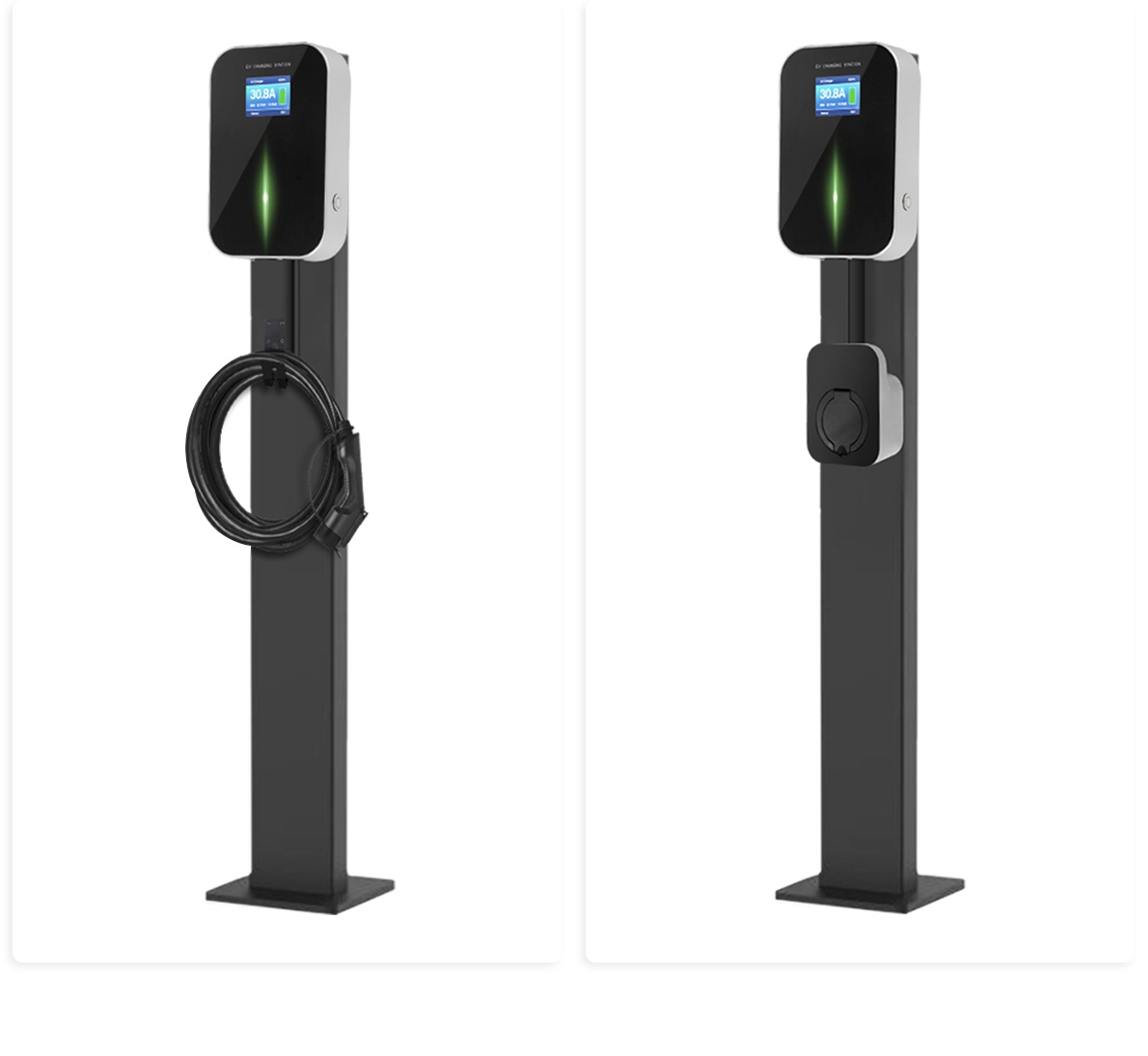

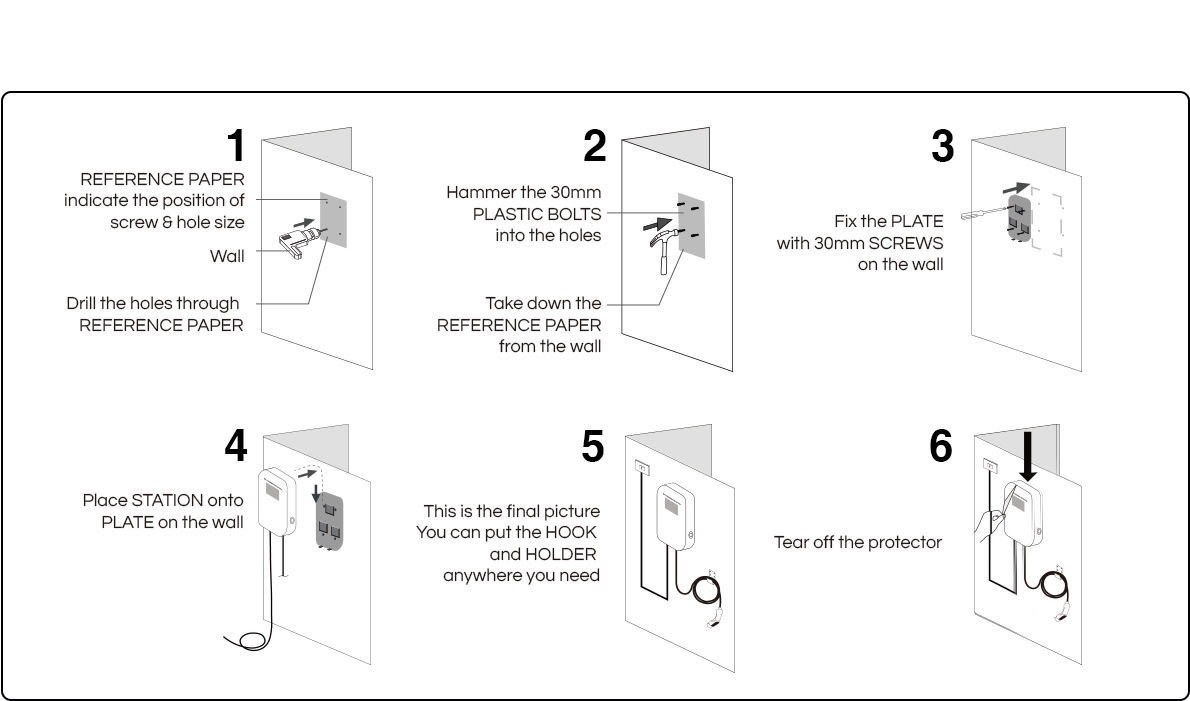

It can be installed on the wall or used with a pillar.The installation is easy and convenient.
It's equipped with complete protection mechanism and can be used in any outdoor environment.
It's suitable for home use.

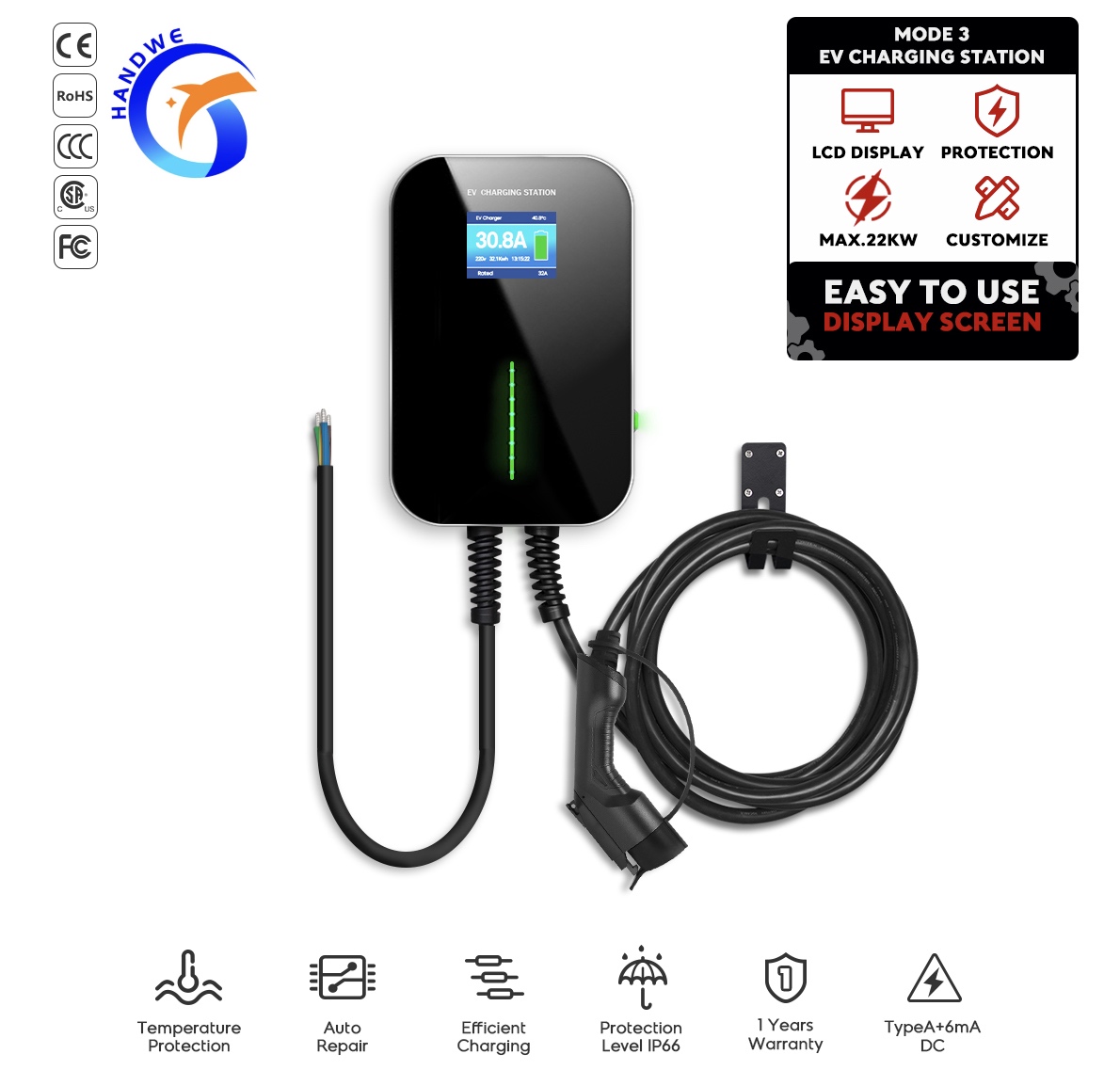

EV Charger（16A 32A 3.6kW 7.2kW 11kW 22kW）with Type 2 IEC 62196-2 outlet
This is a basic wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The LCD display can show the detailed charging status. The charger can be used with stand.
Current:16A , 32A
Power:3.6kW, 7.2kW,11kW, 22kW
LCD screen Easy installation
Structural strength：IK 10
Small size,Easy to transport
Over- voltage protection/lightning protection
Certified by authorities (CSA, CE, FCC, NTC, CCC)
Real-time monitor on charging temperature
Automatic error correction & reboot system
Built in temperature monitoring chip
Automatic remove impurities
Durable and anticorrosion
Easy to bend，Long service life
High resistance to cold /high temperature
Directional current regulation
Repair the disorder of capacitor units
Full-link temperature monitoring system
Strong Expansibility(Blue tooth,WiFi, RFID,APP, OCPP)
Input Voltage/Output voltage100V /250V /440V (Three Phase)
Max. output power7.6kW/22kW(three phase)
Max. output current32A
Charging interface typeIEC 62196-2, SAE J1772
Environment temperature-40℃ ~ +80℃
Relative humidity0-95% non-condensing
CoolingNatural air cooling
Standby power consumption<8W
Function and Accessory
LCD3.5-inch color display
RCDType A / Type A+ 6mA
LED Indicator lightYes
Intelligent power adjustmentYes
CE, FCC, ROHS, CCC, CSA, IK10, IP67
