160KW Handwe Multy Standard DC Fast Charger with CHAdeMO, CCS, Type 2 outlets

160KW Handwe Multy Standard DC Fast Charger with CHAdeMO, CCS, Type 2 outlets

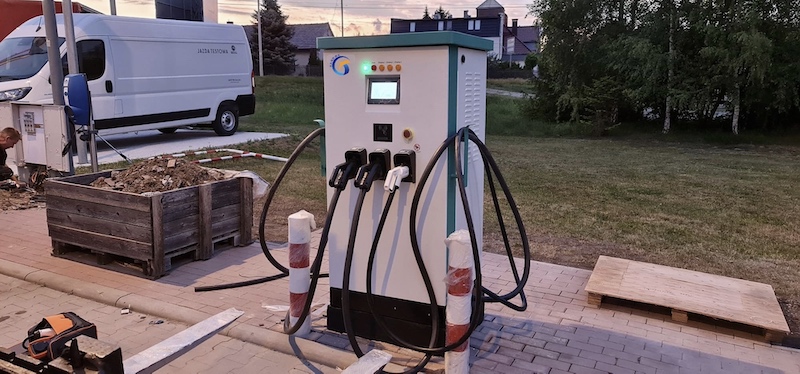

The series DC fast charging station is a dual DC outlets (CHAdeMO and CCS)

60 to 120kW (max up to 160kW) fast charger with an optional Type-2 AC

output up to 22kW that can be configured to meet different charging needs

of both European and North American customers. It supports simultaneous

charging and balancer reel for advanced cable management.

With user-friendly interface display and control guidance function

customers can complete the charging process easily. It is IPs4 rated which

makes it suitable for outdoor & indoor public charging, and commercial

places charging application.

Technical Date

Power: 60-160KW

Input Voltage: AC380V÷15%

Input frequency: 50HZ

Protection class: 1P54

Rated output current: CCS2 DC 160A; CHAdeMO 150A; AC 32A

Rated output voltage: CCS2 DC 200-750V; CHAdeMO 200~500V; AC 380V

Efficiency: ≥95%

Communications interface: CAN, 485, 4G or Ethernet

User interface: LCD display touch screen

Screen size: 7" UV screen

Cable length: 5m

Cooling method: Air cooling

Installation method: Floor mounted

Mobile payment: Support

APP control: Support

Wechat public: Support

LED indicator: Support

Emergency stop button: Support

Remote upgrade: Support
