Type 2 Socket outlet 16A 32A

Release time:2022-05-02Popularity:148

Type 2 Socket outlet 16A 32A



What is Socket Outlet and where is the application?

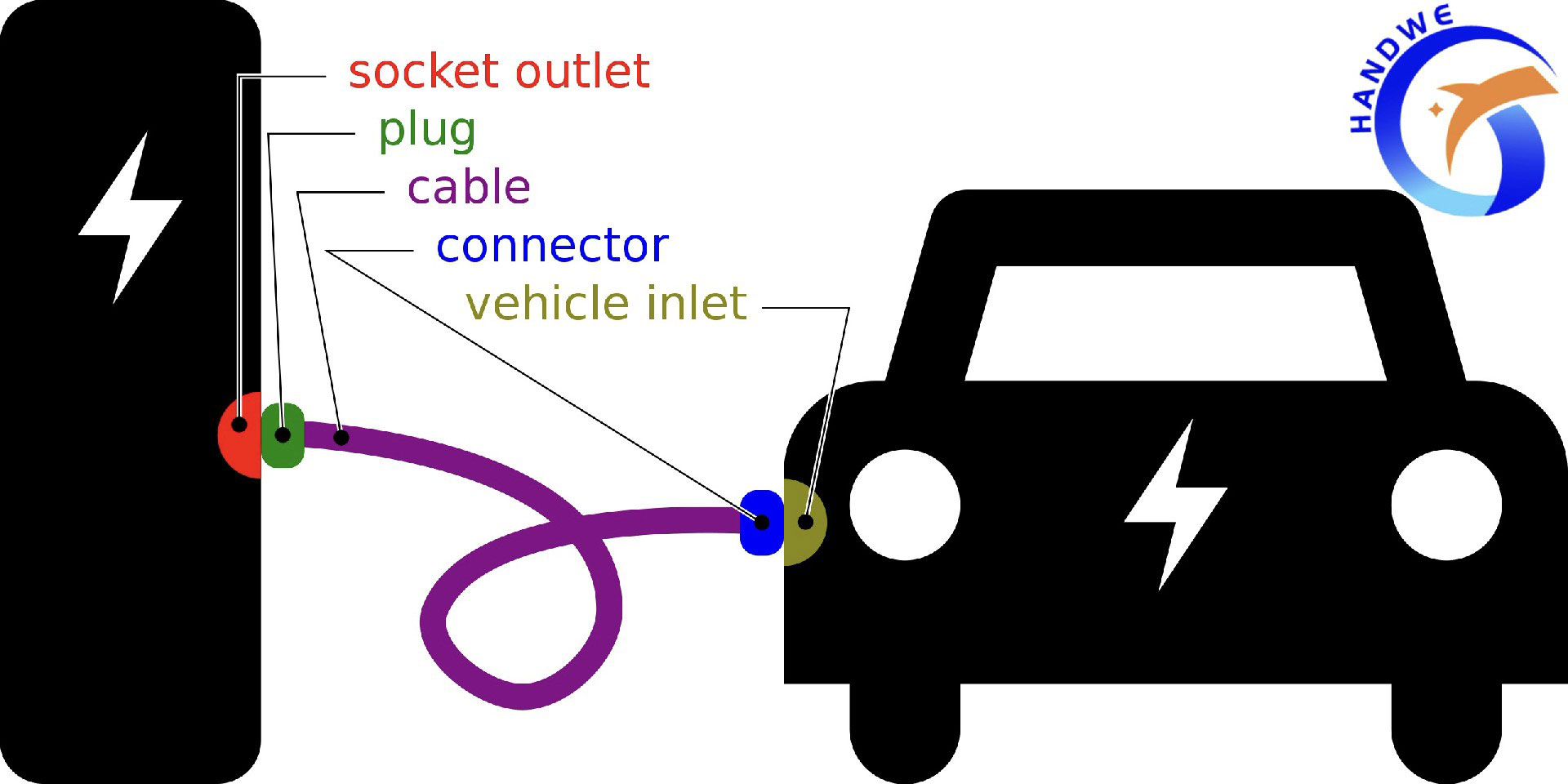

Usually EV cars are fitted with a standard male vehicle inlet, whilst charging station are fitted with a female type 2 socket outlet, either directly on the outside of the charging station, or via a flexible charging cable with permanently attached connector on the end. A charging station with a permanently fixed charging cable can be attached directly into the vehicle inlet, similar to using a petrol pump and when no fixed cable is available, a separate male-to-female cable is used to hook up the vehicle either using the charging station, or from a traditional IEC 60309-2 industrial connector.

Electric car charging drawing handwe.jpgRegional variations in IEC 62196-2 Type 2.jpg



Region / Standard

Vehicle inlet

Connecting cableSocket outletElectrical
ConnectorPlugPhaseCurrentVoltage
EU / Type 2MaleFemaleMaleFemale1Φ or 3Φ70A (1Φ)
63A (3Φ)
480V
US / SAE J3068 AC6Permanently connected100, 120, 160A208, 480, 600V
China / GB/T 20234.2FemaleMaleMaleFemale
(3Φ reserved)
16, 32A250/400V

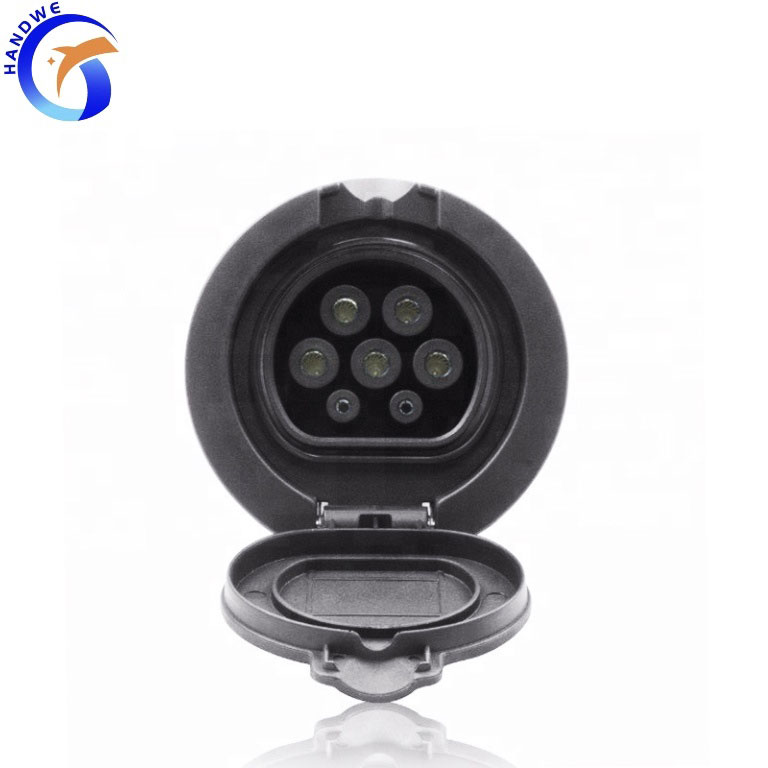

Type 2 Socket outlet 16A 32A.jpg



Type 2 Socket outlet Technical Date

● Standard: IEC 62196-2

● Rated current: 16A/32A  1/3phase

● Working voltage: 240V/440V AC

● Insulation resistance: > 1000M Ω

● Terminal temperature rise: <50K

● Withstand voltage: 2000V

● Contact impedance: 0.5m Ω Max

● Vibration resistance: Meet JDQ 53.3 requirements

● Working temperature: -30°C ~+ 50°C

● Insertion force:>45N<80N

● TUV & CE approved

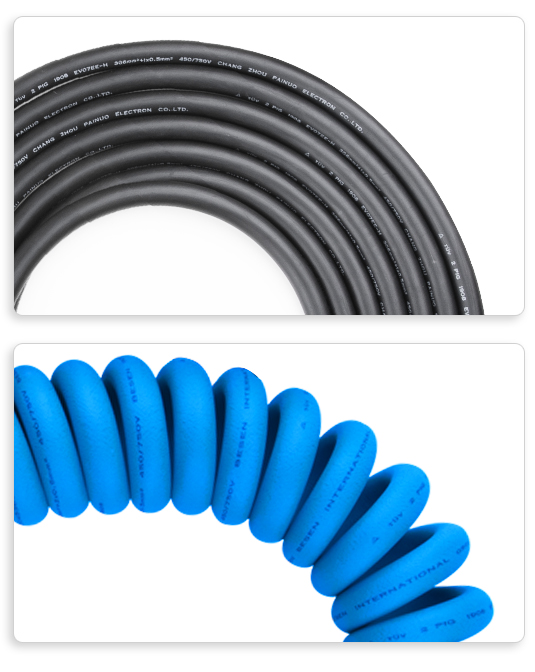

Type 2 EV charging cable.jpeg







What cables to use with Type 2 Socket outlet?

16A 1Φ   3 X 2.5mm² + 2 X 0.5mm²

16A 3Φ   5 X 2.5mm² + 2 X 0.5mm²

32A 1Φ   3 X 6.0mm² + 2 X 0.5mm²

32A 3Φ   5 X 6.0mm² + 2 X 0.5mm²
