Portable EV Charger 10A 16A with SAE J1772 Cable Type 1 plug item HWPC0110 HWPC0116

Release time:2022-04-15Popularity:121

Low-Power Portable EV Charger is suitable for most regions in the world such as Europe, North America, Australia, the Middle East, Asia, etc. It is currently the most widely applicable portable EV charger.

The maximum charging current of the device is 16A and the maximum power is 3.6kW.

Its working voltage ranges from 110V to 240V (±10%).

It supports multiple current switching modes, such as 8A, 10A, 13A, 16A, etc. suitable for different charging environments.

Some models have charging settings such as delayed charging.

Product performance of the device is perfect, suitable for all types of electric vehicles on the market

An electric car with a battery capacity of 80kWh takes about 18-20 hours to be fully charged.

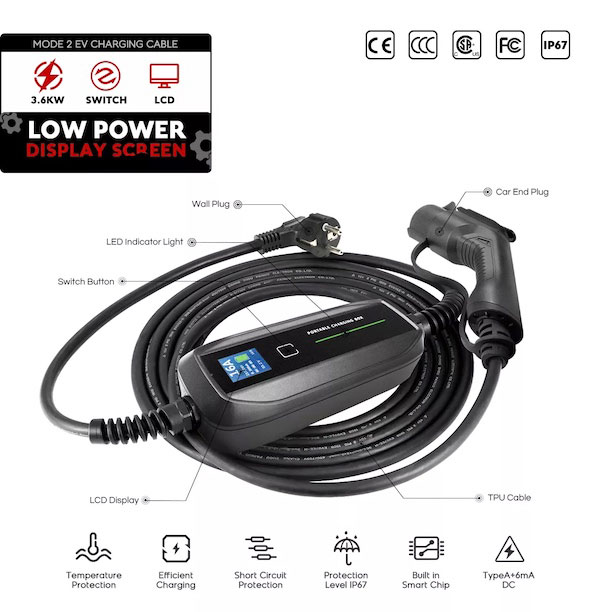

Portable EV Charger 10A 16A with SAE J1772 Cable Type 1 plug.jpg

Portable EV Charger 10A 16A with SAE J1772 Cable Type 1 plug

Products Model: HWPC0110,HWPC0116

  • Plug for 10A :UK、AU、NZ、NEMA 6-20、NEMA 5-15

  • Plug for 16A : CEE、SCHUKO 16A、NEMA 6-20

Portable EV Charger 10A 16A with SAE J1772 Cable Type 1 plug.jpg

CORE ADVANTAGE

High compatibility

High speed charging

Equipped Type A+6ma DC filter

Automatically Intelligent Repair

Automatically restart function

Over-temperature protection

Full link temperature control system


EV PLUG

Integrated design

Long working Life

Good conductivity

Self filter the surface impurities

Silver plating design of terminals

Real-time temperature monitoring

Heat Sensor guarantee the charging safety

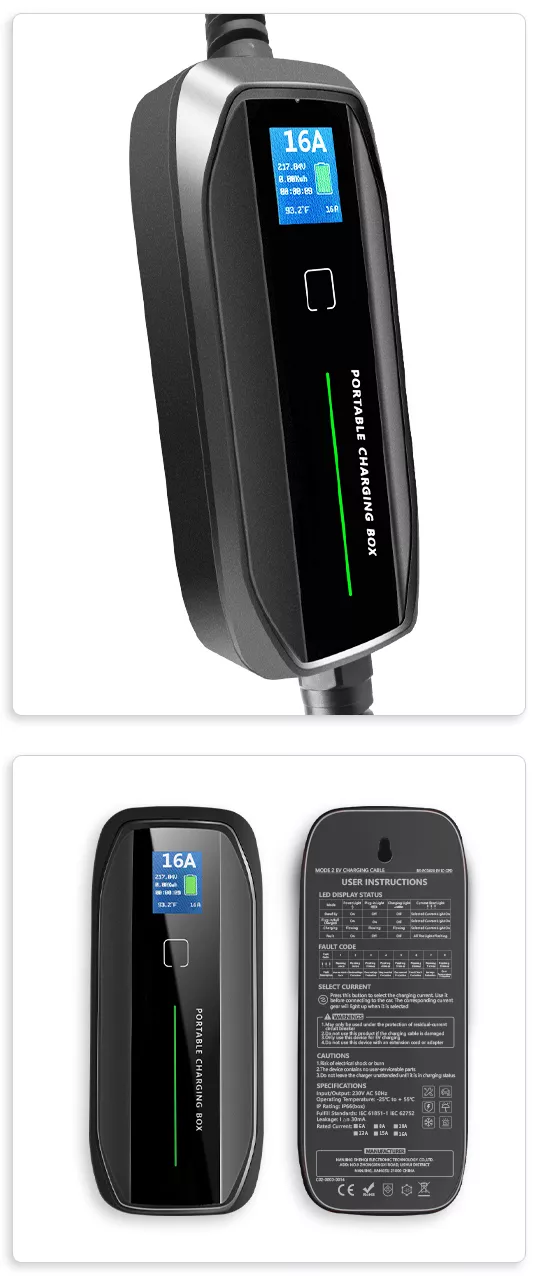

charging box.jpg

BOX BODY

LCD display

IK10 Rugged enclosure

Higher waterproof performance

IP67, rolling-resistance system


TPU CABLE

Comfortable to touch

Durable and preservative

EU standard ,Halogen-free

High and cold temperature resistance

Portable EV Charger 10A 16A with SAE J1772 Cable Type 1 plug.jpg

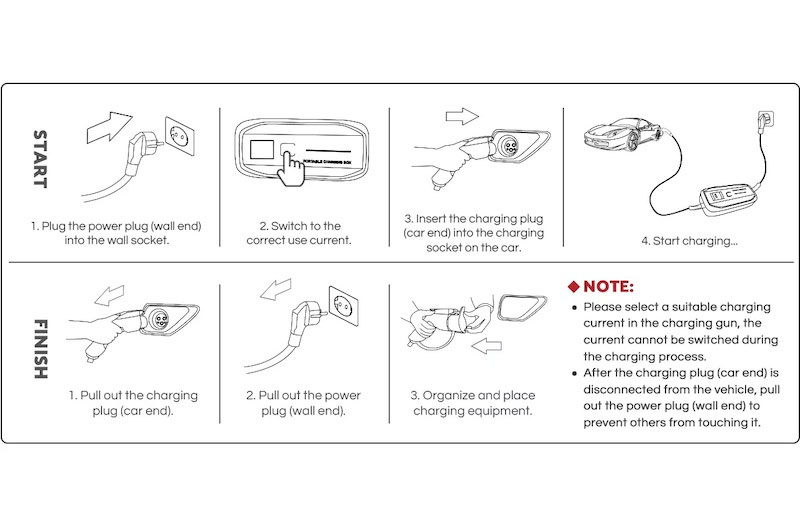

The portable electric car charger belongs to the LEVEL 2 AC charger, and the charging power is generally 3.6kW-22kW. In order to prevent potential safety hazards due to incorrect use, please read the equipment manual carefully before use. Do not charge in places that do not meet the charging conditions. Ensure that the power supply and wiring are in a normal state before use.

  • Do not immerse the device in water.

  • Do not use it in an environment that exceeds the operating temperature.

  • Do not put your fingers into the car end plug when the device is connected to the power source.

  • Do not use when the equipment and cables are found to be damaged.

  • Do not use the device for charging other than electric vehicles.

  • When using the adapter (10A to 16A), it is prohibited to adjust the charging device to 16A mode, Prevent safety hazards!

  • The precautions for use include but are not limited to those listed above.

  • If you are not sure whether it will cause safety hazards, please contact after-sales service in time.

HWPC0110 HWPC0116.jpg

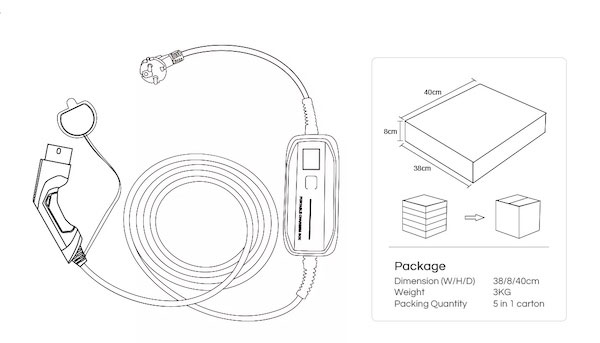

Portable EV Charger 10A 16A with SAE J1772 Cable Type 1 plug package.jpg

Electrical Specification

Input Voltage100V AC

Output voltage250V AC

Max. output Current16A

Max. output Power3.6kW

Input Frequency 47~63Hz

Charging interface type IEC 62196-2, SAE J1772


Working Environment

Waterproof Protection Degree IP67

Maximum Altitude <2000m

Environment Temperature -40℃ ~ +55℃

Relative Humidity 0-95% non-condensing

Standby Power Consumption <8W

CoolingNatural air cooling


Function and Accessory

Ethernet/WIFI/4G/Bluetooth No

LCD 1.8-inch color display

RCDType A  / Type A+6mA

LED Indicator lightRolling

Intelligent power adjustment Yes

RFID No


Certificate

CE,FCC,CCC,CSA,IK10,IP67

Portable EV Charger 10A 16A with SAE J1772 Cable Type 1 plug application.jpg
