RFID Card EV Car Charging Station with 5m SAE J1772 Cable & IEC 62196 Cable

Release time:2021-08-29Popularity:95

RFID EV Charging wallbox, which can effectively prevent unauthorized personnel from using the charging equipment.

It's divided into ON/OFF version and billing version.

Its simple operation and management for billing version only take 1 minute to learn .

It has two connection modes: Mode A and Mode C.

Its working voltage ranges from 110V to 440V (±10%).

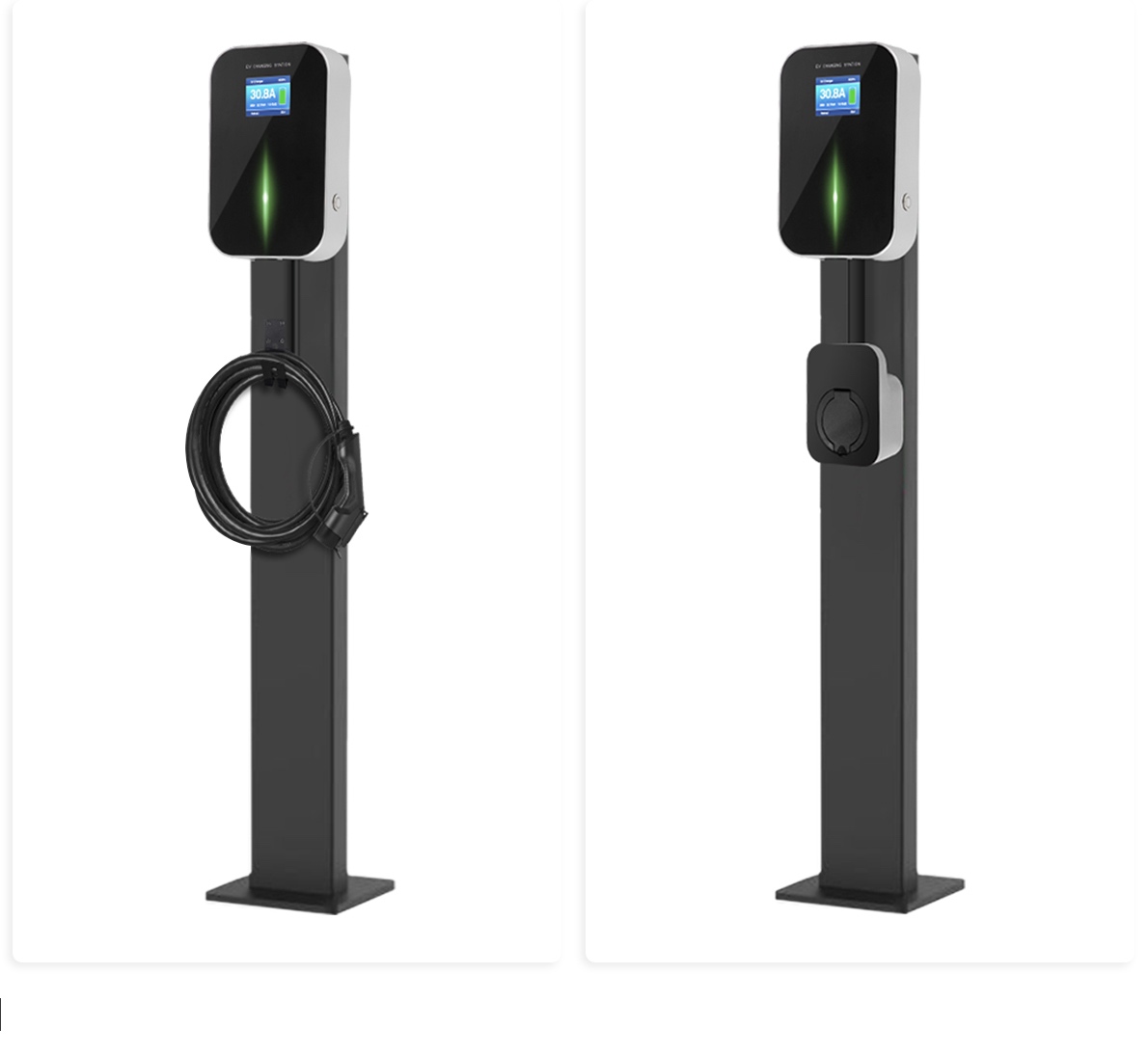

It can be installed on the wall or used with a pillar.The installation is easy and convenient.

It's suitable for use in companies and small paid parking lots.

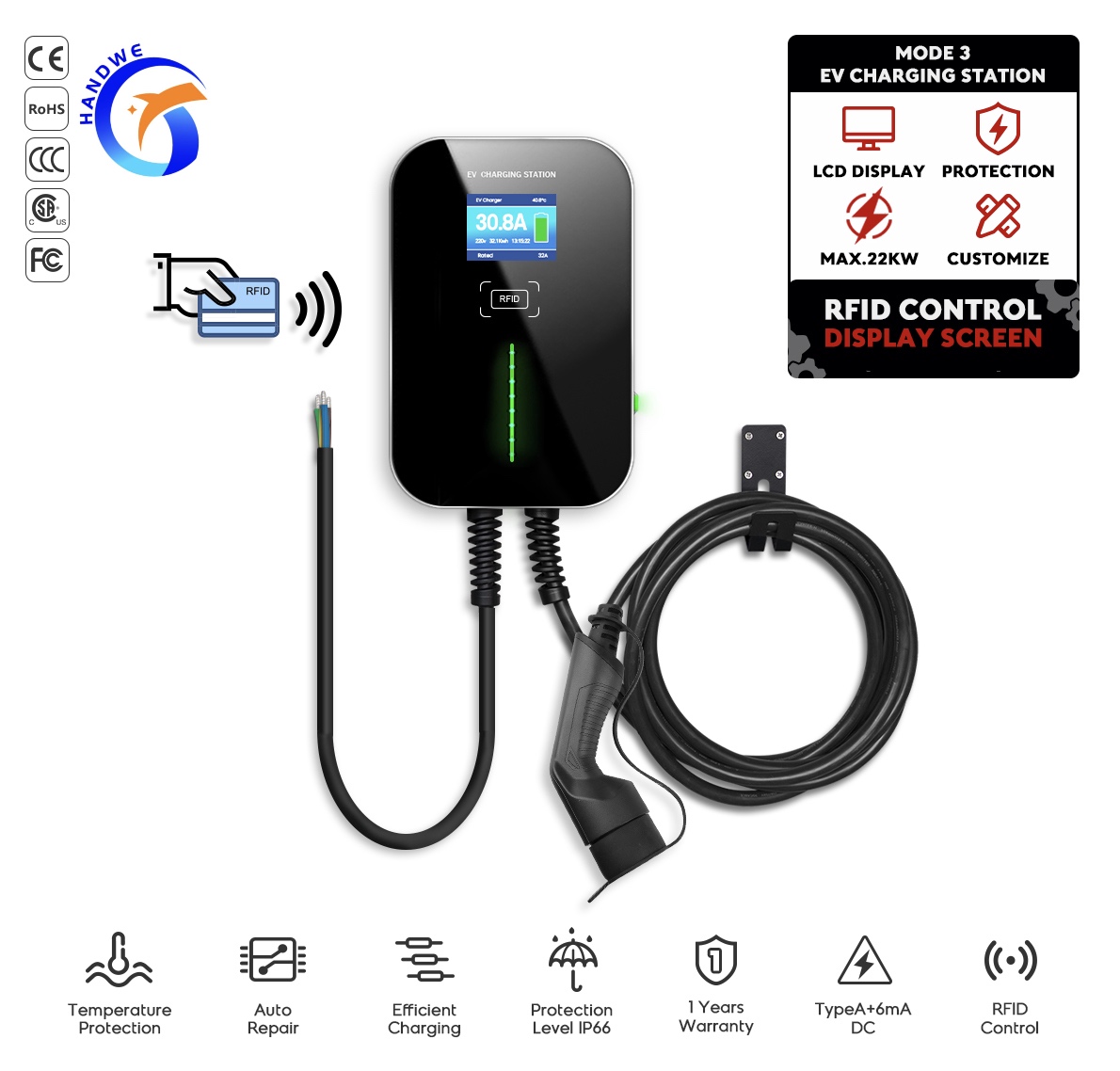

RFID Card EV Car Charging Station with 5m SAE J1772 Cable & IEC 62196 Cable.jpg

RFID Card EV Car Charging Station(16A 32A 3.6kW 7.2kW 11kW 22kW)with 5m SAE J1772 Cable & IEC 62196 Cable

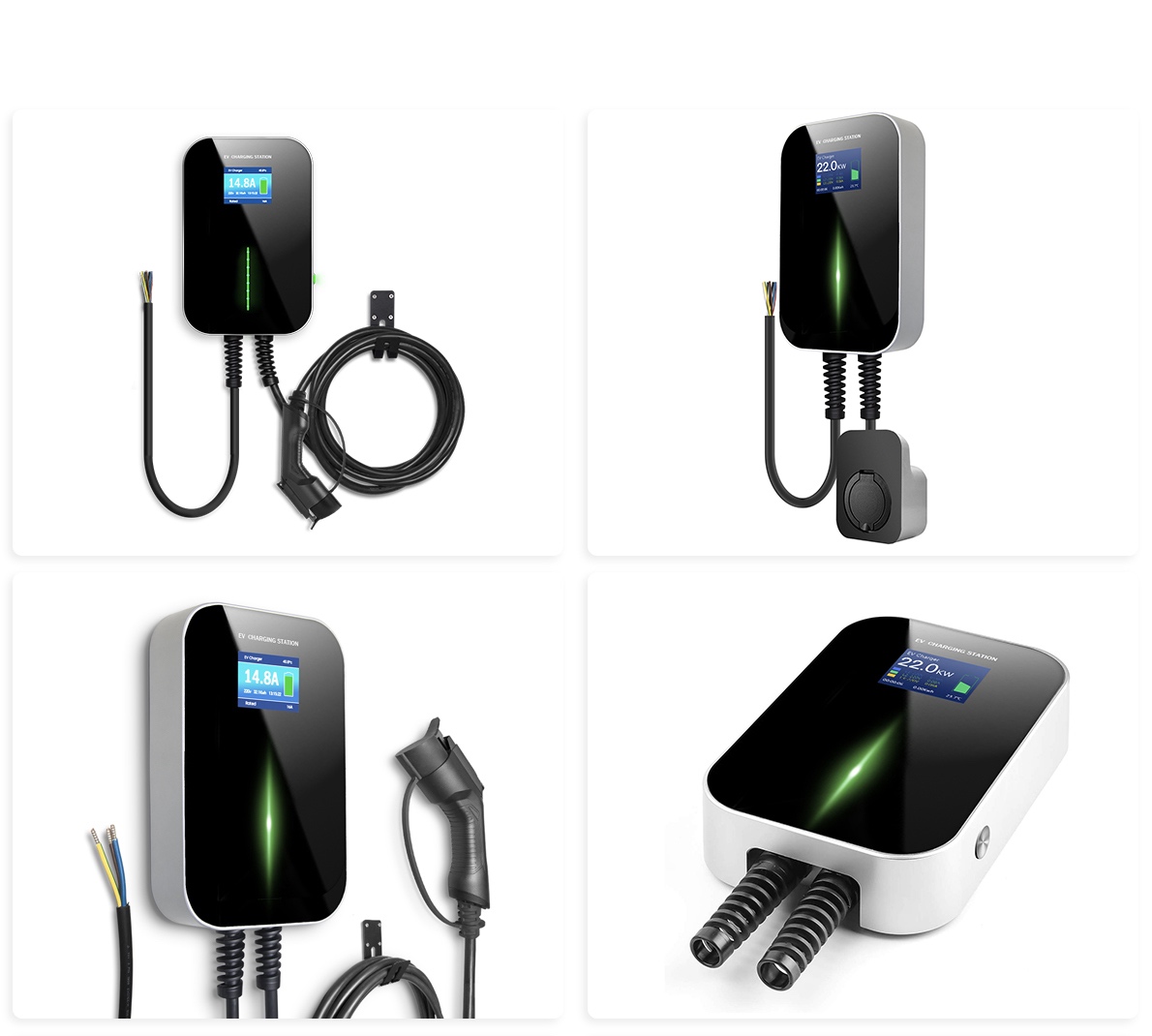

This is an RFID Card wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The LCD display can show the detailed charging status. To operate RIFD function, it has a card writer and management program. The charger can be used with stand.

Lead_Time:15 Days

shipping:Express delivery

Current:16A , 32A

Power:3.6kW , 7.2kW , 11kW , 22kW

Customization:Color,Logo

Cable Length:6.1m

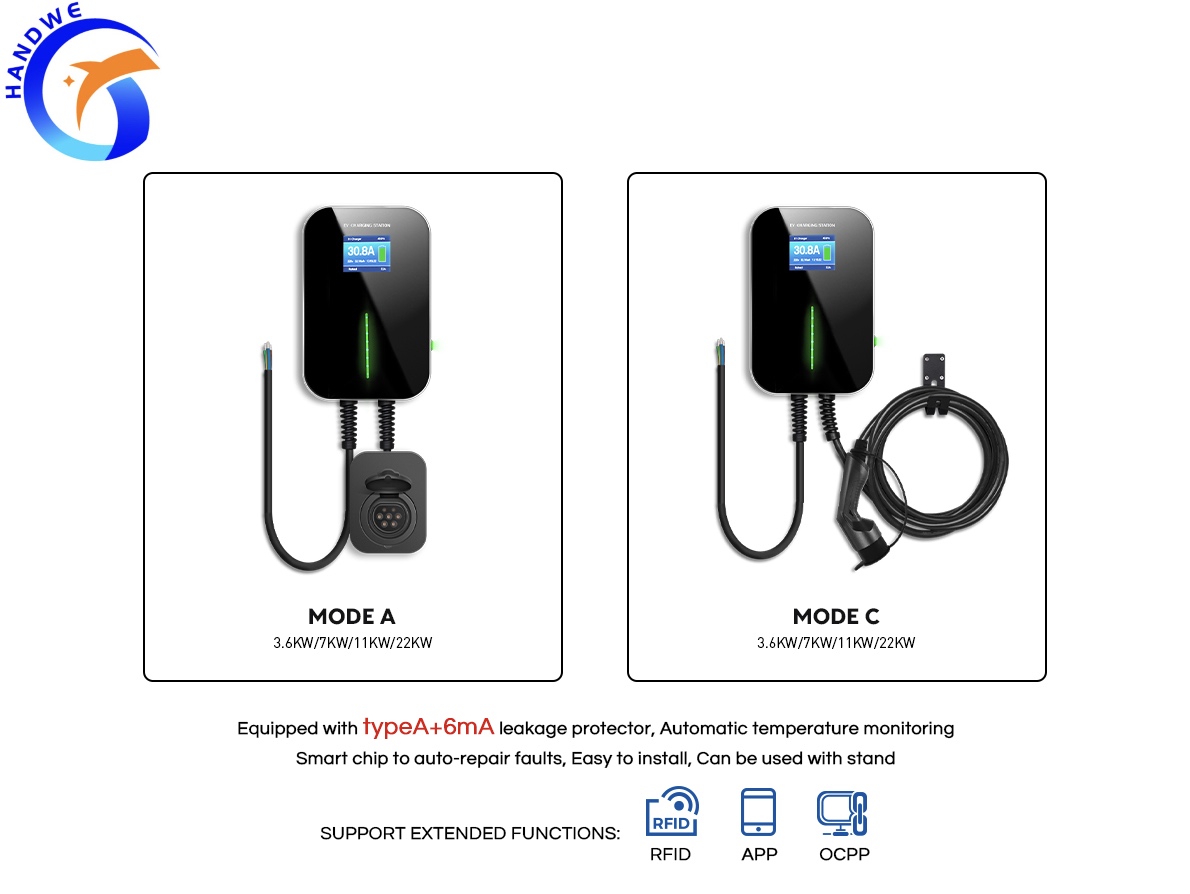

Mode A and Mode C.jpg

CHARGING BOX

LCD screen Easy installation

High compatibility

Waterproof grade:IP67

Structural strength:IK 10

Small size,Easy to transport

Over- voltage protection/lightning protection

Certified by authorities (CSA, CE, FCC, NTC, CCC)

Real-time monitor on charging temperature

Automatic error correction & reboot system


EV CONNECTOR

Silver-plated design

Built in temperature monitoring chip

Automatic remove impurities

Good conductivity



TPU CABLE

Durable and anticorrosion

Easy to bend,Long service life

High resistance to cold /high temperature


CORE ADVANTAGE

TypeA+DC 6mA

Directional current regulation

Repair the disorder of capacitor units

Full-link temperature monitoring system

Strong Expansibility(Blue tooth,WiFi, RFID,APP, OCPP)

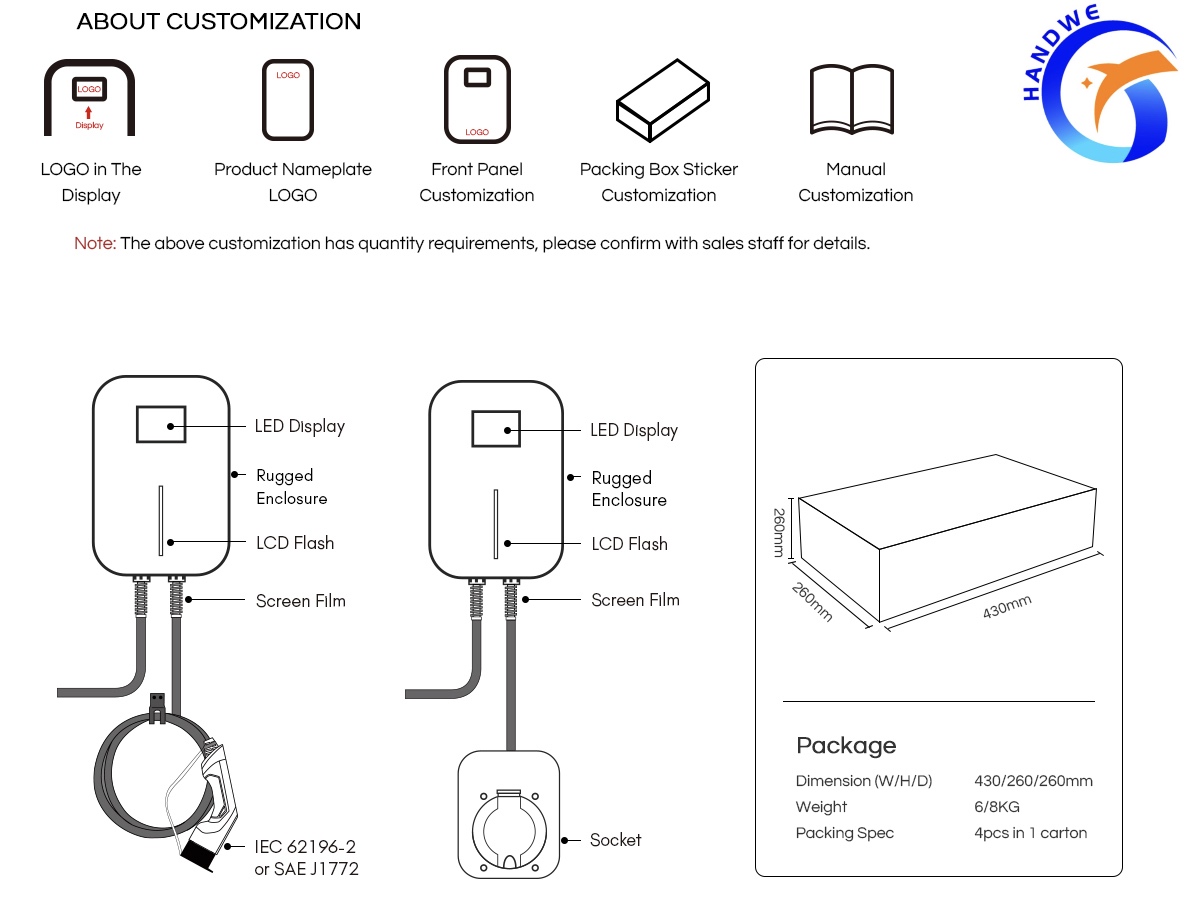

RFID Card EV Car Charging Station with 5m SAE J1772 Cable & IEC 62196 Cable package.jpg

Technical Data

Input Voltage/Output voltage100V /250V /440V (Three Phase)

Input frequency47~63Hz

Max. output power7.6kW/22kW(three phase)

Max. output current32A

Charging interface typeIEC 62196-2, SAE J1772

Working Environment

Protection degreeIP67

Environment temperature-40℃ ~ +80℃

Relative humidity0-95% non-condensing

Maximum altitude<2000m

CoolingNatural air cooling

Standby power consumption<8W

Function and Accessory

Ethernet/WIFI/4G/BluetoothNo/Yes/Opt/Yes

LCD3.5-inch color display

RCDType A / Type A+ 6mA

LED Indicator lightYes

Intelligent power adjustmentYes

RFIDYes

APP    Opt

Certificate

CE, FCC, ROHS, CCC, CSA, IK10, IP67

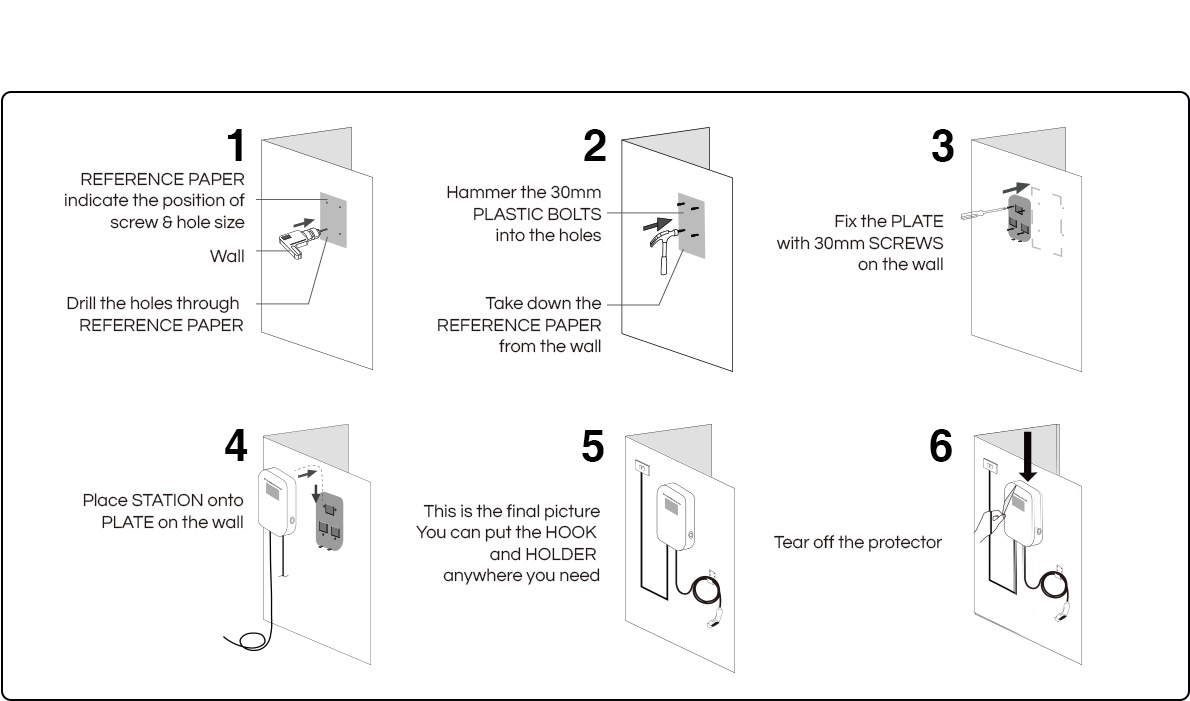

Installation

RFID Card EV Car Charging Station with 5m SAE J1772 Cable & IEC 62196 Cable installation.jpg

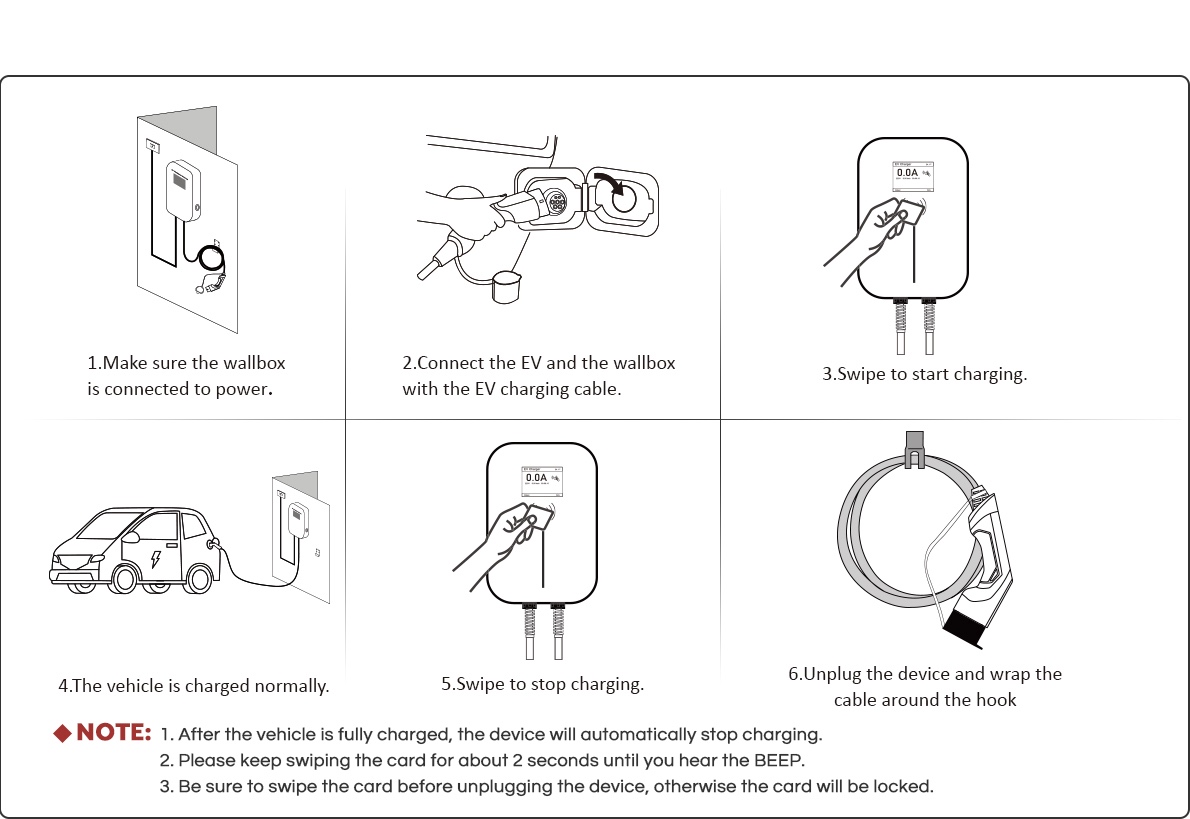

Usage

RFID Card EV Car Charging Station with 5m SAE J1772 Cable & IEC 62196 Cable usage.jpg

This is an APP wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The APP could show current, consumption and other detailed charging parameters. Also, those parameters could be set through the APP before charging. Automatic upgrade program could always keep latest version. The charger can be used with stand.
