80KW 100KW 120KW 140KW DC FAST CHARGER

Release time:2022-05-08Popularity:183

80KW 100KW 120KW 140KW DC FAST CHARGER

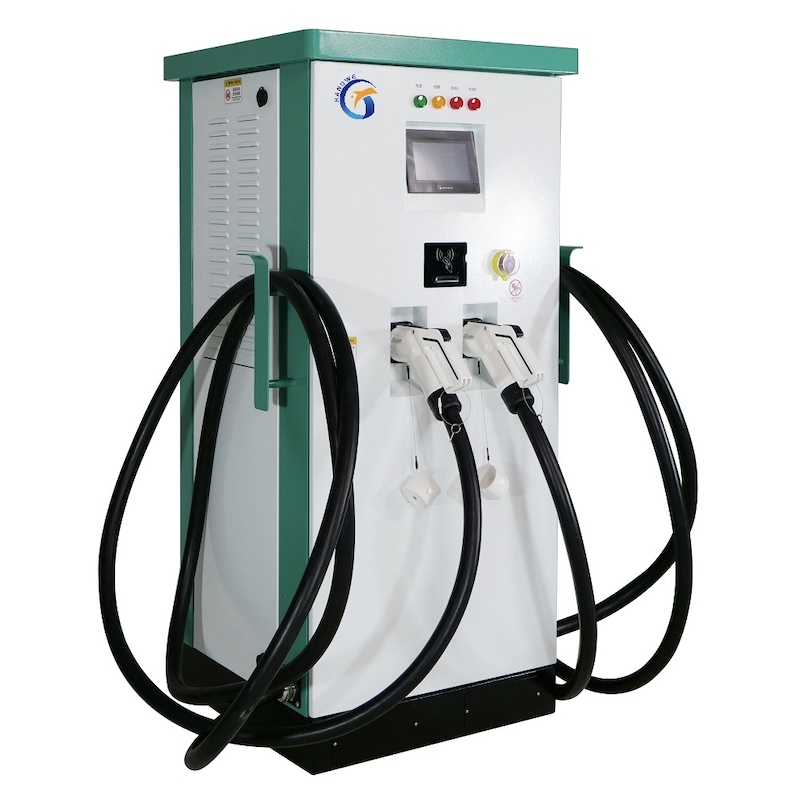

80KW 100KW 120KW 140KW DC FAST CHARGER.jpg


  • Modular design: convenient design for daily system upgrade and maintenance. Each module has undergone repeated iterations and long-term verification to ensure the stability and reliability of the system.

  • Rugged housing: Its metal casing and semi-gross coating ensure the appearance of the texture and meet the long term outdoor use.

  • OPP 1.6: Compliant with OCPP 1.6 and above enables it to connect to the global EV charge management platform without additional integration and matching.

  • CCS 2 charging outlets: it makes it suitable for various EV charging simultaneously and reduce unnecessary extra charger purchase costs.

  • 7-inch display and unique Ul: it offers good user-friendly and convenient charging operation. It can display at outdoor high-brightness environment and adapt to -30~70°C environment.

  • Lit LED light strip: it allows users to quickly find the location of the charger at night and perform accurate operations.

  • Linux embedded operating system: with 32-bit embedded processor as the core unit, supports Ethernet, 3/4G communication.

  • Remote upgrade and local upgrade functions : it can upgrade the charger software locally or remotely when needed.

  • 1.0S multi-function watt-hour meter: it can help accurately measure the charging

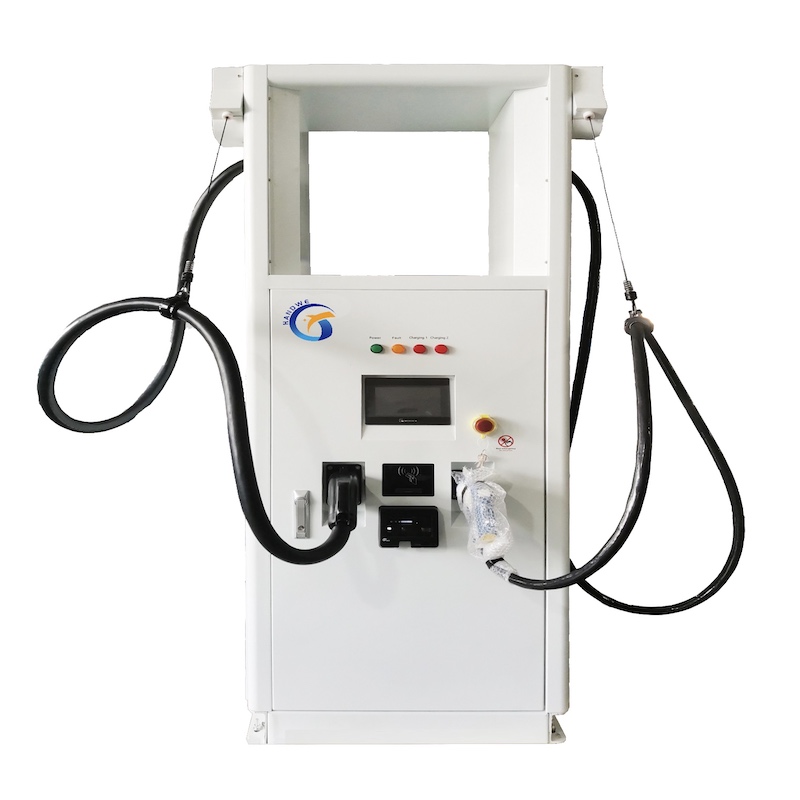

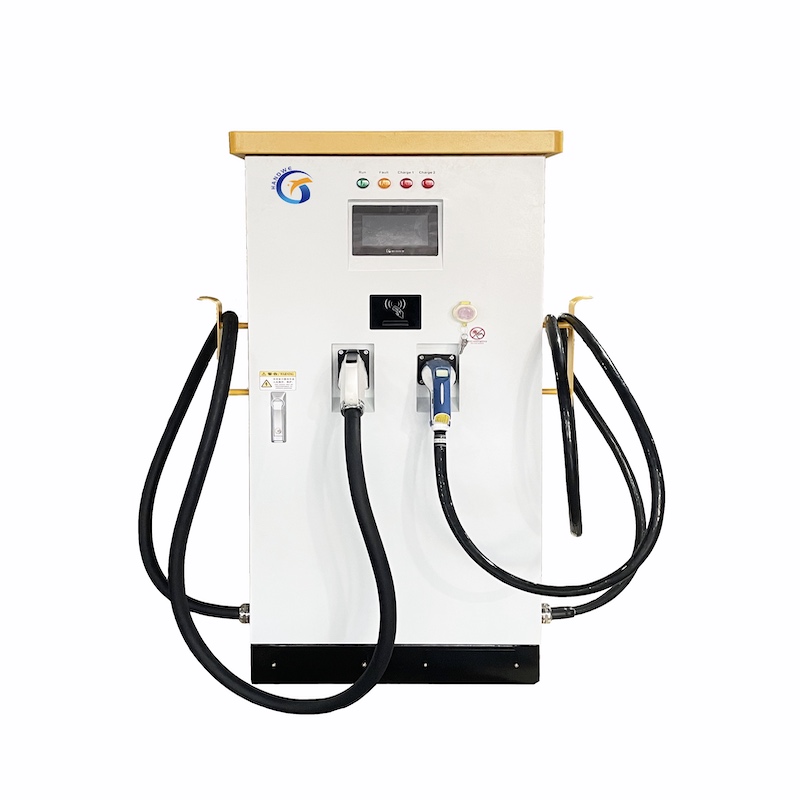

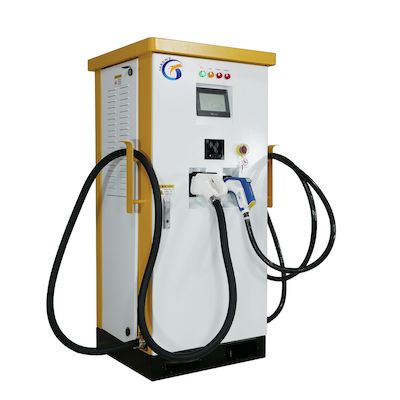

dc charger two charging guns.pngDCFC Chargers two charging guns.jpgHandwe dc fast chargers.jpeg



Rated power: DC 80kw; 100kw;  120kw; 160kw;

Input Voltage: DC+AC Input System Mode; AC 380V±15%, 50/60Hz; DC 200-900V DC

Rated output voltage: 200-750V

Rated output current: 5-300A

Output voltage: DC300~750V

DC Output: Charging standard: CCS 2 / Combo2; CCS 1 DC; CHAdeMO DC; Type-1 (optional)

Efficiency: Above 95% (under rated current output)

AC circuit DC circuit insulation: Insulator

Operation: touch screen, Operating in fully automatic mode, with function of reporting, control and self.diagnostics, communication and data transfer, galvanic isolated and secure

Noise: Below 65dB (under rated current output)

Protection grade: IP55

Others: Working temperature range: -35°C~+55°C Working humidity range: 5~95 %; Below altitude 2,000m (reduce the rating according to specifications when altitude is over 2,000m) Network connection: 4G modem. 10/100 Base-T Ethernet. RFID system: ISO/IEC 14443A/B, ISO/IEC 15393, NFC, CE Compliance and safety

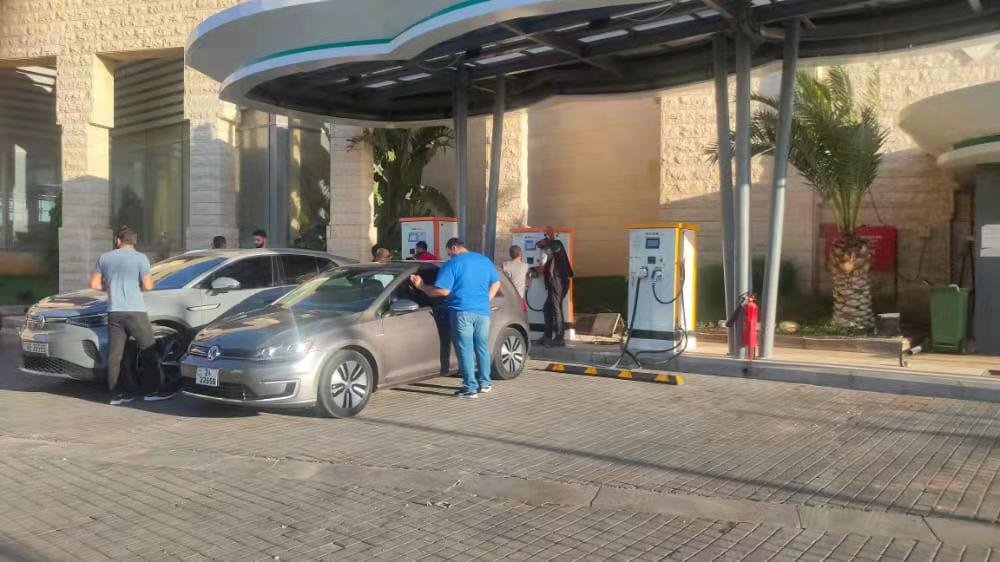

Installing dc fast charger site.jpeg
