16A 32A RFID Card EV Wallbox Charger with IEC 62196-2 Charging Outlet

Release time:2021-08-29Popularity:124

RFID EV charging wallbox, which can effectively prevent unauthorized personnel from using the charging equipment.

It's divided into ON/OFF version and billing version.

Its simple operation and management for billing version only take 1 minute to learn .

It has two connection modes: Mode A and Mode C.

Its working voltage ranges from 110V to 440V (±10%).

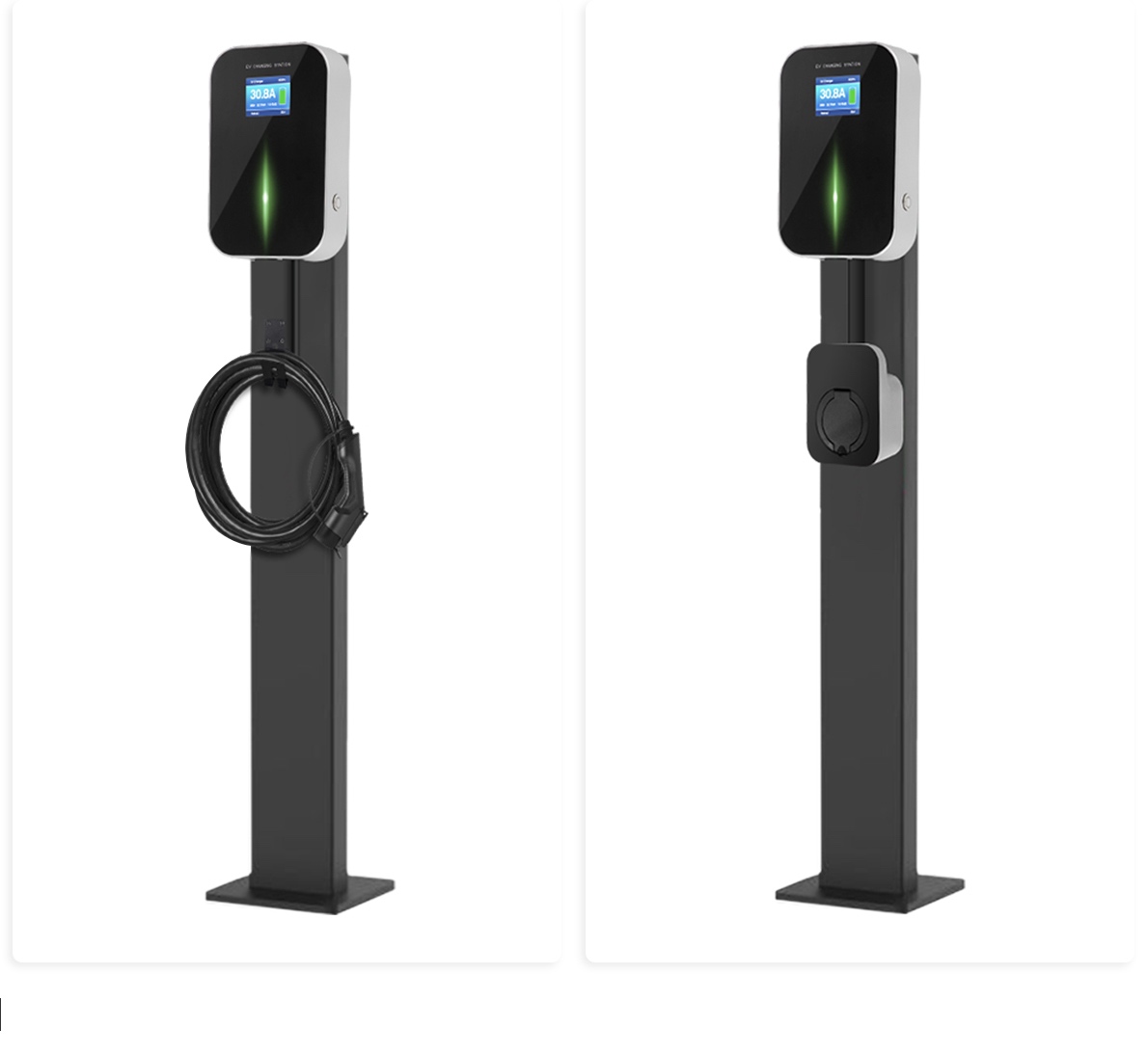

It can be installed on the wall or used with a pillar.The installation is easy and convenient.

It's suitable for use in companies and small paid parking lots.

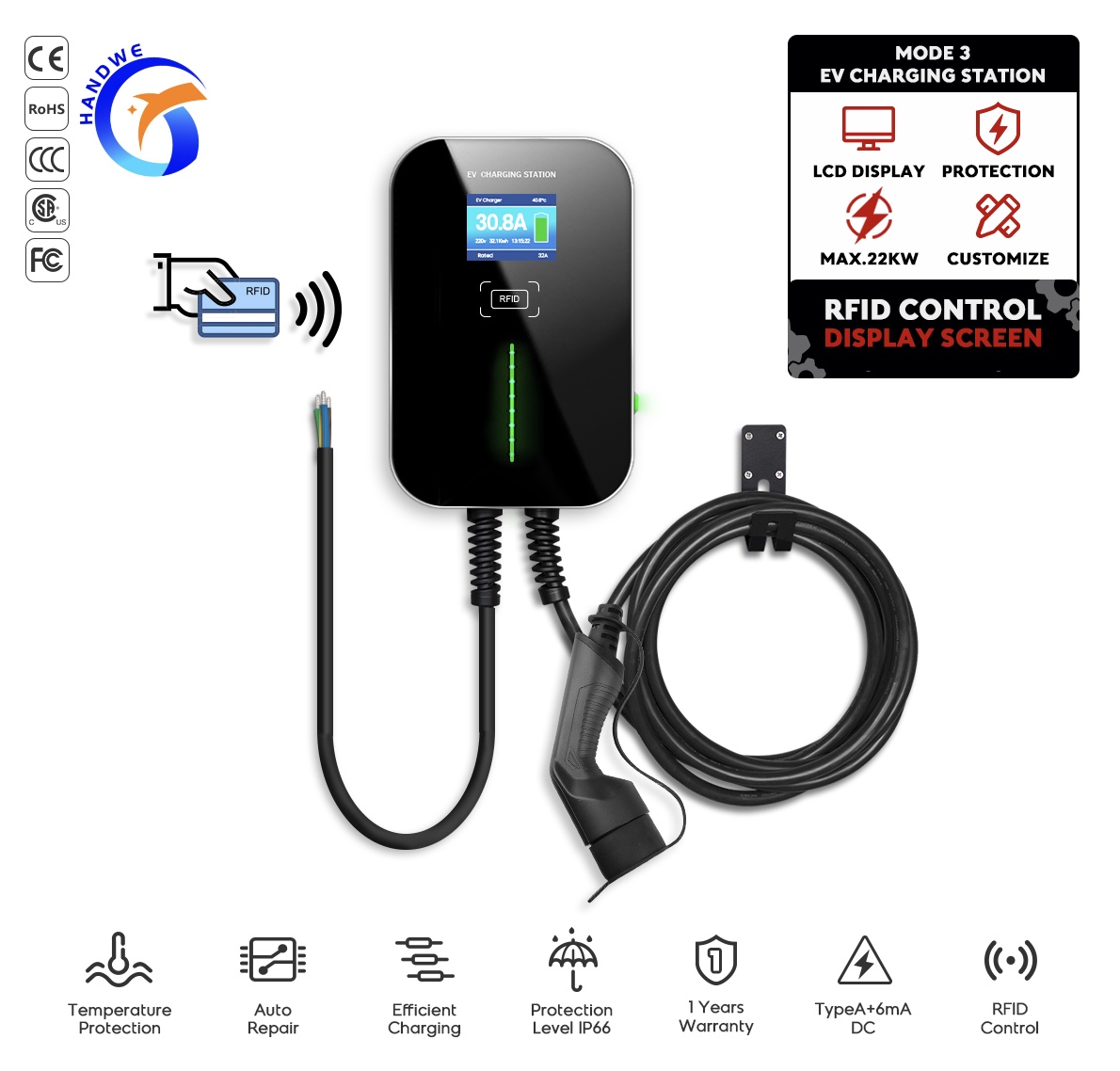

16A 32A RFID Card EV Wallbox Charger with IEC 62196-2 Charging Outlet.jpg

16A/32A RFID Card EV Wallbox Charger(3.6kW 7.2kW 11kW 22kW)with IEC 62196-2 Charging Outlet

This is an RFID Card wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The LCD display can show the detailed charging status. To operate RIFD function, it has a card writer and management program. The charger can be used with stand.

Lead_Time:15 Days

shipping:Express delivery

Current:16A , 32A

Power:3.6kW , 7.2kW , 11kW , 22kW

Customization:Color,Logo

Cable Length:6.1m

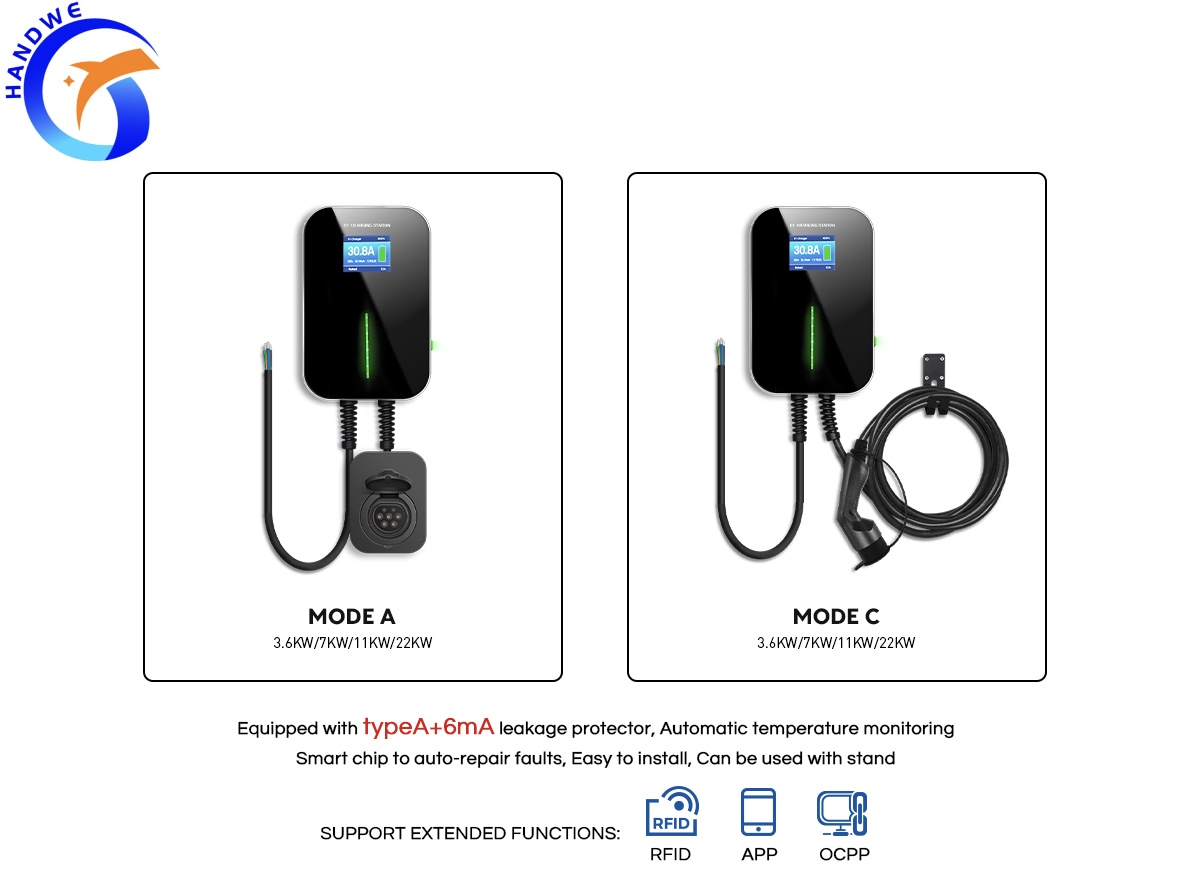

Mode A and Mode C charging box.jpg

CHARGING BOX

LCD screen Easy installation

High compatibility

Waterproof grade:IP67

Structural strength:IK 10

Small size,Easy to transport

Over- voltage protection/lightning protection

Certified by authorities (CSA, CE, FCC, NTC, CCC)

Real-time monitor on charging temperature

Automatic error correction & reboot system


EV CONNECTOR

Silver-plated design

Built in temperature monitoring chip

Automatic remove impurities

Good conductivity



TPU CABLE

Durable and anticorrosion

Easy to bend,Long service life

High resistance to cold /high temperature


CORE ADVANTAGE

TypeA+DC 6mA

Directional current regulation

Repair the disorder of capacitor units

Full-link temperature monitoring system

Strong Expansibility(Blue tooth,WiFi, RFID,APP, OCPP)

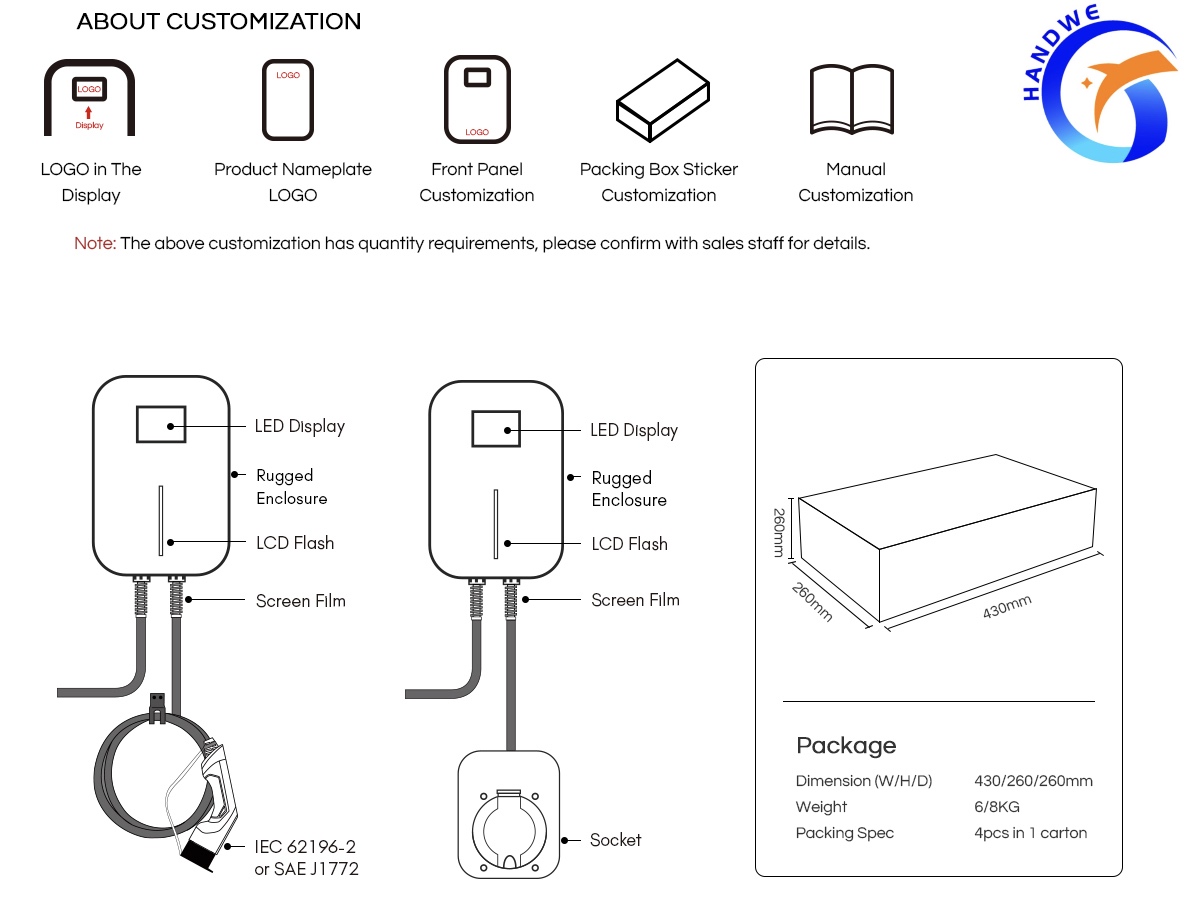

ev charging box package.jpg

Technical Data

Input Voltage/Output voltage 100V /250V /440V (Three Phase)

Input frequency 47~63Hz

Max. output power 7.6kW/22kW(three phase)

Max. output current 32A

Charging interface type IEC 62196-2, SAE J1772

Working Environment

Protection degree IP67

Environment temperature -40℃ ~ +80℃

Relative humidity 0-95% non-condensing

Maximum altitude <2000m

Cooling Natural air cooling

Standby power consumption <8W

Function and Accessory

Ethernet/WIFI/4G/Bluetooth No/Yes/Opt/Yes

LCD 3.5-inch color display

RCD Type A / Type A+ 6mA

LED Indicator light Yes

Intelligent power adjustment Yes

RFID Yes

APP    Opt

Certificate

CE, FCC, ROHS, CCC, CSA, IK10, IP67

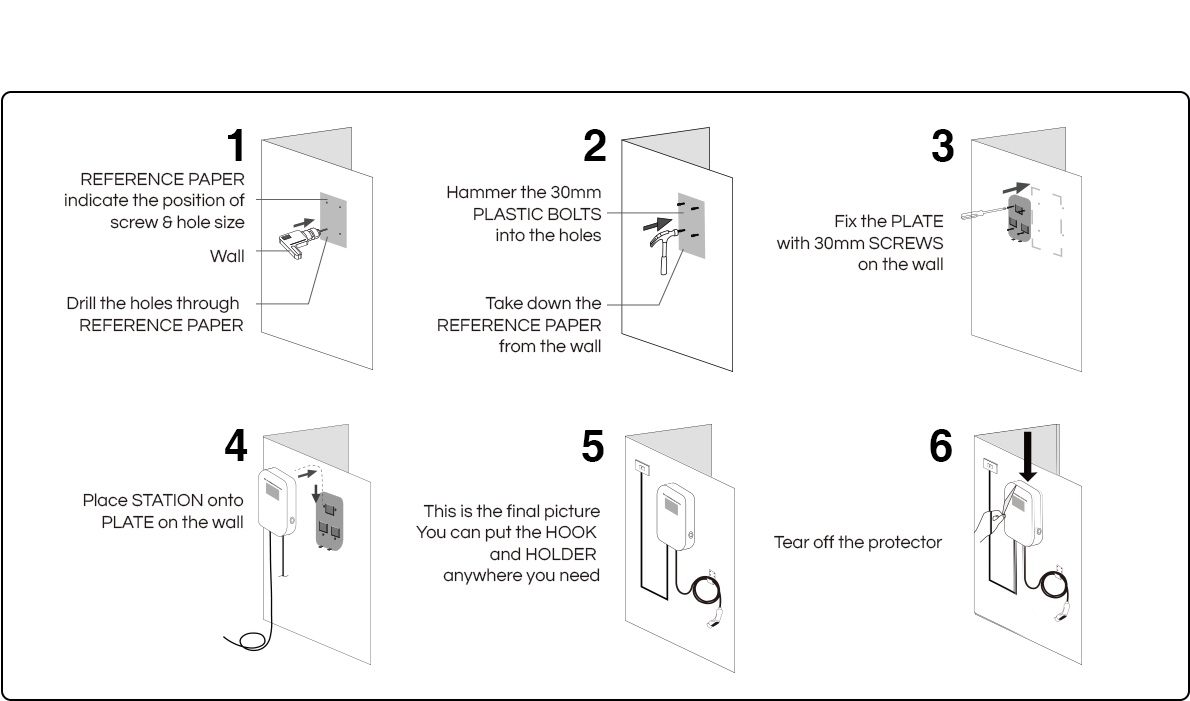

Installation

ev charging box installation.jpg

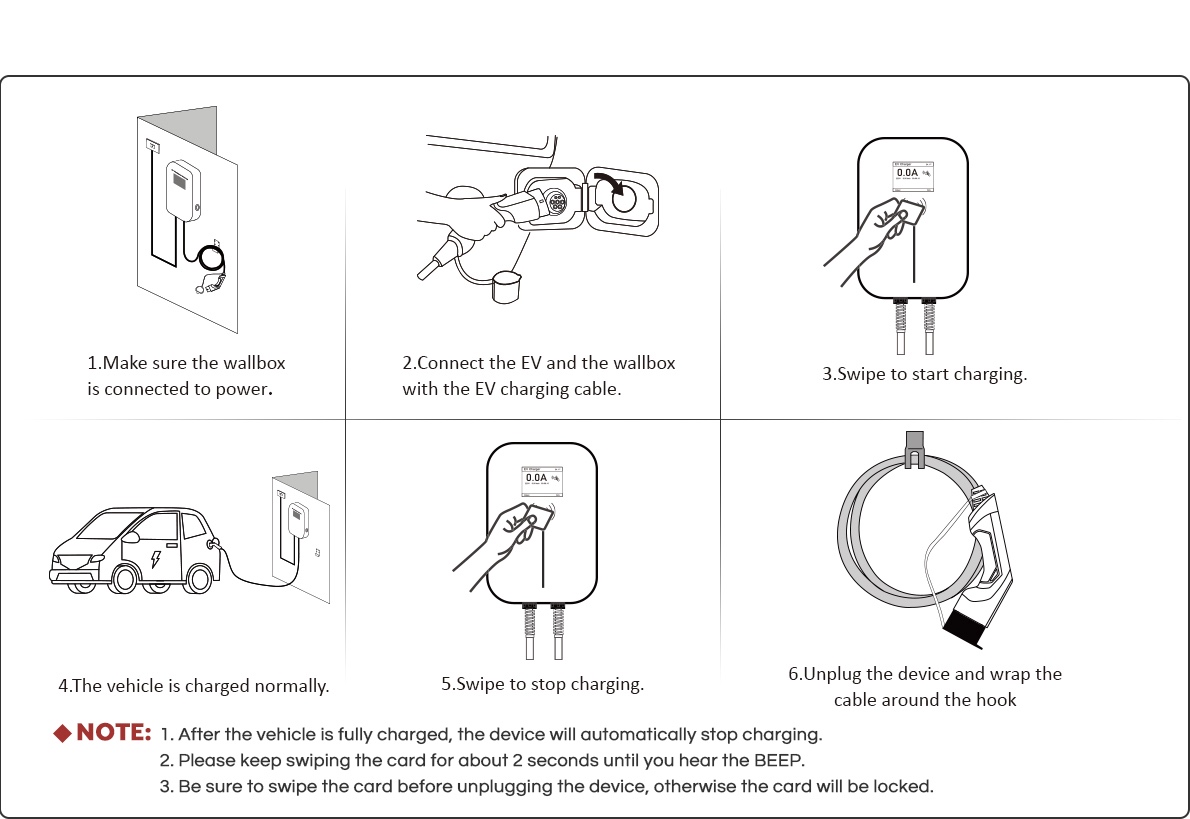

Usage

ev charging station usage.jpg

This is an APP wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The APP could show current, consumption and other detailed charging parameters. Also, those parameters could be set through the APP before charging. Automatic upgrade program could always keep latest version. The charger can be used with stand.
