16A 32A APP Wifi EV Wallbox charging box with IEC 62196-2 Outlet

Release time:2021-08-29Popularity:84

APP EV charging wallbox: charging parameters can be set directly through APP.

It supports both iOS and Android systems.

It's powerful and easy to operate. This APP wallbox can be connected to the device via bluetooth.

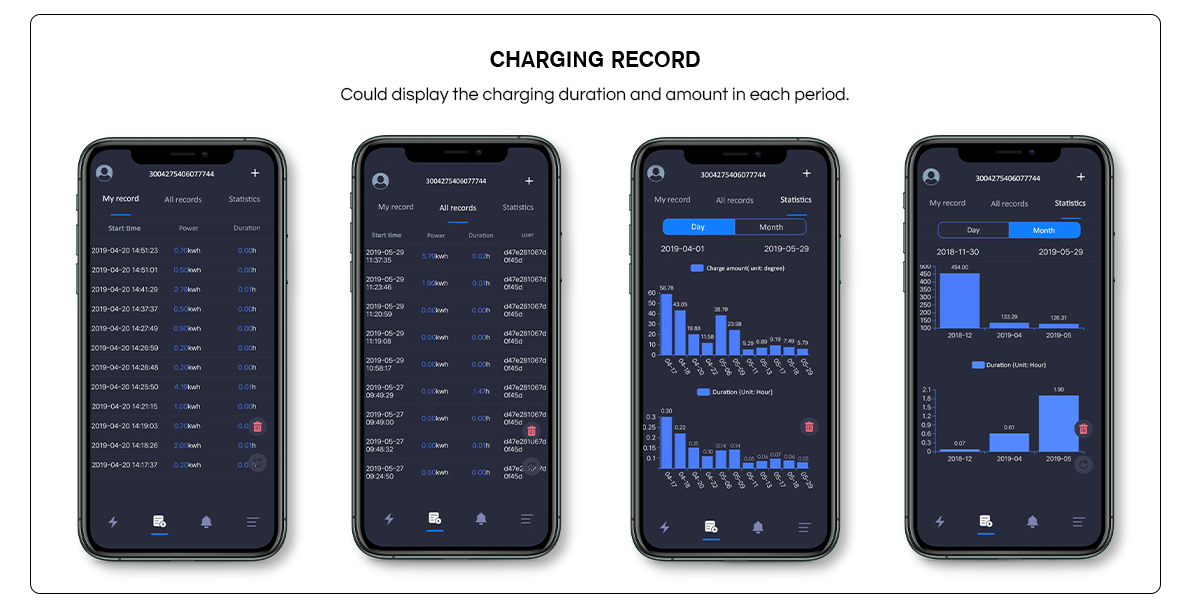

Charging records can be exported and the system can be remotely updated.

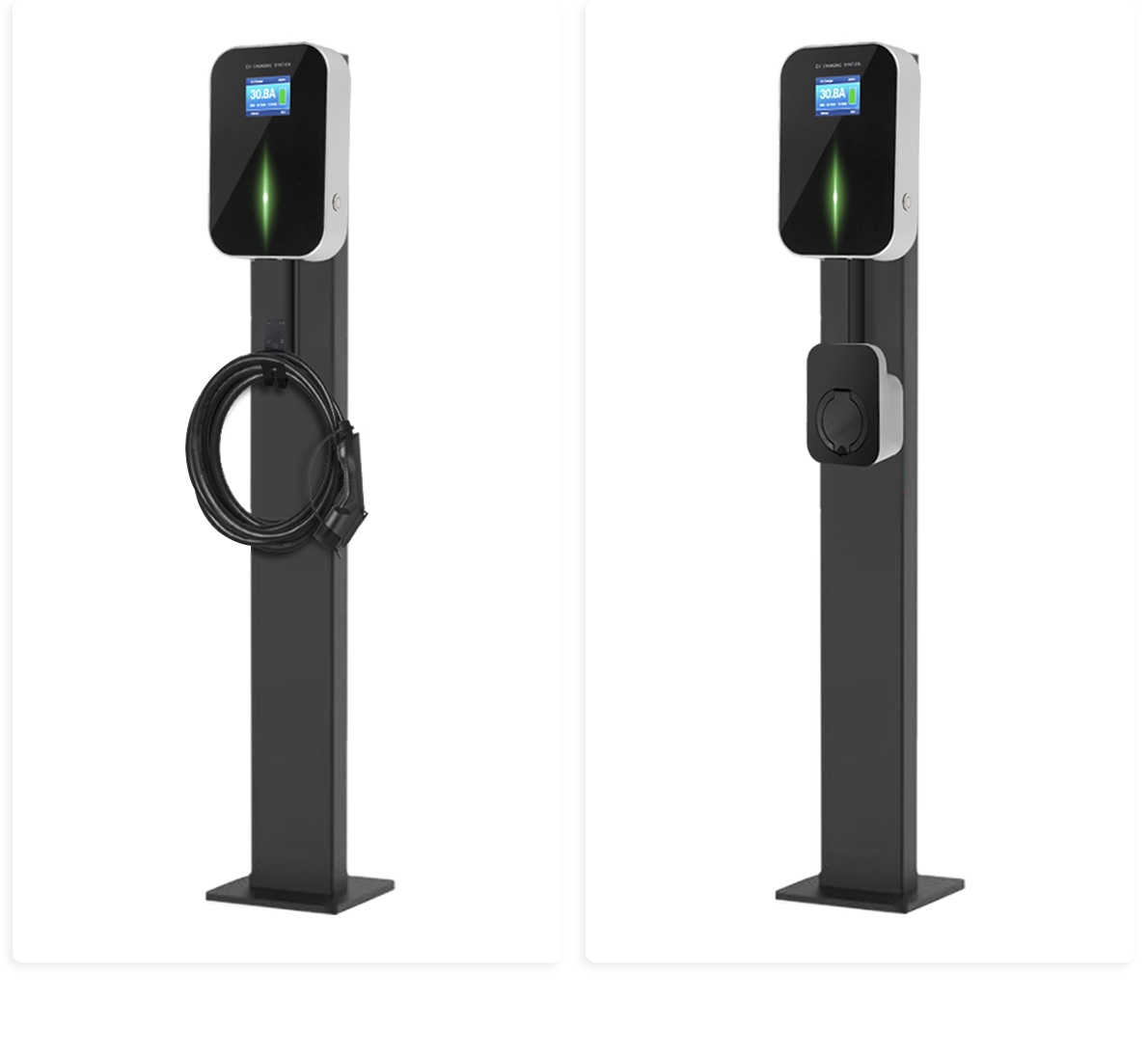

This APP wallbox can be installed on the wall or used with a pillar. The installation is easy and convenient.

Its working voltage ranges from 110V to 400V (±10%).

It's equipped with complete protection mechanism and can be used in any outdoor environment.

This APP wallbox is suitable for home use. And the Tesla app wallbox, app bmw wallbox and so on.

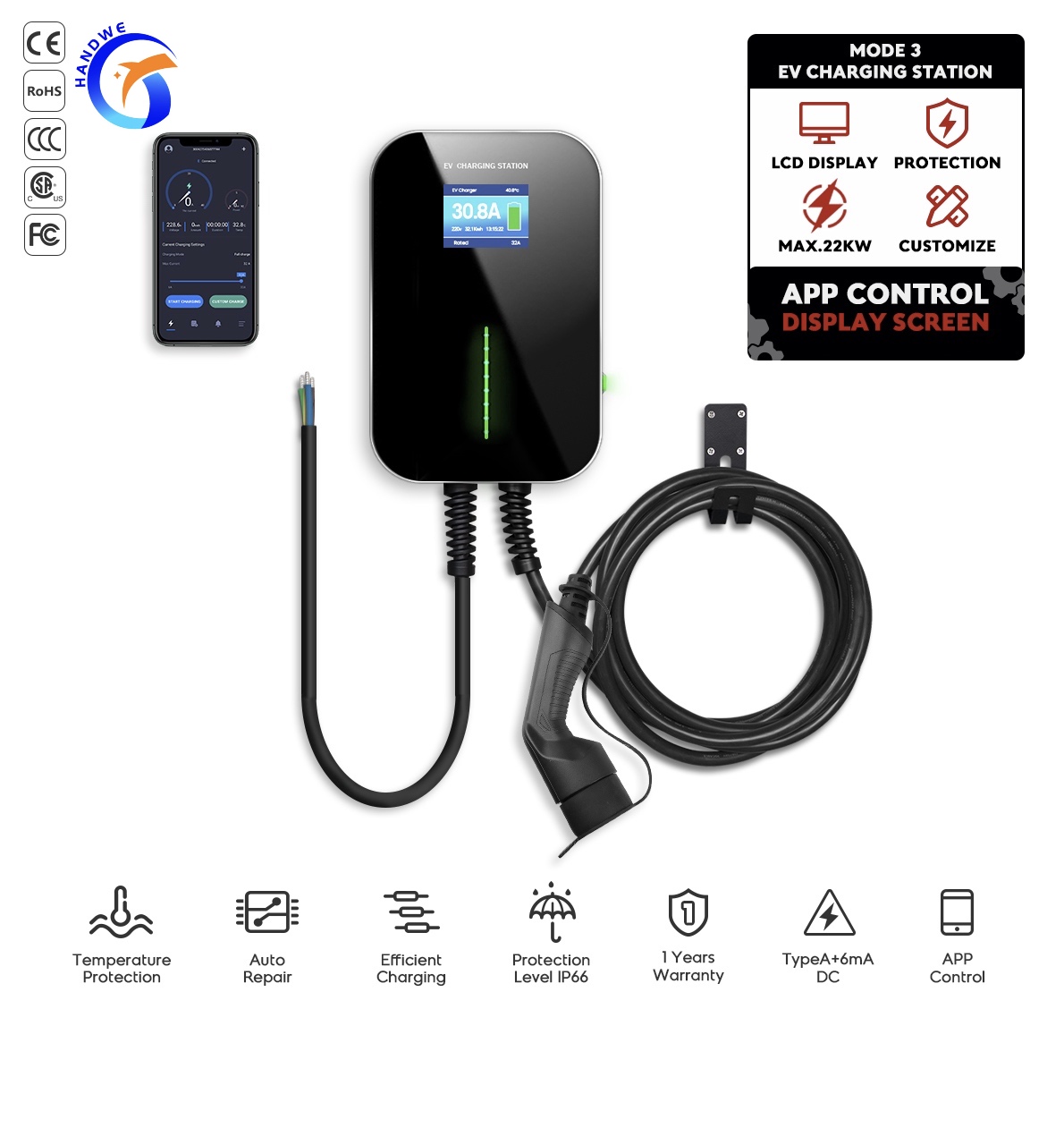

16A 32A APP Wifi EV Wallbox charging box with IEC 62196-2 Outlet.jpg

IP66 EV Charger(16A 32A 3.6kW 7.2kW 11kW 22kW)with 20ft SAE J1772 & IEC 62196-2 Plug

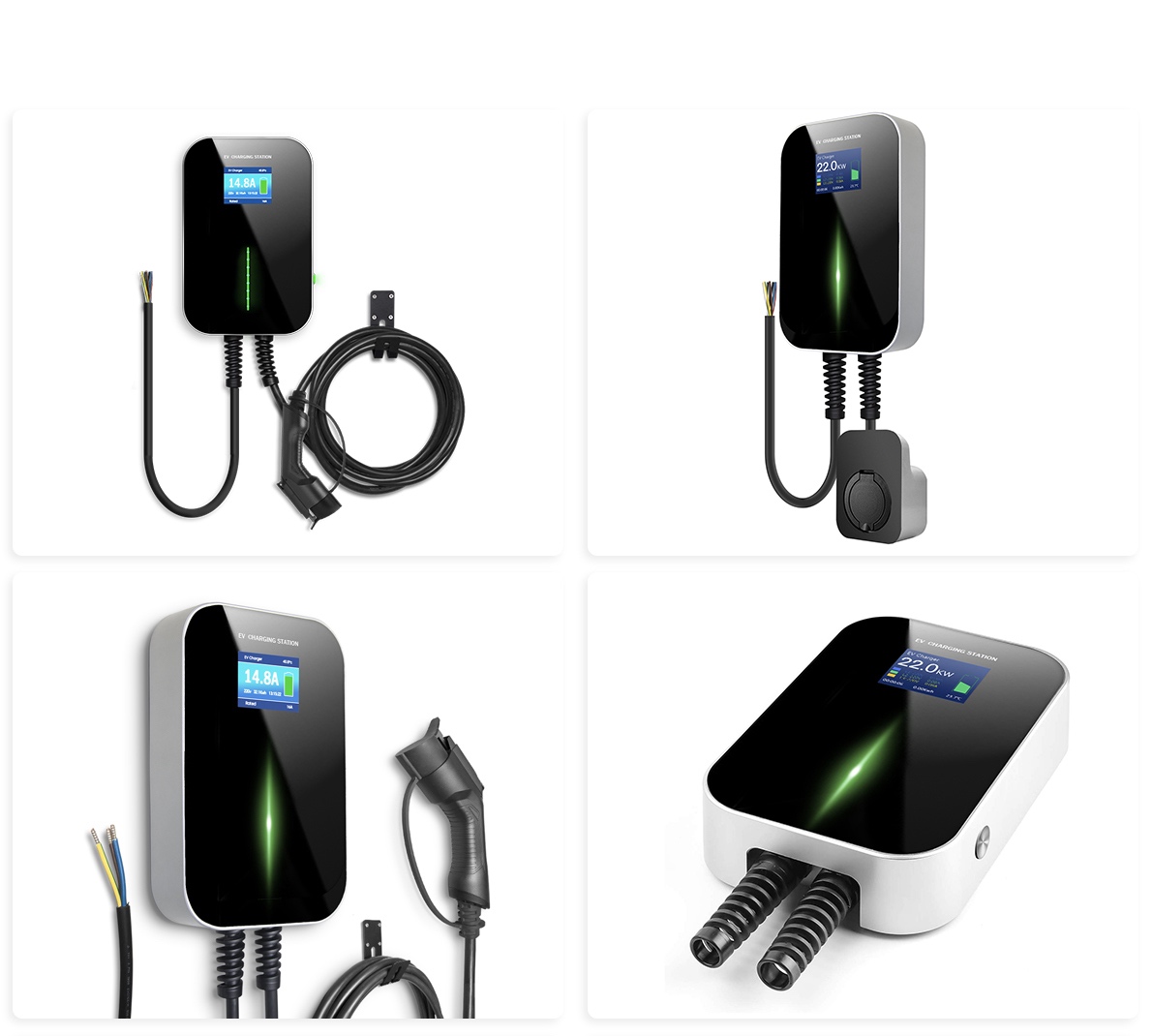

This is a basic wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The LCD display can show the detailed charging status. The charger can be used with stand.

Lead_Time:15 Days

shipping:Express delivery

Current:16A , 32A

Power:3.6kW, 7.2kW,11kW, 22kW

Customization: Color,Logo

Cable Length: 6.1m

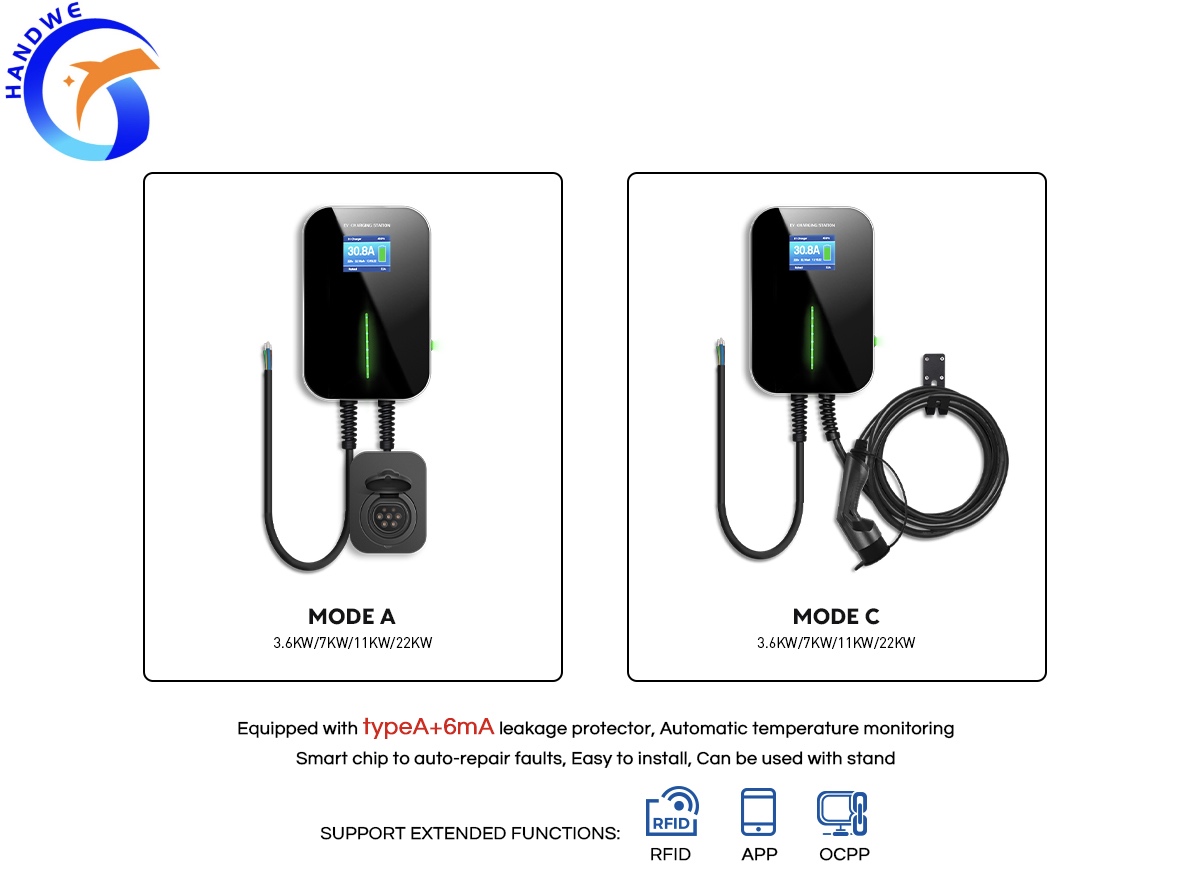

16A 32A APP Wifi EV Wallbox charging box with IEC 62196-2 Outlet mode A and C.jpg

CHARGING BOX

LCD screen Easy installation

High compatibility

Waterproof grade:IP67

Structural strength:IK 10

Small size,Easy to transport

Over- voltage protection/lightning protection

Certified by authorities (CSA, CE, FCC, NTC, CCC)

Real-time monitor on charging temperature

Automatic error correction & reboot system


EV CONNECTOR

Silver-plated design

Built in temperature monitoring chip

Automatic remove impurities

Good conductivity



TPU CABLE

Durable and anticorrosion

Easy to bend,Long service life

High resistance to cold /high temperature


CORE ADVANTAGE

TypeA+DC 6mA

Directional current regulation

Repair the disorder of capacitor units

Full-link temperature monitoring system

Strong Expansibility(Blue tooth,WiFi, RFID,APP, OCPP)

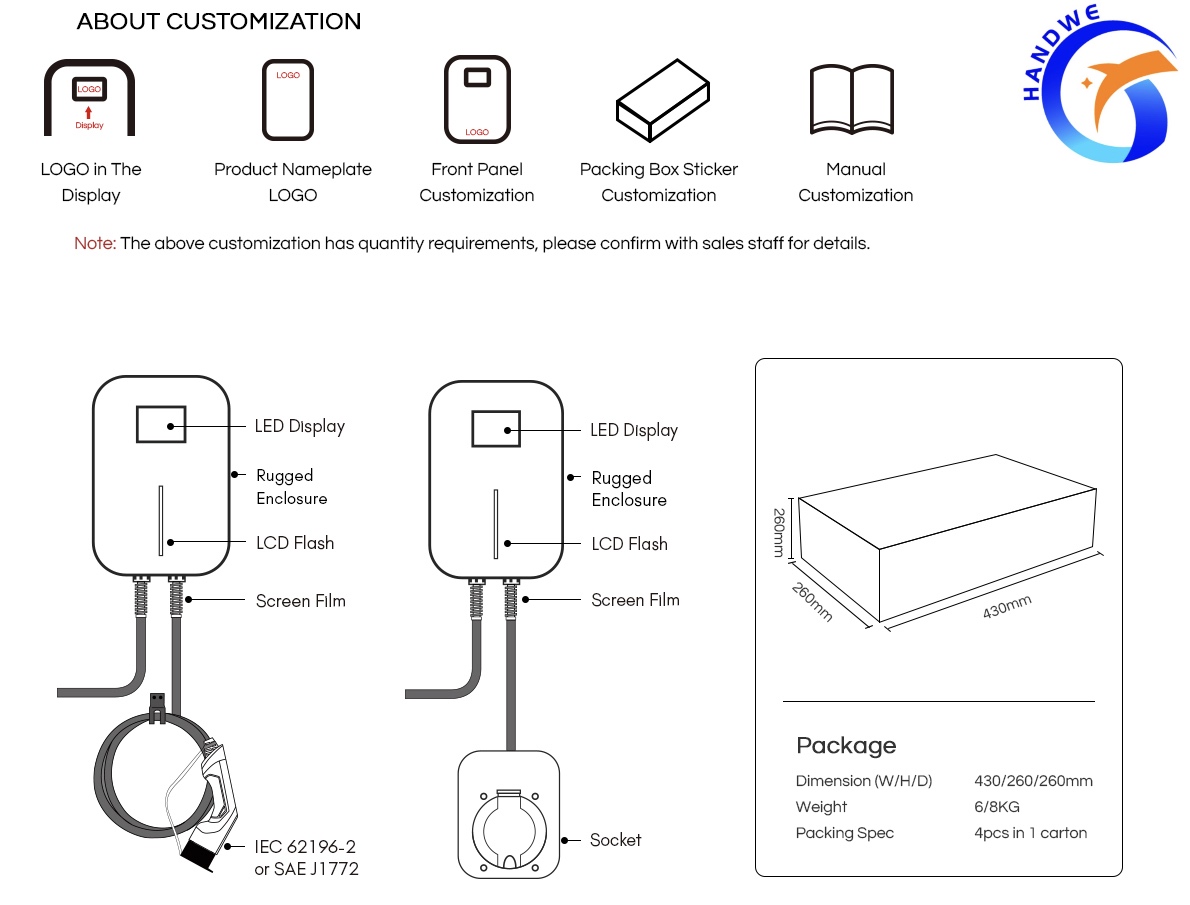

16A 32A APP Wifi EV Wallbox charging box with IEC 62196-2 Outlet package.jpg

Technical Data

Input Voltage/Output voltage 100V /250V /440V (Three Phase)

Input frequency 47~63Hz

Max. output power 7.6kW/22kW(three phase)

Max. output current 32A

Charging interface type IEC 62196-2, SAE J1772

Working Environment

Protection degree IP67

Environment temperature -40℃ ~ +80℃

Relative humidity 0-95% non-condensing

Maximum altitude <2000m

Cooling Natural air cooling

Standby power consumption <8W

Function and Accessory

Ethernet/WIFI/4G/Bluetooth No/Yes/Opt/Yes

LCD 3.5-inch color display

RCD Type A / Type A+ 6mA

LED Indicator light Yes

Intelligent power adjustment Yes

RFID Opt

APP    Yes

Certificate

CE, FCC, ROHS, CCC, CSA, IK10, IP67

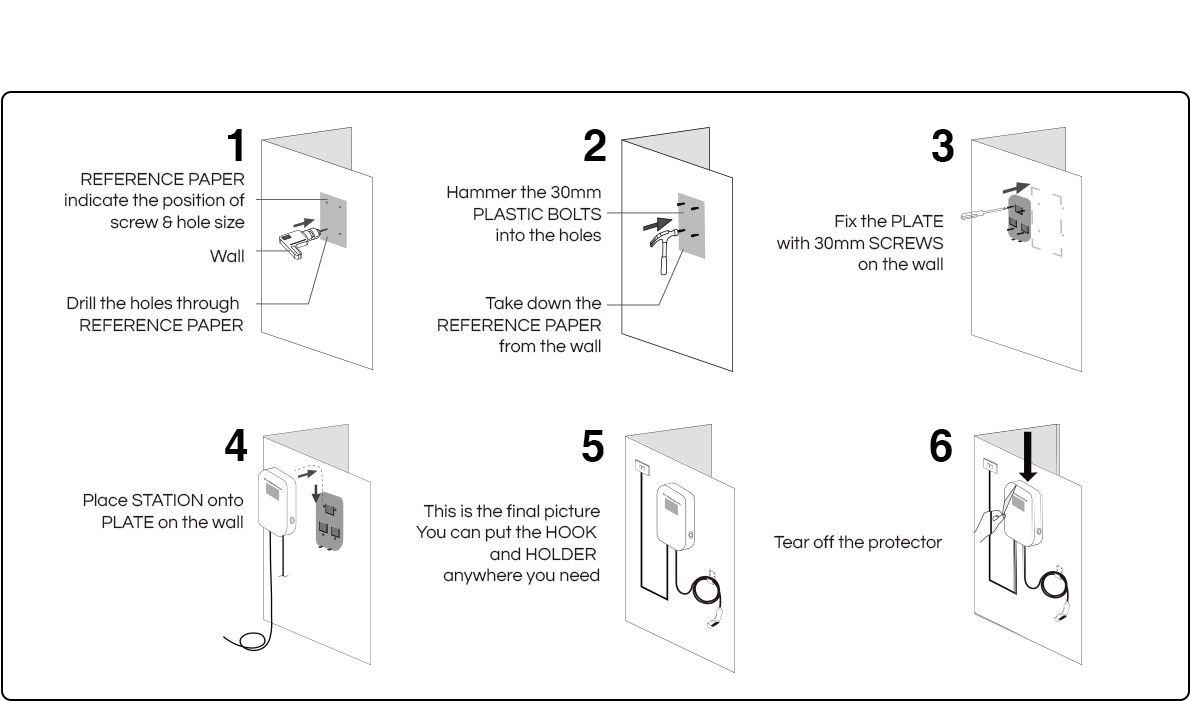

Installation

charing ev box installation.jpg

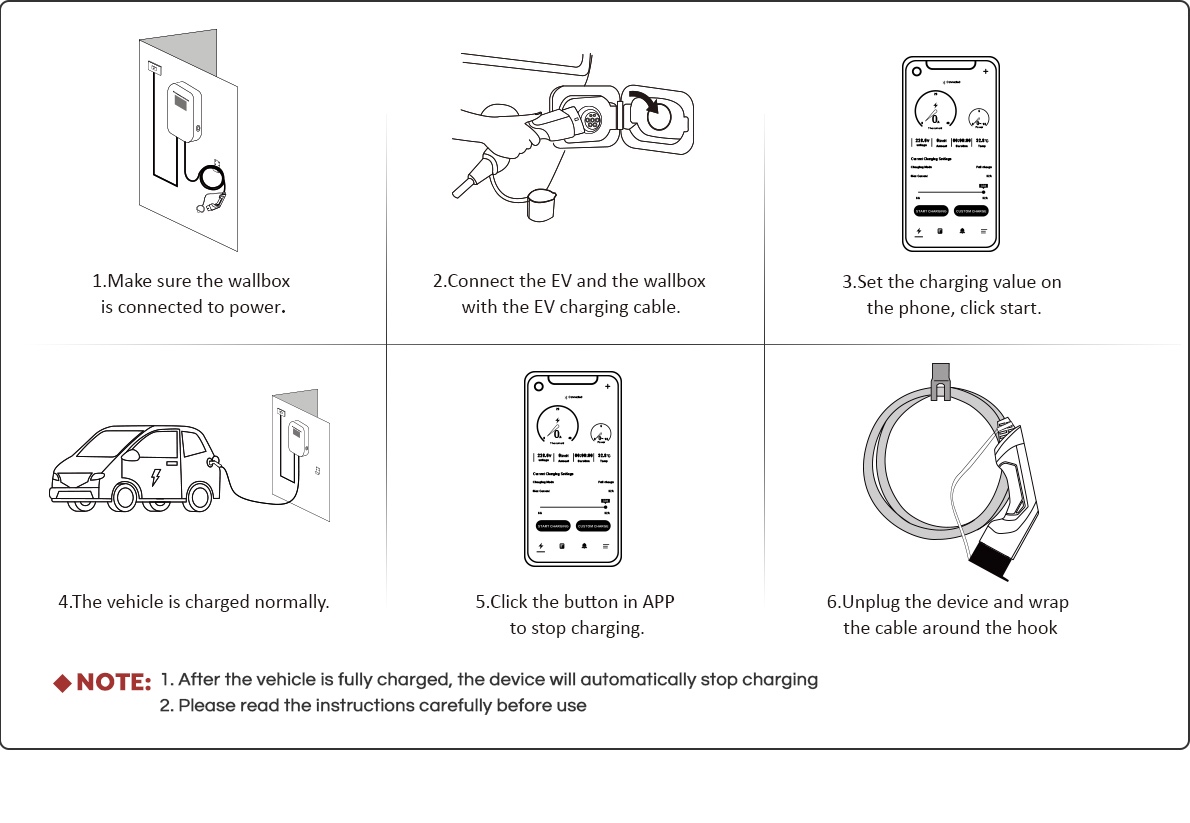

Usage

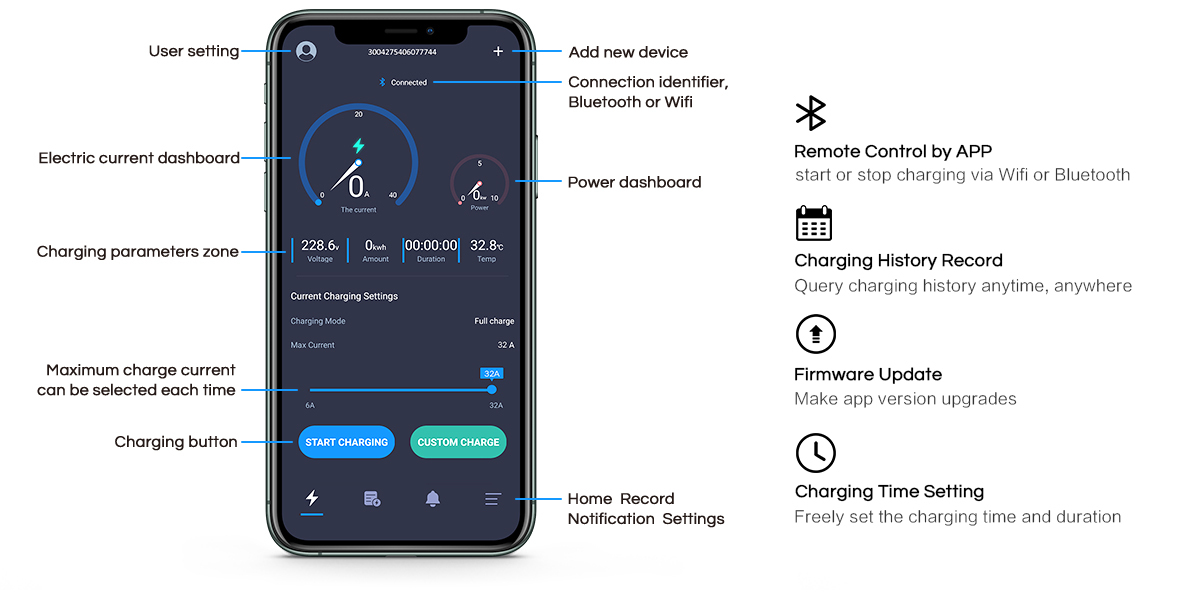

This is an APP wall-mount charger and suitable for home use. It is easy to install, stable in performance, and has a complete protection mechanism. The APP could show current, consumption and other detailed charging parameters. Also, those parameters could be set through the APP before charging. Automatic upgrade program could always keep latest version. The charger can be used with stand.

EV charing box control by phone APP.jpeg

APP control ev charing box.jpeg
