15KW 20KW 30KW 50KW EV Charging Module

Release time:2022-05-13Popularity:511

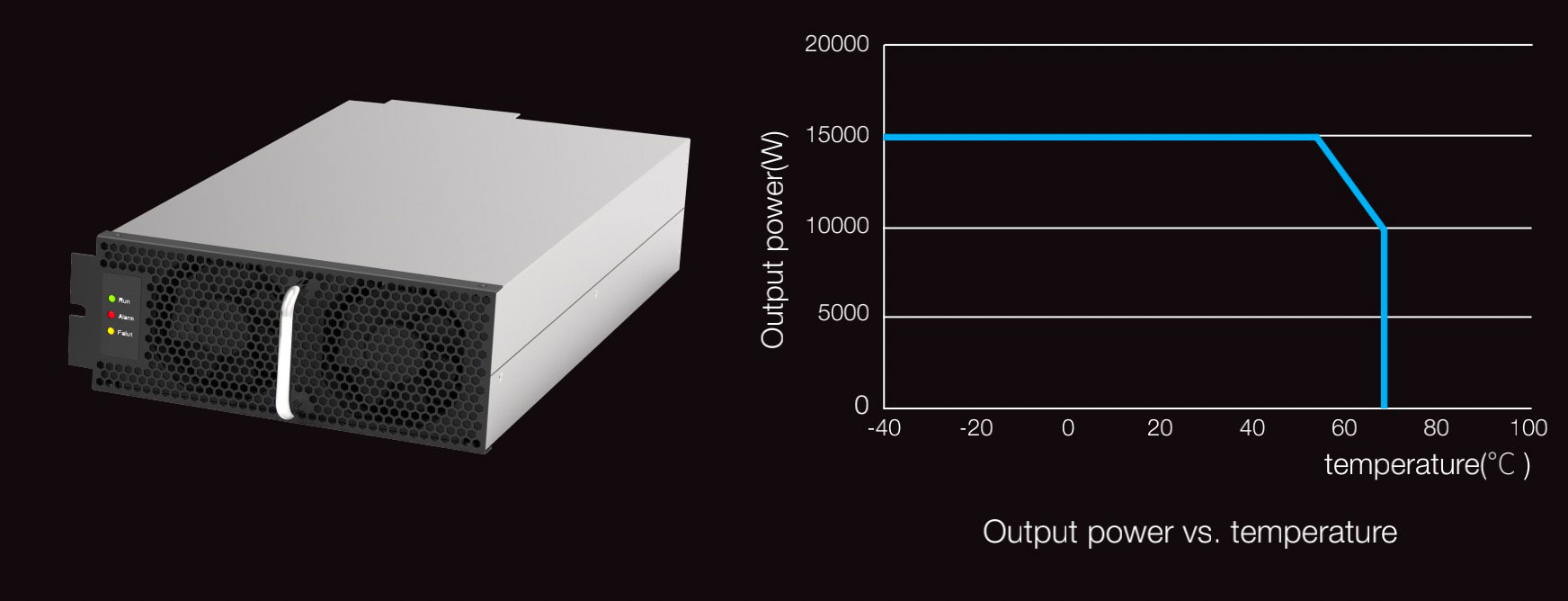

15KW 20KW 30KW 50KW EV Charging Module

15KW 20KW 30KW 50KW EV Charging Module.jpg

The charging module is known as the "heart" of the charging pile. It is an important part of the DC fast charging. It is the seamless docking charging of the device and the vehicle for AC-DC conversion. As the core component of the charging pile, the charging module belongs to a large category of power products, which was born out of the modular application of early power supply and communication power supply. The charging module not only provides energy and power, but also controls and converts the circuit, which ensures the stability of the power supply circuit and is suitable for charging various types of power batteries; the performance of the module not only directly affects the overall performance of the charging pile, but also relates to charging safety. The problem is at the heart of building a high-power charging infrastructure.


15KW EV Charging Module

Feature

  • Output capacity: 15kW;Efficiency: 95%

  • Output voltage range:200V-500VDC,200V-750VDC,1 50V-1000VDC

  • Compatible standard: CCS, CHAdeMO, Combo, GB/T

  • Cooling: forced air cooling

15KW EV Charging Module.jpg

Model
DPM500/30
DPM750/20
DPM1000/15
Output capacity15KW
Input voltage
380Vac three-phase three-wire
Input voltage range
260V-530V(260-304V,output power derating 50%)
Input frequency
50/60HZ
Input power factor
> 0.99
Input current harmonic
≤ 3%
Efficiency
95%
Output voltage range
200V-500VDC
200V-750VDC
150V-1000VDC
Voltage regulation accuracy
< 0.5%
Current regulation accuracy
< 0.5%
Peak-to-Peak noise voltage of DC output
< 1%
Startup&Shutdown overshoot
< 1%
Soft start time
≤ 5S
Operating temperature
-20°C-+60°C,during 50°C-60°Cderating to 60%
Ambient temperature
-40°C-+70°C
Relative humidity
0-95%,40±2°C,non-condensing
Altitude
2000 meters
Dimension(W*D*H)
220*405*88mm
220*405*88mm
220*405*88mm
Weight
10kg
10kg
10kg


Dimension(W*D*H) 220*405*88mm 220*405*88mm 220*405*88mm

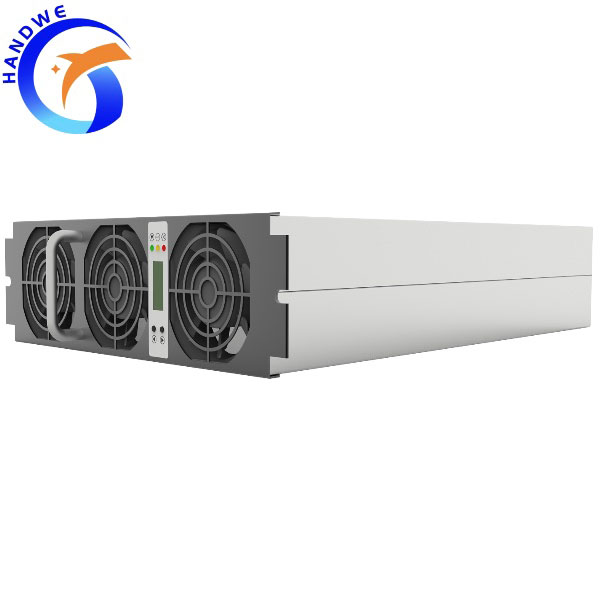

20KW EV Charging Module

Feature

  • Output capacity: 20kW;Efficiency: 96%

  • Output voltage range:50V-750VDC, 50V-1000VDC

  • Constant power range: 300V-750VDC,300V-1000VDC

  • Compatible standard: CCS, CHAdeMO, Combo, GB/T

  • Cooling: forced air cooling

20KW EV Charging Module.jpg

Model
DPM750/26
DPM1000/20
Output capacity20KW
Input voltage
380Vac three-phase three-wire
Input voltage range
260V-530V(260-304V,output power derating 50%)
Input frequency
50/60HZ
Input power factor
> 0.99
Input current harmonic
≤ 3%
Efficiency
96%
Output voltage range
50V-750VDC
50V-1000VDC
Voltage regulation accuracy
< 0.5%
Current regulation accuracy
< 0.5%
Peak-to-Peak noise voltage of DC output
< 1%
Startup&Shutdown overshoot
< 1%
Soft start time
≤ 5S
Operating temperature
-20°C-+60°C,during 50°C-60°Cderating to 60%
Ambient temperature
-40°C-+70°C
Relative humidity
0-95%,40±2°C,non-condensing
Altitude
2000 meters
Dimension(W*D*H)
218*463*87mm
218*463*87mm
Weight
12kg
12kg

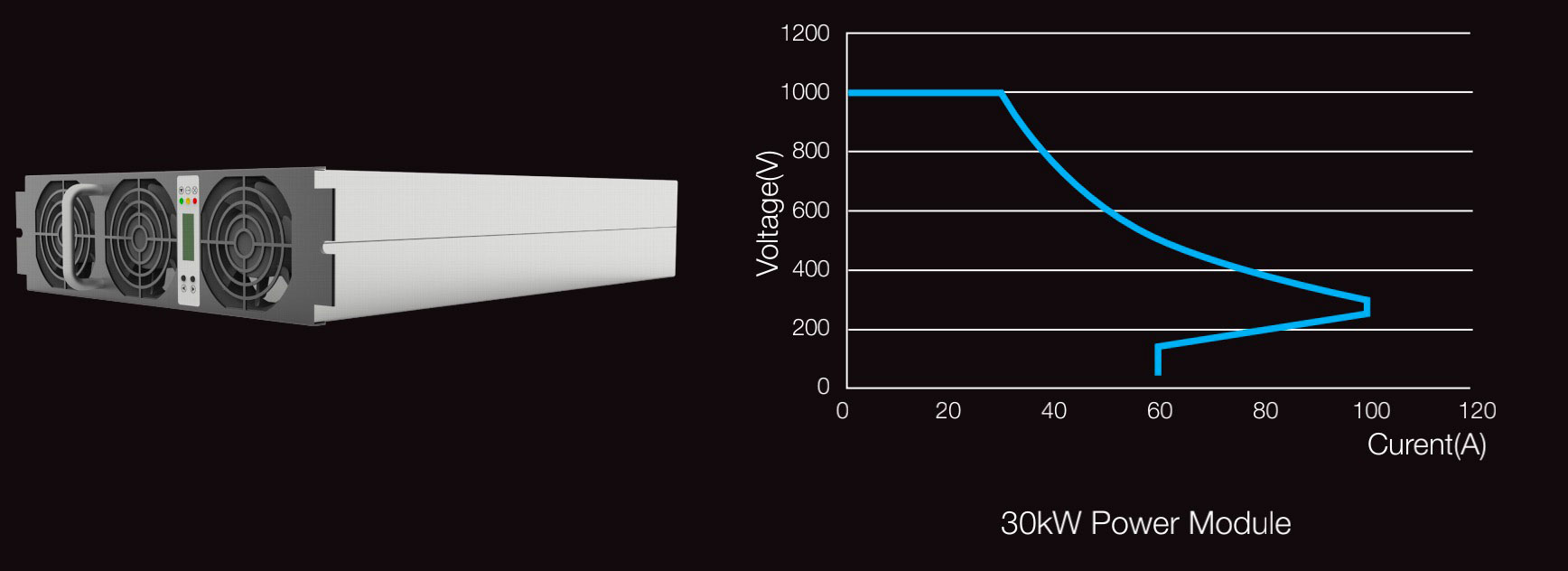

30KW EV Charging Module

Feature

  • Output capacity: 30kW;Efficiency: 96%

  • Output voltage range:50V-750VDC, 50V-1000VDC

  • Constant power range: 300V-750VDC,300V-1000VDC

  • Compatible standard: CCS, CHAdeMO, Combo, GB/T

  • Cooling: forced air cooling

30KW EV Charging Module.jpg


Model
DPM750/40
DPM1000/30
Output capacity30KW
Input voltage
380Vac three-phase three-wire
Input voltage range
260V-530V(260-304V,output power derating 50%)
Input frequency
50/60HZ
Input power factor
> 0.99
Input current harmonic
≤ 3%
Efficiency
96%
Output voltage range
50V-750VDC
50V-1000VDC
Voltage regulation accuracy
< 0.5%
Current regulation accuracy
< 0.5%
Peak-to-Peak noise voltage of DC output
< 1%
Startup&Shutdown overshoot
< 1%
Soft start time
≤ 5S
Operating temperature
-20°C-+75°C,during 55°C-75°Cderating to 60%
Ambient temperature
-40°C-+70°C
Relative humidity
0-95%,40±2°C,non-condensing
Altitude
2000 meters
Dimension(W*D*H)
300*460*87mm(Horizontal)
315*463*87mm(Vertical)
Weight
15kg
15kg































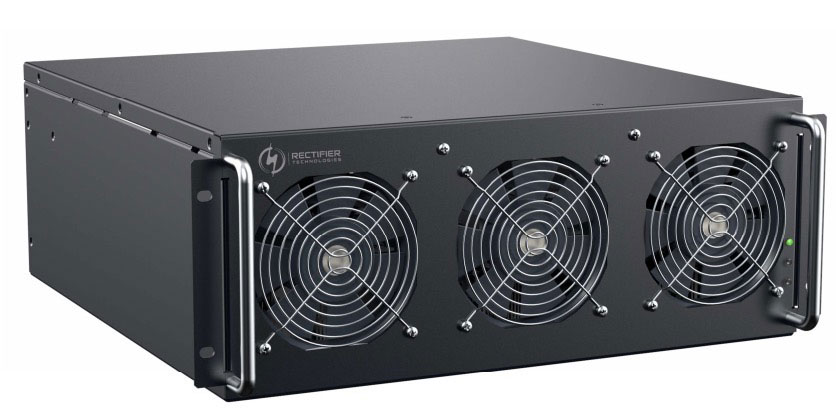

50KW EV Charging Module

Feature

  • Output voltage range: 200 – 920 VDC for CCS, 50 – 1000 VDC for CHAdeMO

  • Coming Very Soon!

50KW EV Charging Module.jpg
