EV Charging Gun Overview
EV Charging Gun another name Mode 3 EV charging cable types. Mainly for Europe market, it needs to be used with a Mode A EV charger. It mainly have two types, Type 1 to Type 2 and Type 2 to Type 2. The cable can be straight or spring. EV charging gun specifications, generally the length is 5m by default. It passed CE, TUV, CCC, ROHS etc certifications. Handwe EV Charging Gun are safe with reliable quality and perfect performance.

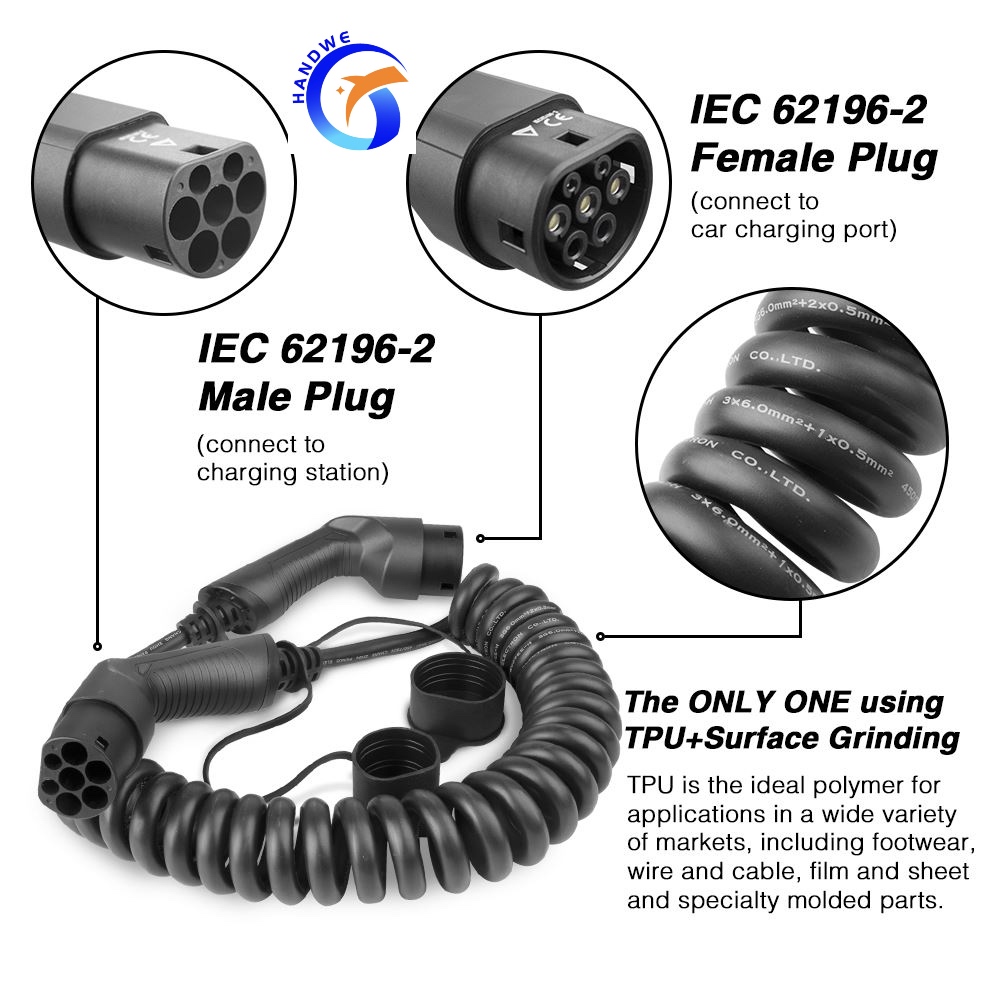

EV Cable (32A 7.2kW) with 16ft/5m IEC 62196-2 to IEC 62196-2 Coiled Cable
Products Model:HW2T232A1-S
7.2kW, with 5m black cable, meet IEC 62196-2 standard
Authoritatively certificated from CE
Specification
ITEM NAME | PLUG TYPE | CURRENT | PHASE | POWER |
HW2T216A1-S | TYPE 2 to TYPE 2 | 16A | 1 | 3.6KW |
HW2T216A3-S | TYPE 2 to TYPE 2 | 16A | 3 | 11.0KW |
HW2T232A1-S | TYPE 2 to TYPE 2 | 32A | 1 | 7.2KW |
HW2T232A3-S | TYPE 2 to TYPE 2 | 32A | 3 | 22.0KW |
HW1T216A0-S | TYPE 1 to TYPE 2 | 16A | / | 3.6KW |
HW1T232A0-S | TYPE 1 to TYPE 2 | 32A | / | 7.2KW |
Technical Data
Rated current: 32A
Working voltage: 250V AC
Insulation resistance: >500M Ω
Terminal temperature rise: <50K
Withstand voltage: 2500V
Contact impedance: 0.5m Ω Max
Mechanical life : plug in/out > 10000 times
Waterproof Protection degree: IP67
Maximum altitude: <2000m
Environment temperature: -40℃ ~ +75℃
Relative humidity: 0-95% non-condensing
Standby power consumption: <8W
Cable Sheath material: TPU/TPE 3*6.0mm²+1*0.5mm²
Cable Length: 5m or customize
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
Certificate: TUV UL CE FCC ROHS IK10 CCC

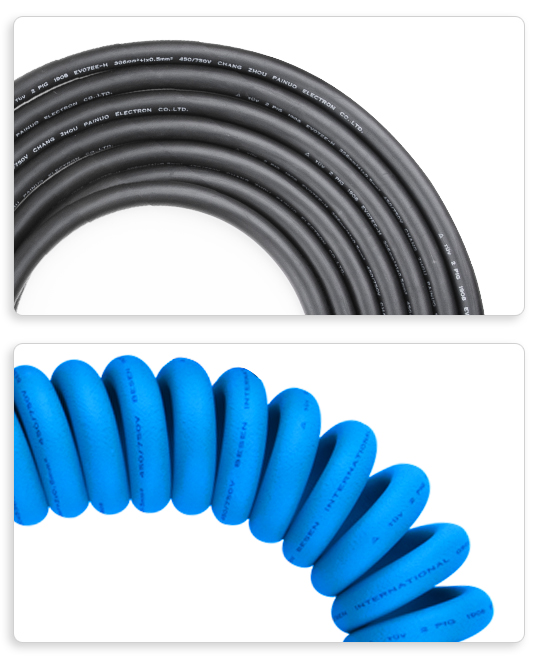

TPU CABLE
Stronger and anti-aging
Meet the newest EN standard
More environmentally friendly, halogen-free
More resistant to cold and keep flexible at -40℃
More resistant to bending and longer service life

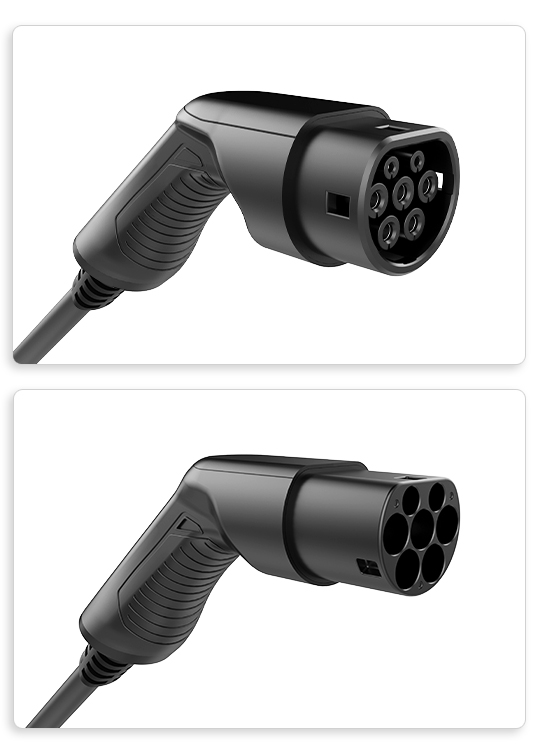

EV PLUG
Self-cleaning function on pins
Unique integrated design, stronger
Temperature monitoring on plugs (patented)
Better conductivity and higher energy transmission
efficiency

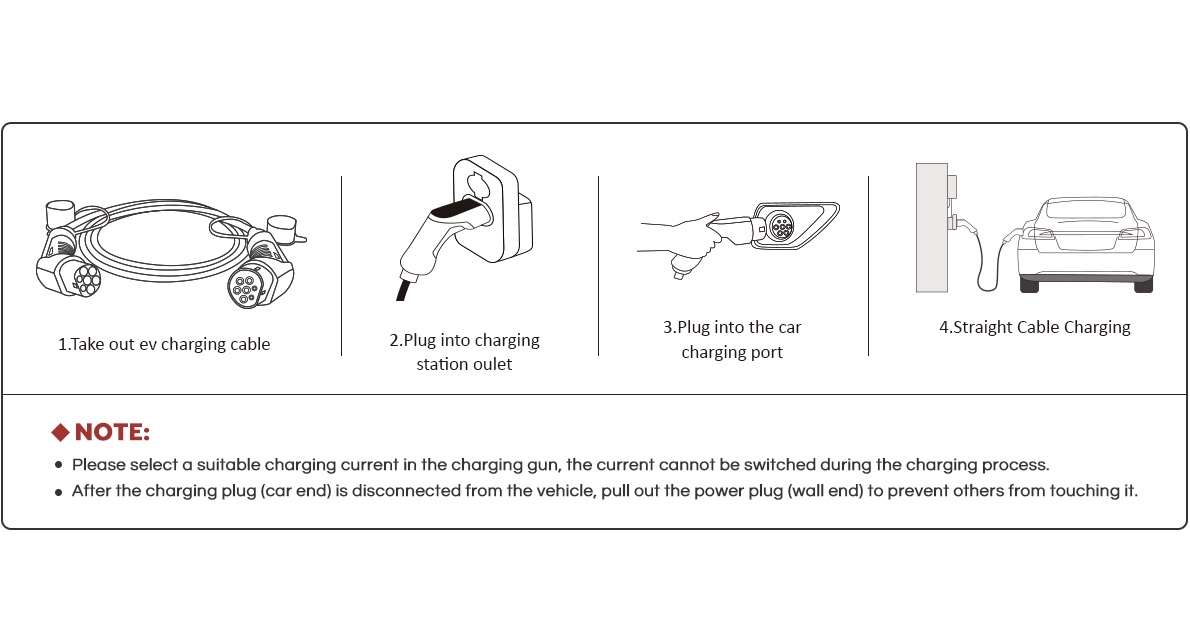

Instructions for use

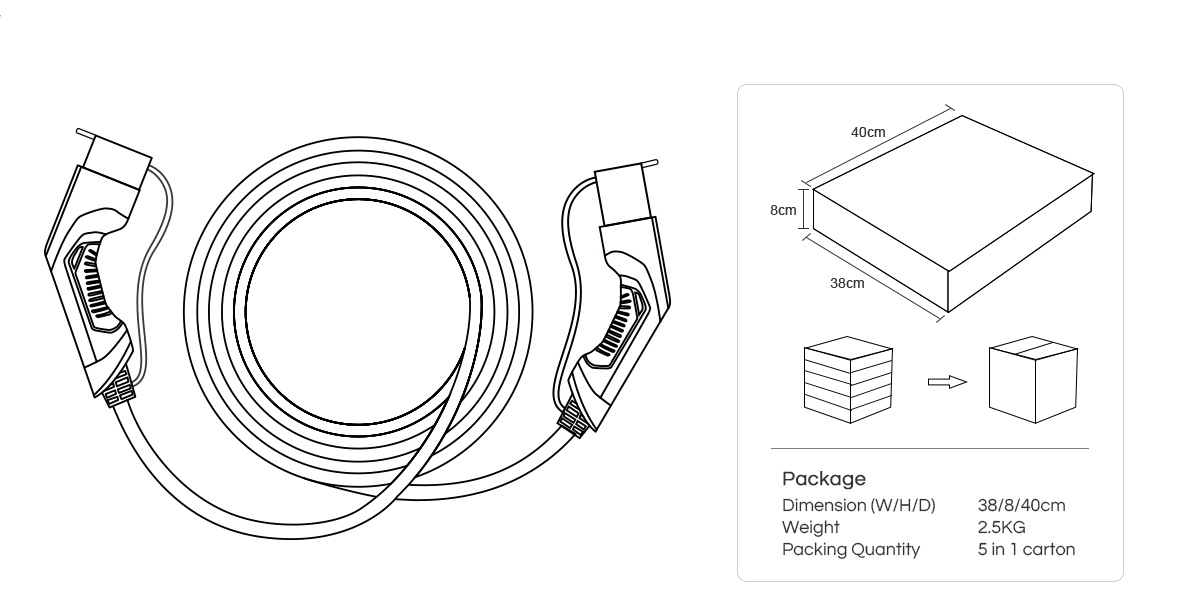

PACKAGE
