J1772 Cable 40 Amp 20ft EV Extension cable for EV Charging Stations

Release time:2022-03-24Popularity:122

EV Charging Gun Overview

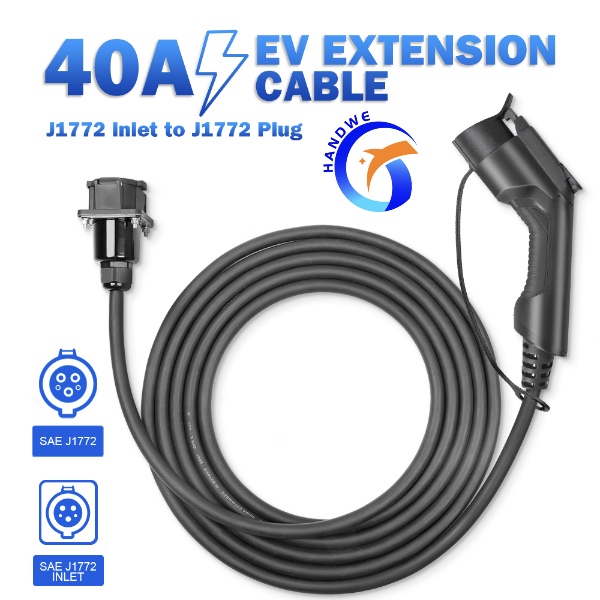

40A EV extension cable J1772 Inlet to J1772 Plug.jpg

EV Charging Gun another name Mode 3 EV charging cable types. Mainly for Europe market, it needs to be used with a Mode A EV charger. It mainly have two types, Type 1 to Type 2 and Type 2 to Type 2. The cable can be straight or spring. EV charging gun specifications, generally the length is 5m by default. It passed CE, TUV, CCC, ROHS etc certifications. Handwe EV Charging Gun are safe with reliable quality and perfect performance.

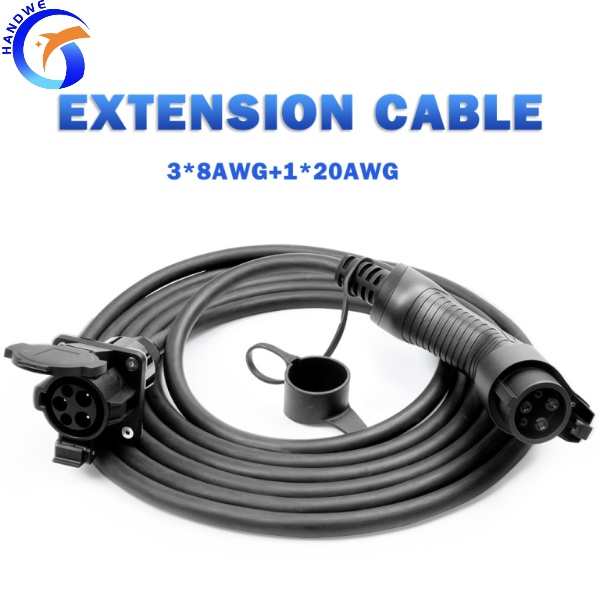

3x8awg 1x20awg.jpg

J1772 Cable 40 Amp 20ft EV Extension Cord for EV Charging Stations

Products Model:HW1T140A0

Working Current: 40A

Working Voltage: 250V AC

Certificates: CE,UL

Cable Length: Free End, 3m(9.8ft), 5m(16.4ft) Or Customized


Technical Data

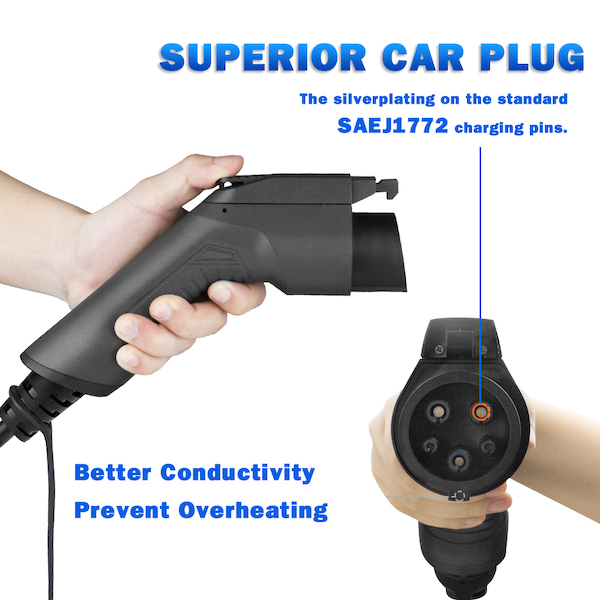

charging pins.jpeg

Rated current:  40A

Working voltage:  250V AC

Insulation resistance:  >500M Ω

Terminal temperature rise:  <50K

Withstand voltage:  2500V

Contact impedance:  0.5m Ω Max

Mechanical life:  plug in/out > 20000 times

Waterproof Protection degree:  IP67

Maximum altitude:  <2000m

Environment temperature:   -40℃ ~ +75℃

Relative humidity:  0-95% non-condensing

Standby power consumption:  <8W

Cable Sheath material:  TPU/TPE 3*8AWG+1*20AWG

Cable Length:  5m or customize

Shell Material:  Thermo Plastic ( Insulator inflammability UL94 VO)

Contact Pin:  Copper alloy, silver or nickel plating

Sealing gasket:  rubber or silicon rubber

Certificate:  TUV UL CE FCC ROHS IK10 CCC

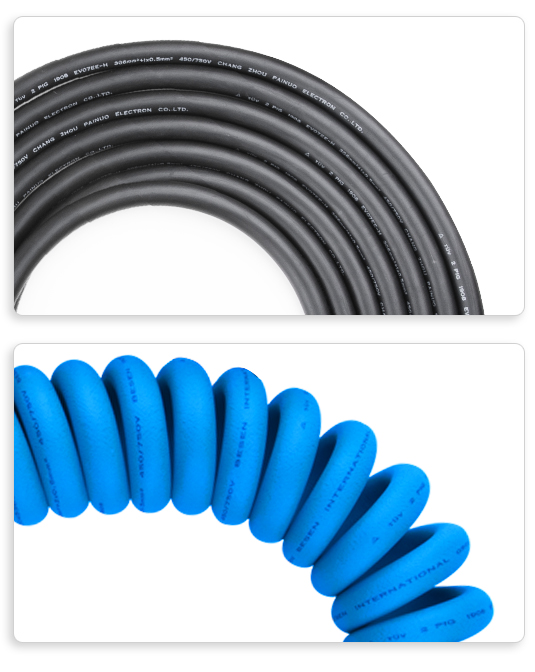

ev charging cable.jpeg

TPU CABLE

Stronger and anti-aging

Meet the newest EN standard

More environmentally friendly, halogen-free

More resistant to cold and keep flexible at -40℃

More resistant to bending and longer service life

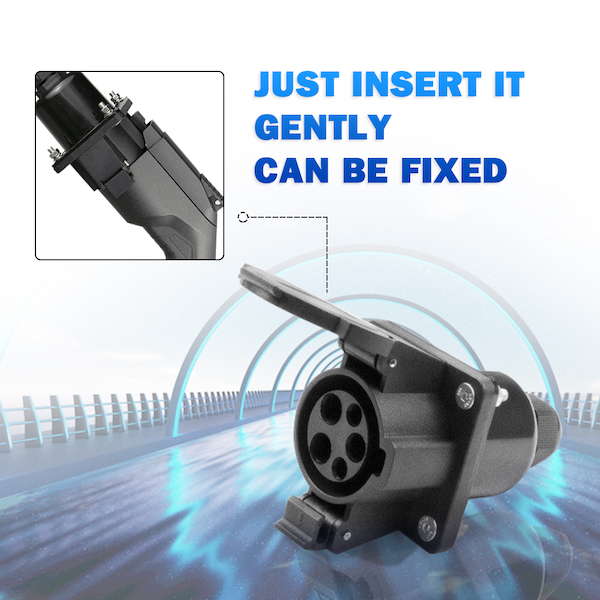

fix instruction.jpeg

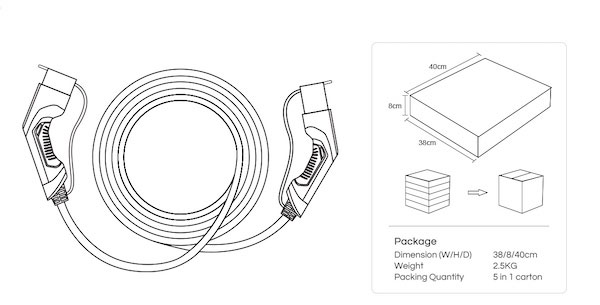

Package

charging plug package.jpg
