Type1 socket Inlet 16A 32A EV Plug for EV charger

Release time:2022-04-15Popularity:122

Type1 socket Inlet 16A 32A EV Plug for EV charger.jpg

Type 1 connector is also called SAE J1772 connector (SAE J1772 , also known as a J1772 plug, is a North American standard for electrical connectors for electric vehicles maintained by the SAE International ) which features a five-pin connection at ends.

HANDWE 's connector features silver platings that provide excellent conductivity and can prevent overheating.

The Type 1 connectors include plug, inlet, dummy socket, etc.

Adaptation current is mainly divided into 16A, 32A, 40A.

Adaptation voltage ranges from 110V to 240V (±10%)

Type1 charging socket.jpg

● Model: HWCS0116,HWCS0132

● Rated current: 16A/32A

● Working voltage: 120V~250V AC

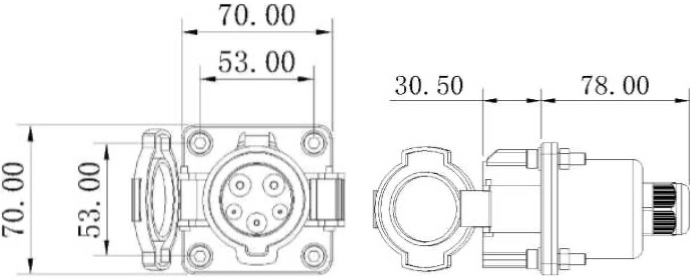

type1 socket drawing.jpg

Parameters

● Model: HWCS0116,HWCS0132

● Rated current: 16A/32A

● Working voltage: 120V~250V AC

● Insulation resistance: > 1000M Ω

● Terminal temperature rise: <50K

● Vibration resistance: Meet JDQ 53.3 requirements

● Withstand voltage: 2000V

● Contact impedance: 0.5m Ω Max

● Working temperature: -30°C ~+ 50°C

type1 socket.jpg

Materials

● Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

● Contact Pin: Copper alloy, silver or nickel plating

● Sealing gasket: rubber or silicon rubber

type1 inlet socket related.jpeg
