Type 2 IEC 62196-2 Male plug 16A 32A EV Plug for EV charger

Release time:2022-04-15Popularity:518

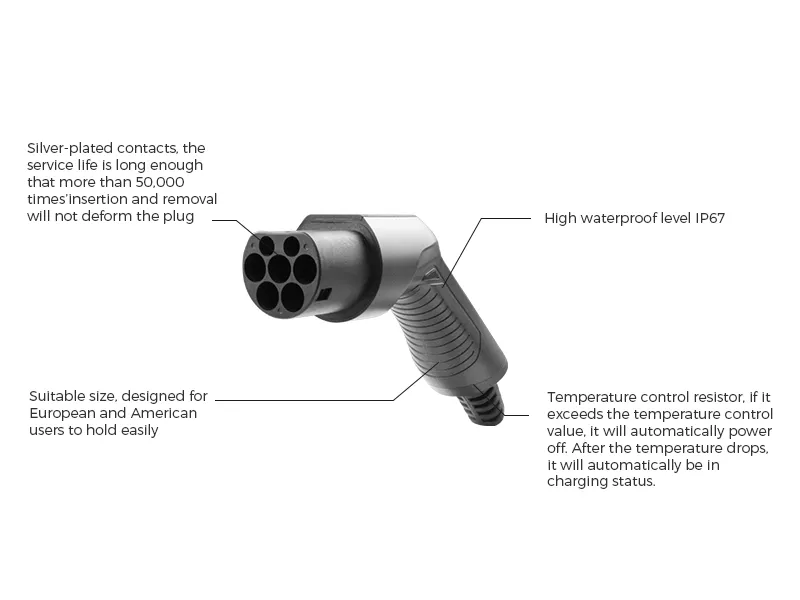

Type 2 IEC 62196-2 Male plug 16A 32A EV Plug for EV charger.jpg

Type 2 connector is also called IEC 62196-2 or European standard type. Which features a seven-pin connection at ends.

The products include plug, outlet, inlet, dummy socket, electromagnetic lock, etc.

Adaptation current of Type 2 connector is mainly divided into 16A, 32A.

Adaptation voltage ranges from 220V to 400V (±10%).

Unlike other standards, there is a distinction between single-phase and three-phase. Besides, the advantage of Type 2 connector is that it is adapted to the majority of 100% electric or rechargeable hybrid vehicles.

Type 2 IEC 62196-2 Male plug 16A 32A EV Plug for EV charger

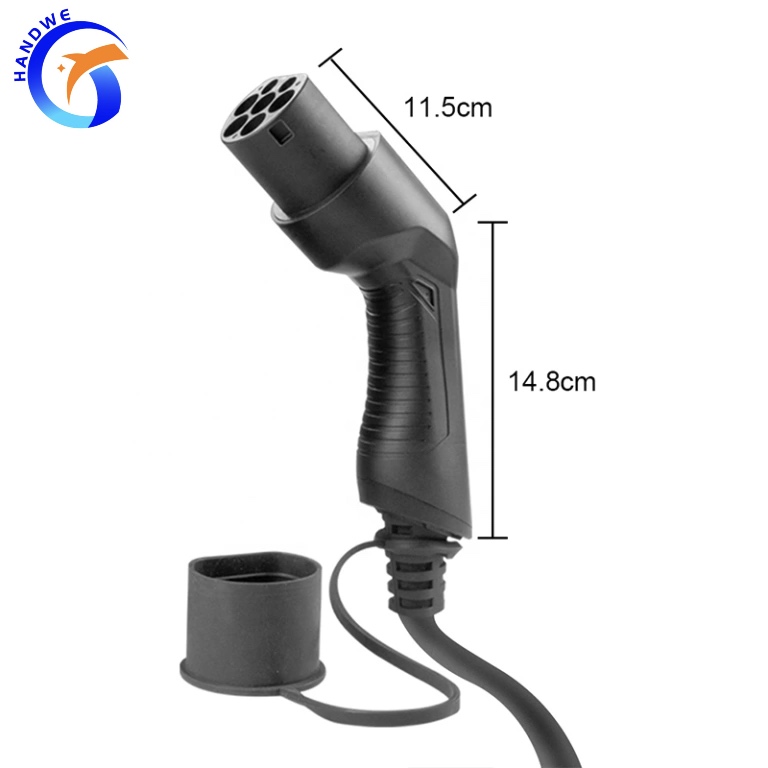

Type 2 male plug.jpg

Products Model: HWCPM0216,HWCPM0232

  • Working Voltage: 240V AC

  • Certificates: CE,UL

  • Cable Length: Free End, 3m(9.8ft), 5m(16.4ft) Or Customized

Type 2 male plug drawing.jpg

Parameters

● Model: HWCPM0216,HWCPM0232

● Rated current: 16A,32A

● Working voltage: 240V AC

● Insulation resistance: > 1000M Ω

● Terminal temperature rise: <50K

● Withstand voltage: 2000V

● Contact impedance: 0.5m Ω Max

● Vibration resistance: Meet JDQ 53.3 requirements

● Working temperature: -30°C ~+ 50°C

● CE approved


Materials

● Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

● Contact Pin: Copper alloy, silver or nickel plating

● Sealing gasket: rubber or silicon rubber

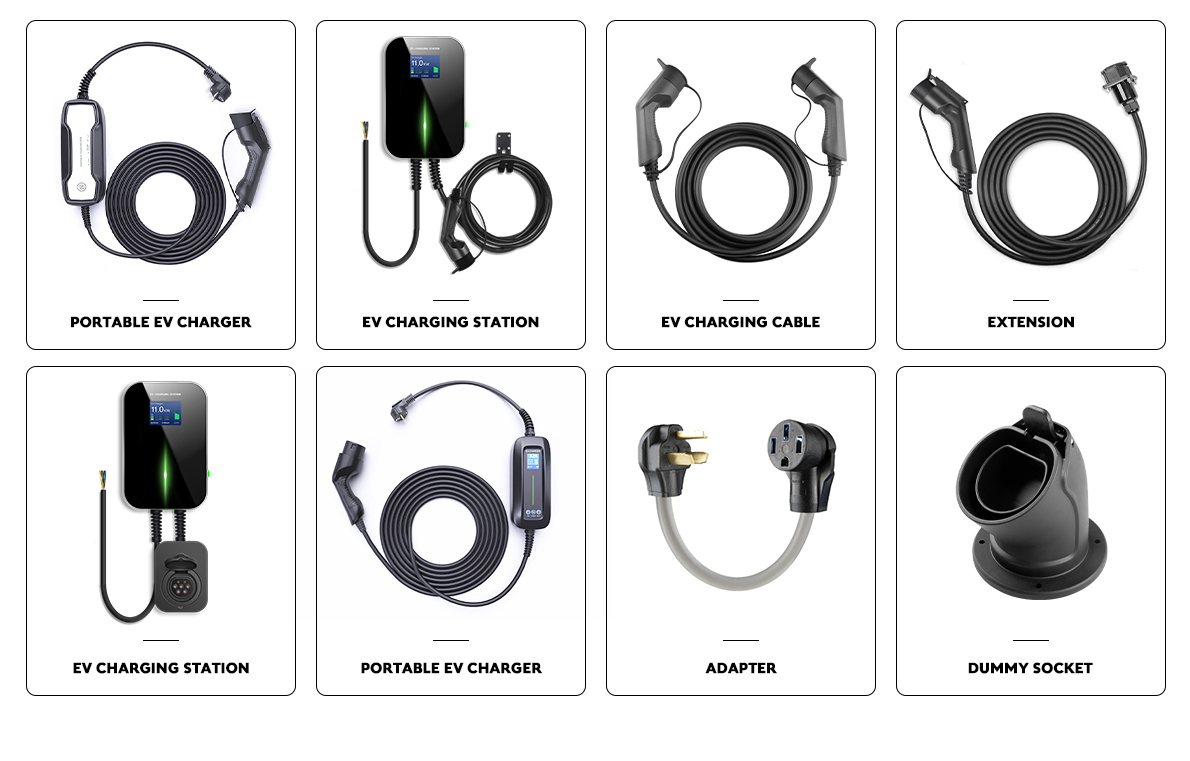

Type 2 male plug related products.jpeg
