16A/32A/40A/50A Type1 SAE J1772 EV Plug

Release time:2022-04-15Popularity:183

EV Charger Plug for Car Side.jpg

Type 1 connector is also called SAE J1772 connector (SAE J1772 , also known as a J1772 plug, is a North American standard for electrical connectors for electric vehicles maintained by the SAE International ) which features a five-pin connection at ends.

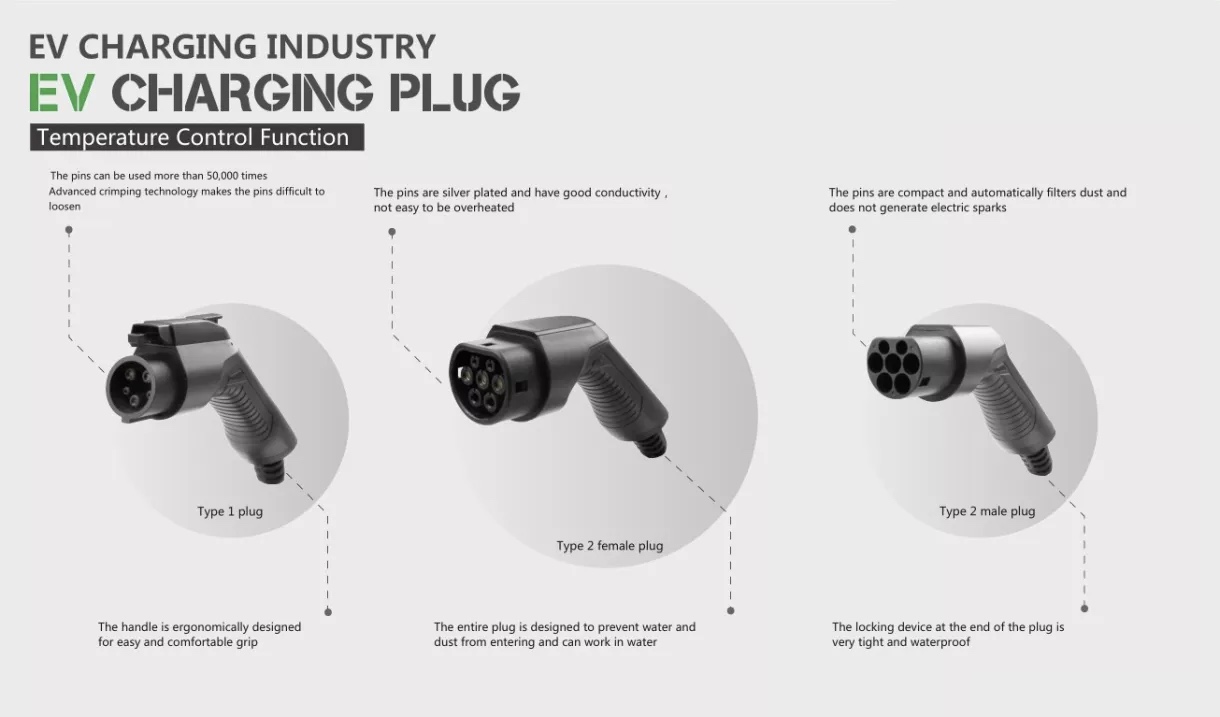

HANDWE 's connector features silver platings that provide excellent conductivity and can prevent overheating.

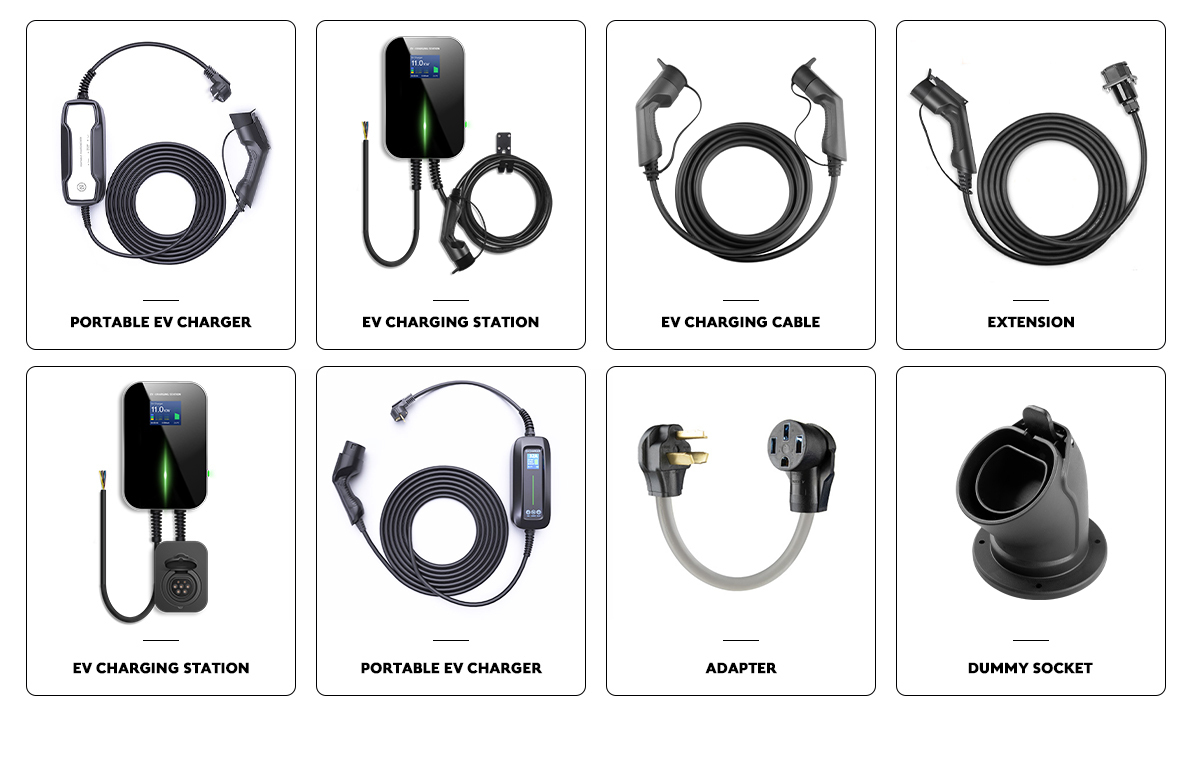

The Type 1 connectors include plug, inlet, dummy socket, etc.

Adaptation current is mainly divided into 16A, 32A, 40A.

Adaptation voltage ranges from 110V to 240V (±10%).

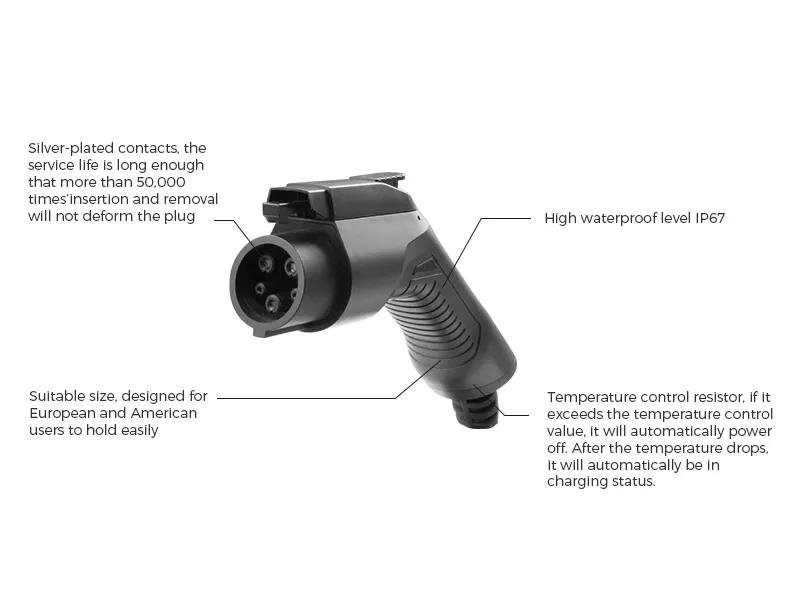

16A/32A/40A/50A Type1 SAE J1772 EV Plug.jpg

Type1 SAE J1772(16A/32A/40A/50A)EV Plug for EV charger

Products Model: HWCP0116,HWCP0132,HWCP0140,HWCP0150

  • Adaptation current:16A/32A/40A/50A

  • Working Voltage: 240V AC

  • Certificates: CE,UL

  • Cable Length: Free End, 3m(9.8ft), 5m(16.4ft) Or Customized

type1 plug technical drawing.png

Model: HWCP0116,HWCP0132,HWCP0140,HWCP0150

Rated current: 16A/32A/40A/50A

Working voltage: 120V~250V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C


Materials

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber

Type1 SAE J1772 EV Plug.jpeg
