J1772 and CCS1 EV charging cable

Release time:2022-05-04Popularity:95

Handwe J1772 and CCS1 EV charging cable

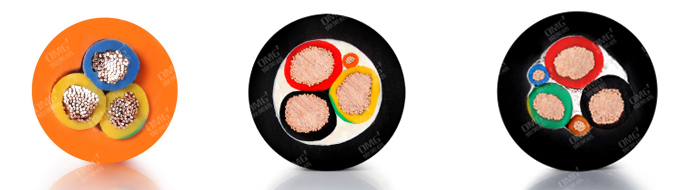

J1772 charging cable.jpeg

How do we choose the charging cables size as we need?

1. The charging pile is divided into single-phase and three-phase. No matter whether it is two-phase or single-phase, it must first be converted to the AC incoming current.

(1) For single-phase charging pile (AC charging pile) I=P/U

(2) For three-phase charging piles (DC charging piles) I=P/(U*1.732)

After calculating the current in this way, select the cable according to the current size.

2. Cable selection can be related to manuals or regulations such as:

(1) The single-phase charging pile is generally 7KW (AC charging pile) I=P/U=7000/220=32A, and a 4 square millimeter copper core cable should be used.

(2) Three-phase charging pile (DC pile)

15KW current 23A cable 4 square mm

30KW current 46A cable 10 square mm

60KW current 92A cable 25mm²

90KW current 120A cable 35 square mm

All charging piles should have neutral and ground wires. Therefore, a three-core cable is required for single-phase, and a five-core cable is required for three-phase.

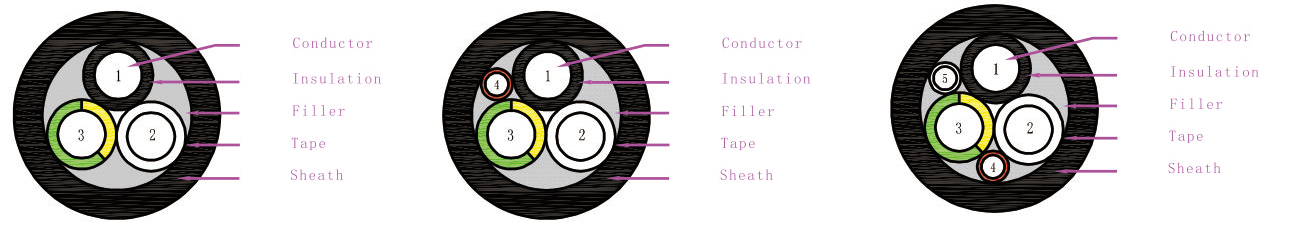

CCS1 charging cable.png


Construction Features
 1.Conductor Rated temperature:-40℃~105℃
 Material: Bare Copper Rated Voltage:300V;600V or 1000V
 2.Insulation Flame Test: VW-1 Test method Comply with UL 2556
 Material: TPE or PVC Min: Bending Radius: ≥5*OD
 colour:Black,White,Green/Yellow Dielectric Voltage: 1.5kVac/1min. No Breakdown Test method Comply with UL 2556
 3.Filler Cold Bending:-40℃/4h No cracks Test method Comply with UL 2556
 Material: PP Cord Hot Shock:150℃/1h No cracks Test method Comply with UL 2556
 4.Tape Oil Resistance:IRM902, 60℃/168h Tensile and Elongation ≥70%  Unaged value
 Material:Non-woven fabrics Crush Resistance:S≤12AWG  4.45kN, 12AWG<S≤2AWG, 11.1kN,  2AWG<S 15.6kN
 5.Sheath Weather Resistance:720hin a xenon arc weatherometer,  No cracks
 Material: TPE or PVC Environmental Requirements:Compliant with RoHS 2.0 and REACH
 Color: Black or Orange(customizable)

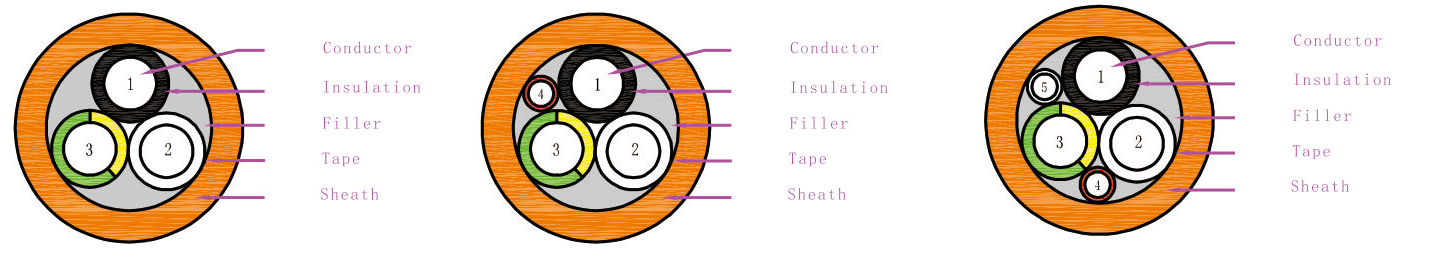

J1772 and CCS1 EV charging cable.png


Product number

specification



Conductor twisted outer diameter



Conductor resistance



Reference allowable current



Complete outer diameter



Cable packaging









600V or 1000V

EVE(TPE)

EVT(PVC)

3×16AWG

1.5/1.2

14.1

12A

10.8±0.5

1000m/700#

3×14AWG

1.9/1.2

8.88

16A

11.8±0.5

800m/700#

3×12AWG

2.4/1.2

5.58

23A

14.3±0.5

500m/700#

3×10AWG

3.0/1.2

3.51

32A

15.6±0.5

500m/700#

2×8AWG+10AWG

4.3/3.0

2.23/3.51

48A

20.9±0.8

500m/950#

2×6AWG+8AWG

5.4/4.3

1.40/2.23

63A

23.4±0.8

400m/950#

2×4AWG+6AWG

6.6/5.4

0.882/1.4

75A

27.0±0.9

300m/950#

2×2AWG+4AWG

8.2/6.6

0.555/0.882

100A

30.5±1.0

400m/1200#

3×16AWG+1×18AWG

1.5/1.2

14.1/22.4

12A

11.4±0.5

800m/700#

3×14AWG+1×18AWG

1.9/1.2

8.88/22.4

16A

13.5±0.5

500m/700#

3×12AWG+1×18AWG

2.4/1.2

5.58/22.4

23A

14.5±0.5

500m/700#

3×10AWG+1×18AWG

3.0/1.2

3.51/22.4

32A

15.8±0.6

500m/700#

2×8AWG+10AWG+18AWG

4.3/3.0

2.23/3.51/22.4

48A

20.9±0.8

500m/950#

2×6AWG+8AWG+18AWG

5.4/4.3

1.40/2.23/22.4

63A

23.4±0.8

400m/950#

2×4AWG+6AWG+18AWG

6.6/5.4

0.882/1.4/22.4

75A

27.0±0.9

300m/950#

2×2AWG+4AWG+18AWG

8.2/6.6

0.555/0.882/22.4

100A

30.5±1.0

400m/1200#

3×16AWG+2×18AWG

1.5/1.2

3.51/22.4

12A

12.2±0.5

500m/700#

3×14AWG+2×18AWG

1.9/1.2

8.88/22.4

16A

14.1±0.5

500m/700#

3×12AWG+2×18AWG

2.4/1.2

5.58/22.4

23A

15.1±0.6

500m/700#

3×10AWG+2×18AWG

3.0/1.2

3.51/22.4

32A

15.8±0.6

500m/700#

2×8AWG+10AWG+2×18AWG

4.3/3.0

2.23/3.51

48A

20.9±0.8

500m/950#

2×6AWG+8AWG+2×18AWG

5.4/4.3

1.40/2.23

63A

23.4±0.8

400m/950#

2×4AWG+6AWG+2×18AWG

6.6/5.4

0.882/1.4

75A

27.0±0.9

300m/950#

2×2AWG+4AWG+2×18AWG

8.2/6.6

0.555/0.882

100A

30.5±1.0

400m/1200#

2×1/0AWG+2AWG

10.5/8.2

0.349/0.555

200A

38.0±1.0

250m/1200#

2×3/0AWG+1/0AWG

13.05/10.5

0.219/0.349

260A

45.0±1.0

150m/1200#

300V

EVJE(TPE)

EVJT(PVC)

3×16AWG

1.5/1.2

3.51/22.4

12A

9.5±0.3

1200m/700#

3×14AWG

1.9/1.2

8.88/22.4

16A

10.2±0.5

1000m/700#

3×12AWG

2.4/1.2

5.58/22.4

23A

11.4±0.5

800m/700#

3×16AWG+1×18AWG

1.5/1.2

3.51/22.4

12A

10.5±0.5

1000m/700#

3×14AWG+1×18AWG

1.9/1.2

8.88/22.4

16A

11.1±0.5

80m/700#

3×12AWG+1×18AWG

2.4/1.2

5.58/22.4

23A

12.2±0.5

500m/700#

3×16AWG+2×18AWG

1.5/1.2

3.51/22.4

12A

11.3±0.5

800m/700#

3×14AWG+2×18AWG

1.9/1.2

8.88/22.4

16A

12.0±0.5

800m/700#

3×12AWG+2×18AWG

2.4/1.2

5.58/22.4

23A

13.1±0.5

500m/700#

The number of signal wires can be 0~6, or more, the signal wire conductor specifications can be 16AWG, 18AWG, 20AWG, 22AWG.
