IEC62893 CCS2 EV DC fast charing cable

Release time:2022-05-04Popularity:152

IEC62893 CCS2 EV DC fast charing cable

CCS2 EV DC fast charing cable.jpg

How do we choose the charging cables size as we need?

1. The charging pile is divided into single-phase and three-phase. No matter whether it is two-phase or single-phase, it must first be converted to the AC incoming current.

(1) For single-phase charging pile (AC charging pile) I=P/U

(2) For three-phase charging piles (DC charging piles) I=P/(U*1.732)

After calculating the current in this way, select the cable according to the current size.

2. Cable selection can be related to manuals or regulations such as:

(1) The single-phase charging pile is generally 7KW (AC charging pile) I=P/U=7000/220=32A, and a 4 square millimeter copper core cable should be used.

(2) Three-phase charging pile (DC pile)

15KW current 23A cable 4 square mm

30KW current 46A cable 10 square mm

60KW current 92A cable 25mm²

90KW current 120A cable 35 square mm

All charging piles should have neutral and ground wires. Therefore, a three-core cable is required for single-phase, and a five-core cable is required for three-phase.

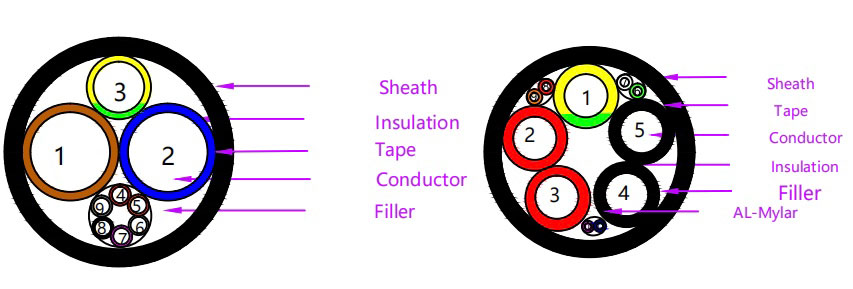

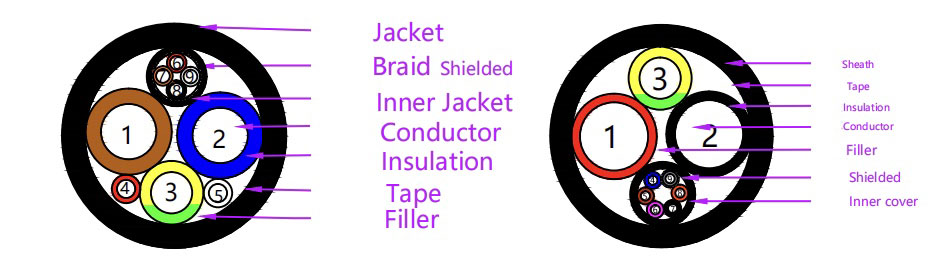

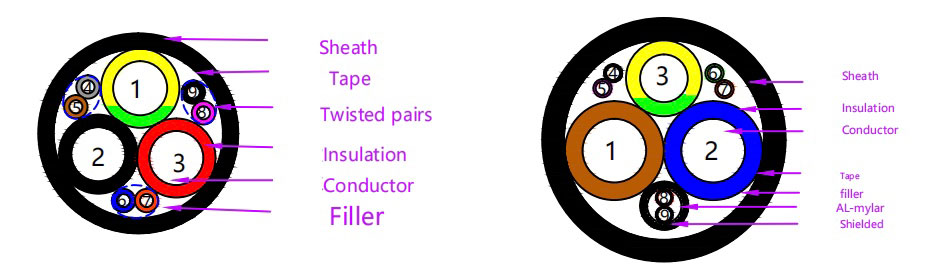

CCS2 DC charing cable.jpg

TUV certified IEC62893 CCS2 EV DC fast charing cable

Reference Standard :IEC62893-4-1:2020

Conductor: bare copper

Color: Yellow/Green,Blue,Brown、Black、Gray

Filler: PP or cotton yarn

Tape:Non-woven fabric

Sheath:TPU

Color:  Any color

Rated temperature: -40℃~90℃

Rated Voltage: DC1500V

Flame Test: Testing method according to EN60332-1-2

Min:Bending Radius: ≥6*OD

Dielectric Voltage: 2.5kVAC for main core, 2.0kV AC for CC/CP

Low temperature impact: -40℃No cracks

Hot Shock: 150℃/1h No cracks

Oil Resistance: IRM 902 100℃168h

Tensile Strength Variation: <±40%,

Elongation Variation: <±30%

Crush resistance: Sq≤4crush force ≥4KN;4≤Sq≤35 crush force≥11KN

Resistance to Acid and alkali: 168hTensile

Strength Variation: ≤30%

Elongation: ≥100%

Environmental Requirements: Compliant with RoHS2.0 and REACH


CCS2 DC fast charing cable.jpg

Product number

Specification

Conductor twisted outer diameter

Conductor resistance

Reference allowable current

Unshielded

Complete outer diameter

cable packaging

62893 IEC 126

2×10+10+P(2×0.75)+4×0.5

4.5

1.91

40A

15.5

300m/950#

2×16+16+P(2×0.75)+4×0.5

5.7

1.21

63A

18

300m/950#

2×25+16+P(2×0.75)+4×0.5

7.1

0.78

100A

24.5

300m/950#

2×35+16+P(2×0.75)+4×0.5

8.4

0.554

125A

25.8

300m/950#

2×50+25+P(2×0.75)+4×0.5

10.2

0.386

150A/200A

30.2

400m/1200#

2×70+35+P(2×0.75)+4×0.5

12.0

0.272

200A/250A

34.7

400m/1200#

Specifications: 2-core power cable 4mm to 95mm, 1-core PE cable 4mm to 50mm, 2-core auxiliary power cable 2.5 mm to 6.0mm (optional) 0-12 core signal cable 0.5mm to 1.0mm can be added, the signal cable can be shielded or the main cable can be shielded. Specific product parameters shall be subject to the technical drawings.
