Handwe CCS 2 to CCS 1 Adapter 150A 200A

Release time:2022-05-10Popularity:164

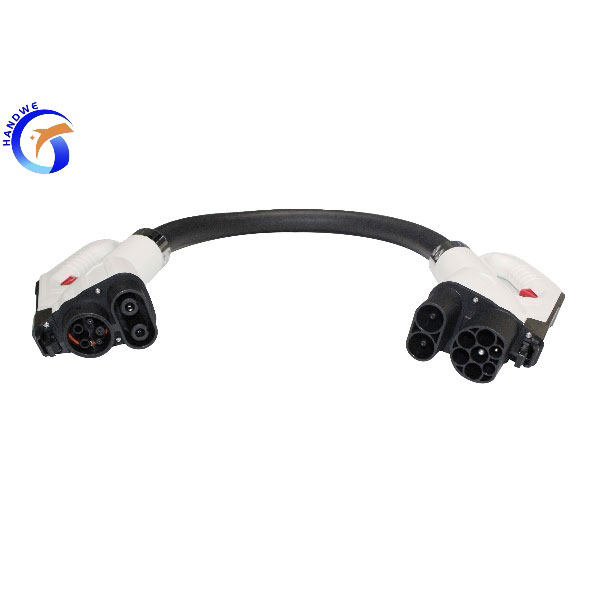

CCS 2 to CCS 1 Adapter.jpg

Why are there CCS Adapters?

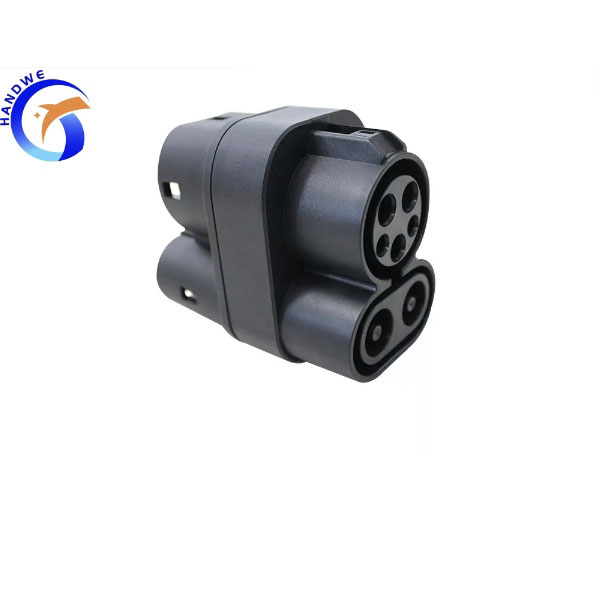

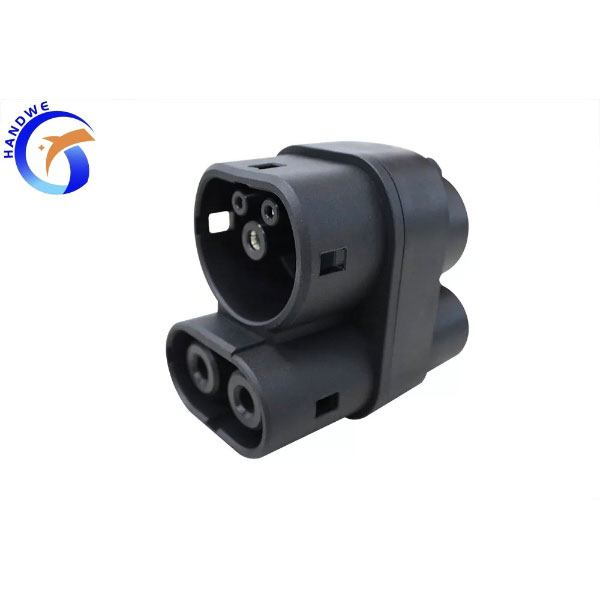

This usually happened in Mode 4 charging, Because currently there are main two standards in the world CCS Combo 1(USA) and CCS Combo 2(Europe), when our car charging inlet standard is different from our local charging station connector standard, we will encounter trouble, because they are two different ports and incompatible completely , then Handwe CCS Adapter is born to solve this problem.CCS 1 Adapter.jpgCCS 2 to CCS 1.jpg

Handwe CCS 2 to CCS 1 Adapter Feature

1. High Flexibility and Durability

Easy-bend and tough rubber are used for the cable.

2. User-friendly Design

This connector is designed to operate viscerally by having handle shape.

3. Excellent Operability

Charging is performed by only inserting a plug into a vehicle-side inlet. After charging is completed, push a button and withdraw the plug.

4. Safety Design

The connector has automated triple safety lock system which prevents the disconnection of the connector from vehicle side inlet accidentally during charging.

5. A Wide Range of Operation Temperature

It can be used under a wide range of environmental temperature from -30℃ to 50℃.

Combined Charging System (CCS SAE J1772) – (BMW, GM, VW, and other USA car makers)

Handwe CCS 2 to CCS 1 Adapter.jpg

Handwe CCS 2 to CCS 1 Adapter Technical Data

Rated Voltage; 1000V

Current: 150Amp/200Amp

DC max charging power: 150KW

AC max charging power:  41.5KW

Applied Materials

Case Material: Thermoplastic, flame retardant grade UL94 V-0

Contact bush: Copper alloy, silver plating

Product entire insertion and extraction force < 100N

Protection class: IP55

Max charging power: 150KW
